Back to Contents Page

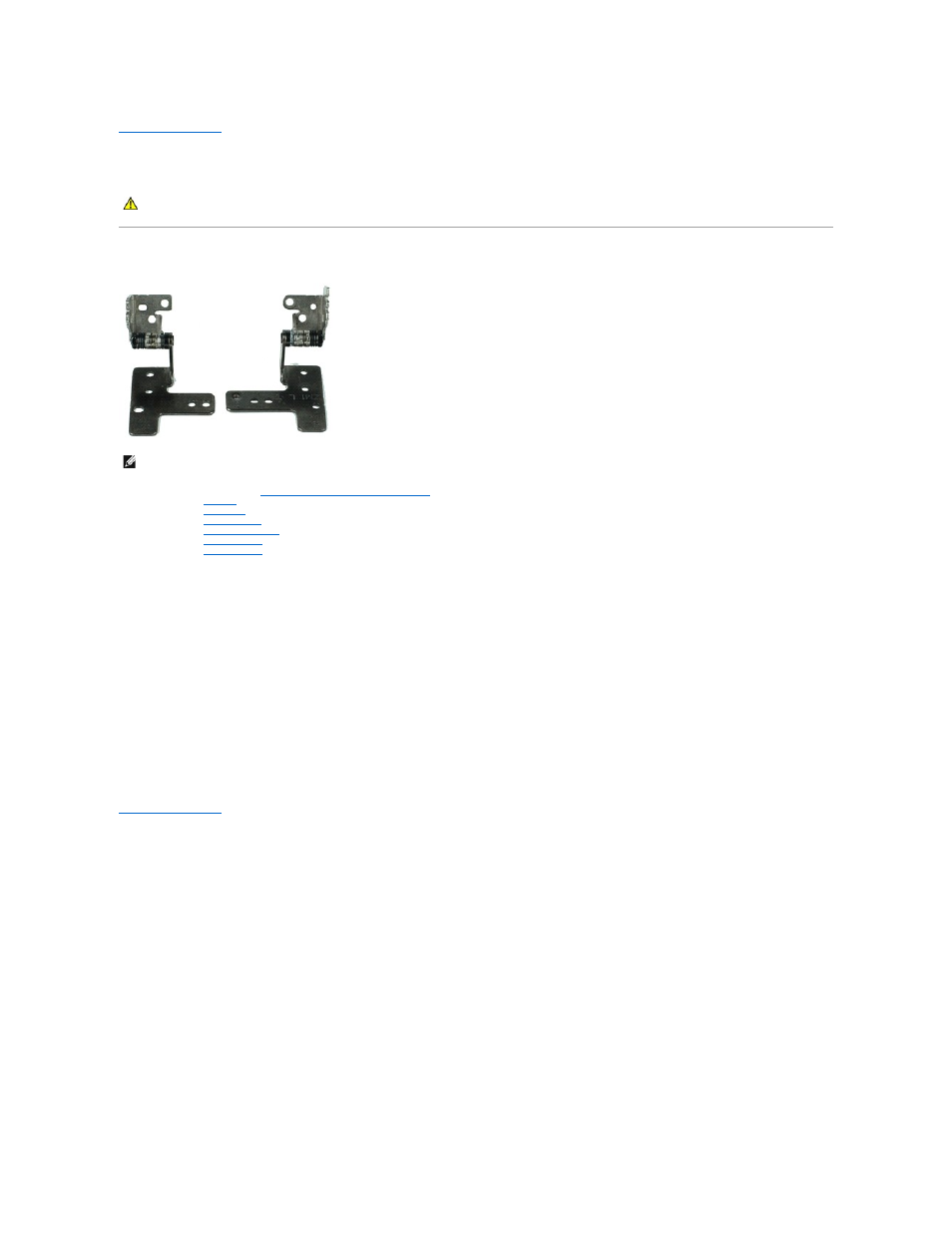

Display Hinges

Dell Latitude 2110 Service Manual

Removing the Display Hinges

1.

Follow the procedures in

Before Working Inside Your Computer

.

2.

Remove the

battery

.

3.

Remove the

keyboard

.

4.

Remove the

access panel

.

5.

Remove the

display assembly

.

6.

Remove the

display bezel

.

7.

Remove the

display panel

.

8.

Loosen the display-cable captive screw and remove the screw that secures the display hinge to the display assembly.

9.

Lift the display hinge and remove it from the display assembly.

10.

Remove the screw that secures the second display hinge.

11.

Lift the display hinge and remove it from the display assembly.

Replacing the Display Hinges

To replace the display hinges, perform the above steps in reverse order.

Back to Contents Page

WARNING:

Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

NOTE:

You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
