To replace a connector cover, orient the cover notch-side-up and snap it into
the connector cutout.
R J -1 1 /R J - 45 Bo a r d
Removing the RJ-11/RJ-45 Board
1
“Preparing to Work Inside the Computer
2
Remove the
.
3

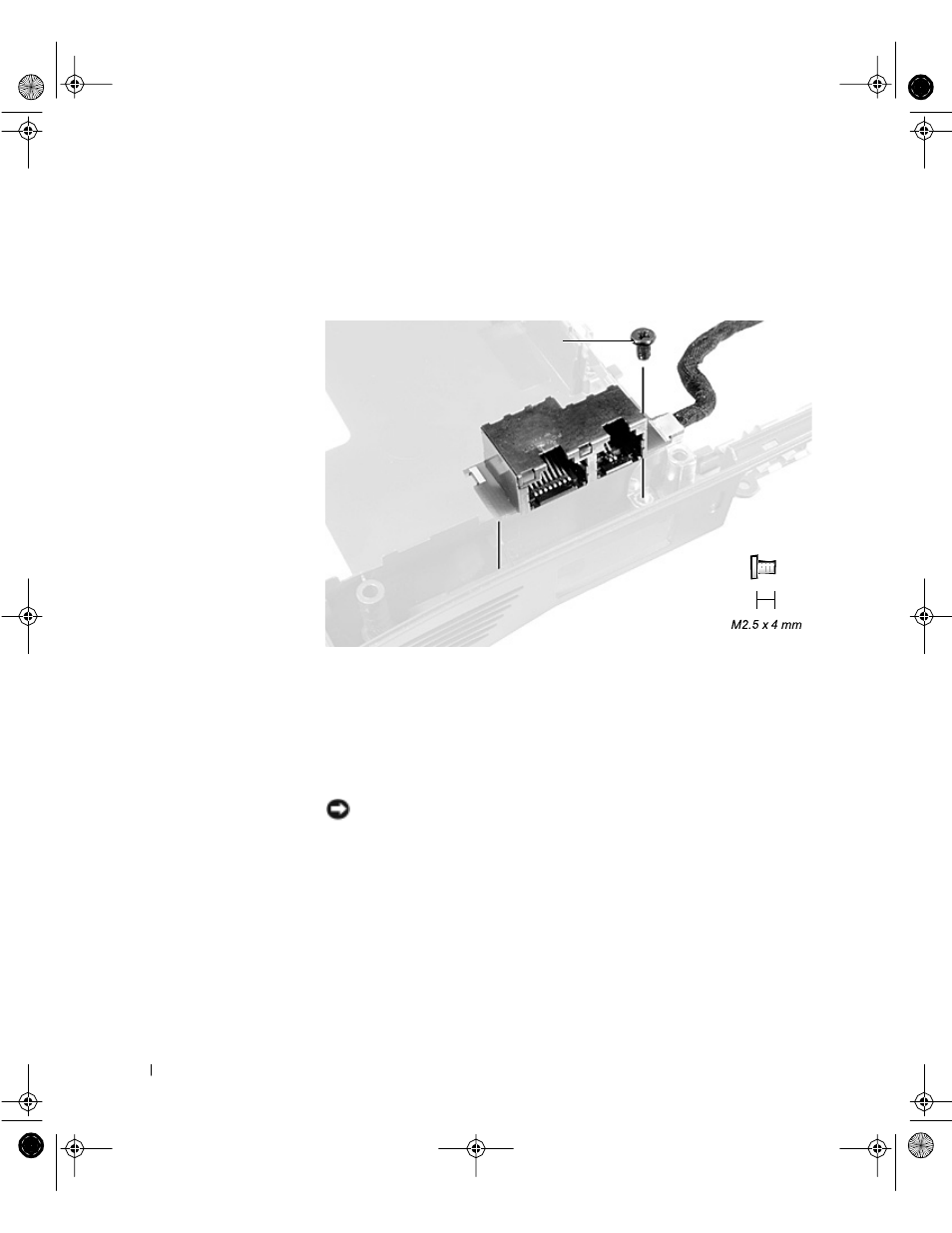

Remove the 4-mm screw from the RJ-11/RJ-45 board.
NOTICE: The plastic tab is fragile; pull it back only far enough to remove the
board assembly.
4
Reach into the enclosure and, while pulling the tall plastic tab away
from the board assembly to release it, lift out the assembly.
When replacing the RJ-11/RJ-45 board assembly, protect the wiring harness
by routing it between the plastic posts.
4-mm screw
