Replacing the LED Board
1 Align the two screw holes with the two mounting holes on the bottom
case assembly, and press the board into its connector.
2 Replace the two 4-mm screws.
Fan Assembly
NOTICE: Disconnect the computer and attached devices from electrical
outlets and remove any installed batteries.
NOTICE: To avoid ESD, ground yourself by using a wrist grounding strap or
by periodically touching unpainted metal on the computer.
Fa n A s s e m bl y
Removing the Fan Assembly
1 Follow the instructions in “Preparing to Work Inside the Computer .”
2 Remove the system board .
3 Remove the three 4-mm screws from the fan assembly.
4 Disconnect the two fan cables from the system board.

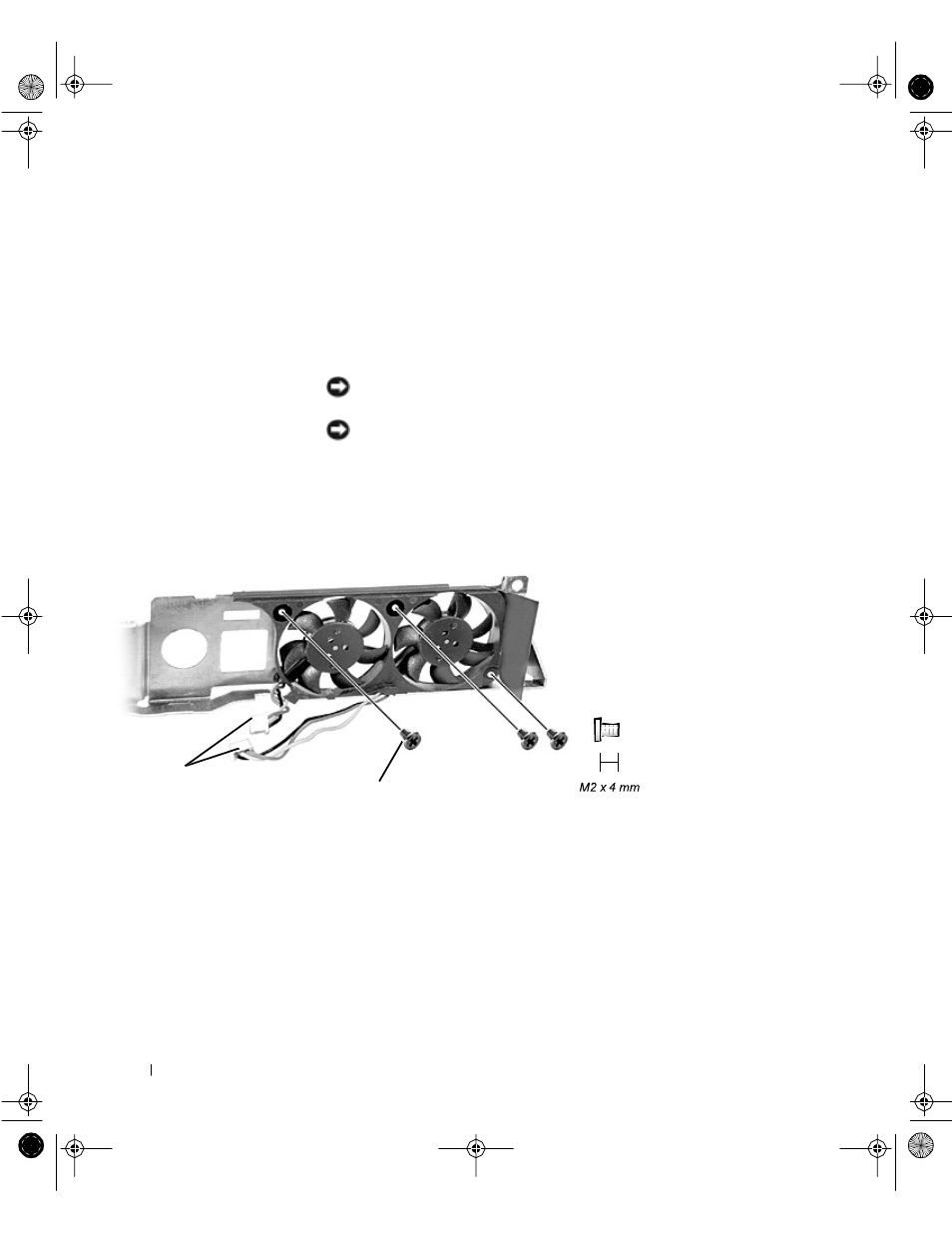

4-mm screws (3)
fan cables
