Installation Guide 9
10 Align the front mounting bracket with the screw holes on the left of the MIC card and secure
with four M3 screws. Tighten the screws to 5.21 in-lbs.
11 Align the back mounting bracket with the screw holes on the right of the MIC card and
secure with four M3 screws. Tighten the screws to 5.21 in-lbs.

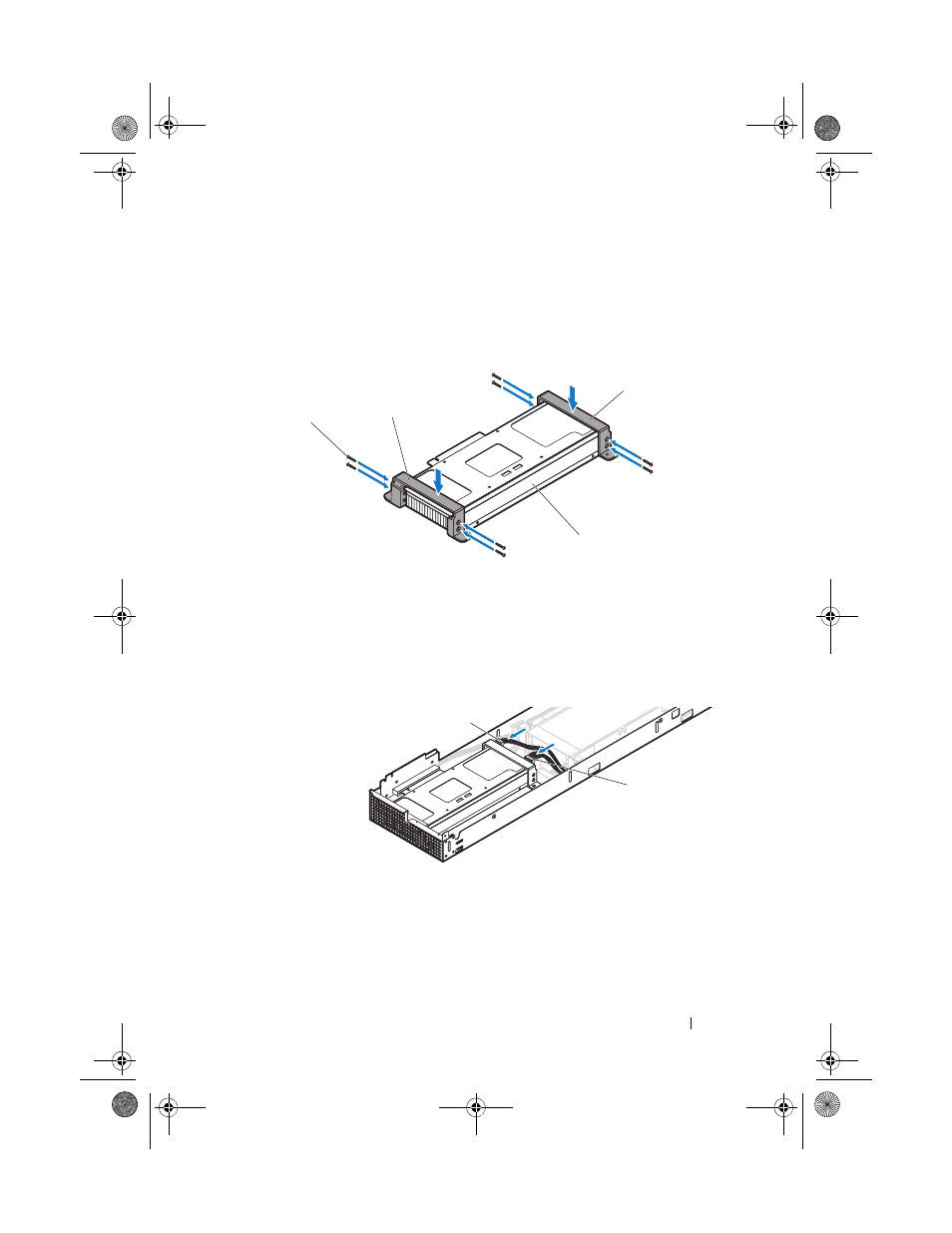

Figure 1-6. Installing the Mounting Brackets
12 Connect the power cables to the MIC card. Ensure the cables are properly attached. See
Figure 1-19 for the cable routing diagram.
Figure 1-7. Connecting the Power Cables
1 M3 screws (4) 2 front mounting bracket
3 back mounting bracket 4 MIC card
1, 2 power cables
