12 Installation Guide
4 Remove the four M3 screws securing the mounting brackets.
5 Lift the mounting brackets away from the GPGPU blank. Save the mounting brackets.
6 Lift the GPGPU blank out of the sled cover. Save the GPGPU blank for future use.
NOTE: Be careful not to damage the twin axial cable on the back GPGPU card riser
when removing the top cover.

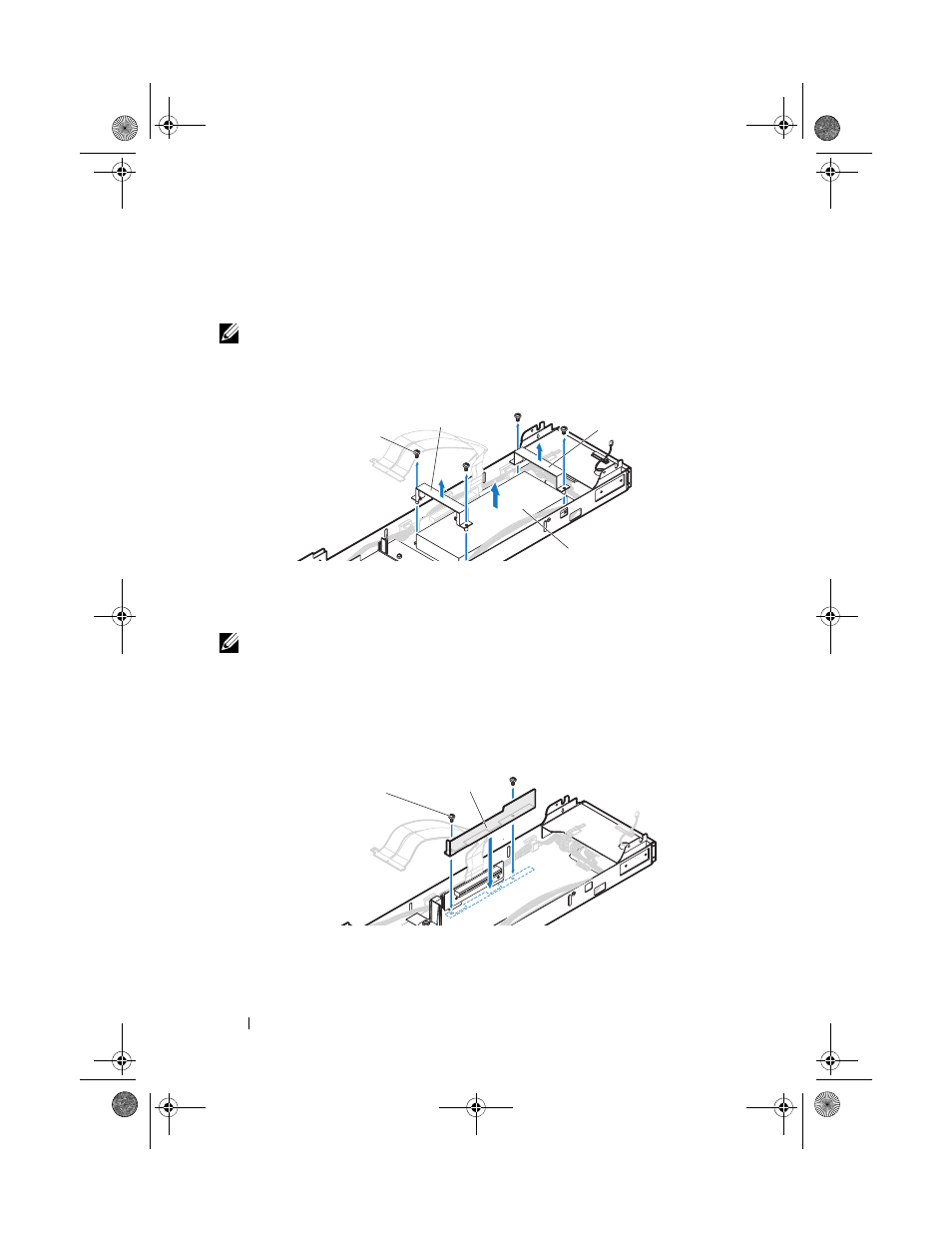

Figure 1-12. Removing the Mounting Brackets and GPGPU Blank
NOTE: Ensure that the back GPGPU card riser is secured to the sled cover using
the type A screw holes.
7 Align the right air baffle with the screw holes on the back of the sled cover.
8
Secure the right air baffle to the sled cover using the two M3 screws. Tighten the screws to
5.21 in-lb.
Figure 1-13. Installing the Right Air Baffle
1 M3 screws (4) 2 front mounting bracket
3 back mounting bracket 4 GPGPU blank
1 M3 screws (2) 2 right air baffle
1
2
3
4
1
2
