Removing The Integrated Storage Controller
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your
warranty. Read and follow the safety instructions that came with the product.
1. Turn off the system, including any attached peripherals, and disconnect the system from the electrical outlet.
2. Open the system.
3. Push down on the two tabs at the edge of the card and lift the card off the extractors.
As the card releases from the standoffs, the connector under the card disengages from the system board
connector.
4. Angle the card so that the other end of the card disengages from the storage-controller card holder on the system
board.
5. Close the system.

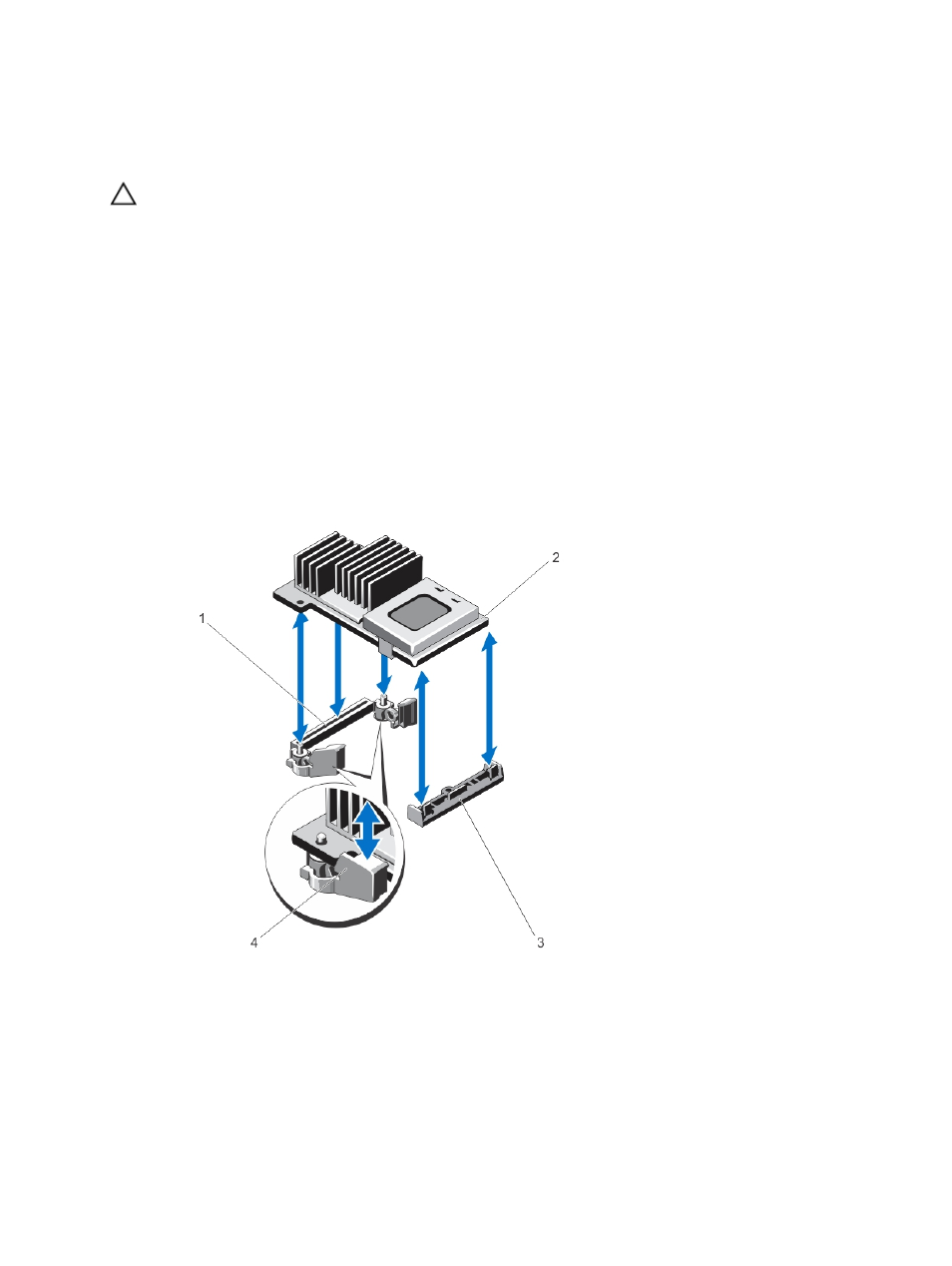

1. storage connector on the system board
2. storage controller card
3. storage-controller card holder
4. extractors (2)
