Item Indicator, Button, or
Connector
Icon Description
10 Power supply (PSU1)
AC 495 W, 750 W, or 1100 W
Or
DC 1100 W (when available)
11 Power supply (PSU2)
NIC Indicator Codes

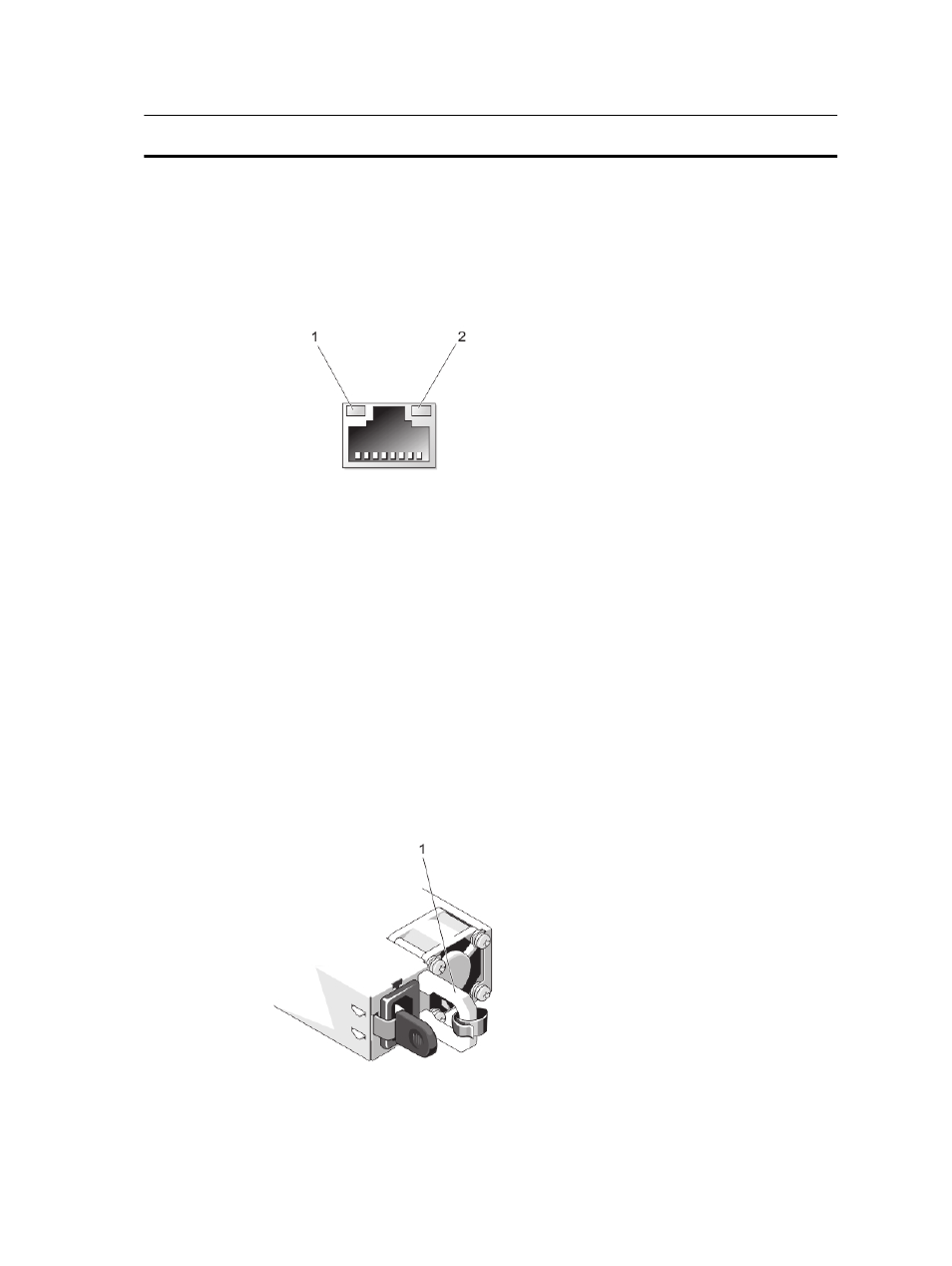

Figure 5. NIC Indicator
1. link indicator
2. activity indicator
Indicator Indicator Code
Link and activity indicators are off The NIC is not connected to the network.
Link indicator is green The NIC is connected to a valid network at its maximum port speed (1 Gbps or 10
Gbps).
Link indicator is amber The NIC is connected to a valid network at less than its maximum port speed.
Activity indicator is blinking green Network data is being sent or received.
Power Indicator Codes
Each AC power supply has an illuminated translucent handle and each DC power supply (when available) has an LED
that serves as an indicator to show whether power is present or whether a power fault has occurred.
Figure 6. AC Power Supply Status Indicator
