42 | Removing the System Board
5 Remove the screws that secure the system board to the computer base.
6 Lift the system board at an angle and release the system-board ports from the slots
on the computer base.
7 Lift the system-board assembly off the computer base.
8 Remove the hard-drive interposer board. See "Removing the Hard-Drive Interposer
Board" on page 51
9 Turn the system board over.
10 Remove the fan. See "Removing the Fan" on page 45.
11 Remove the cooling assembly. See "Removing the Cooling Assembly" on page 48.

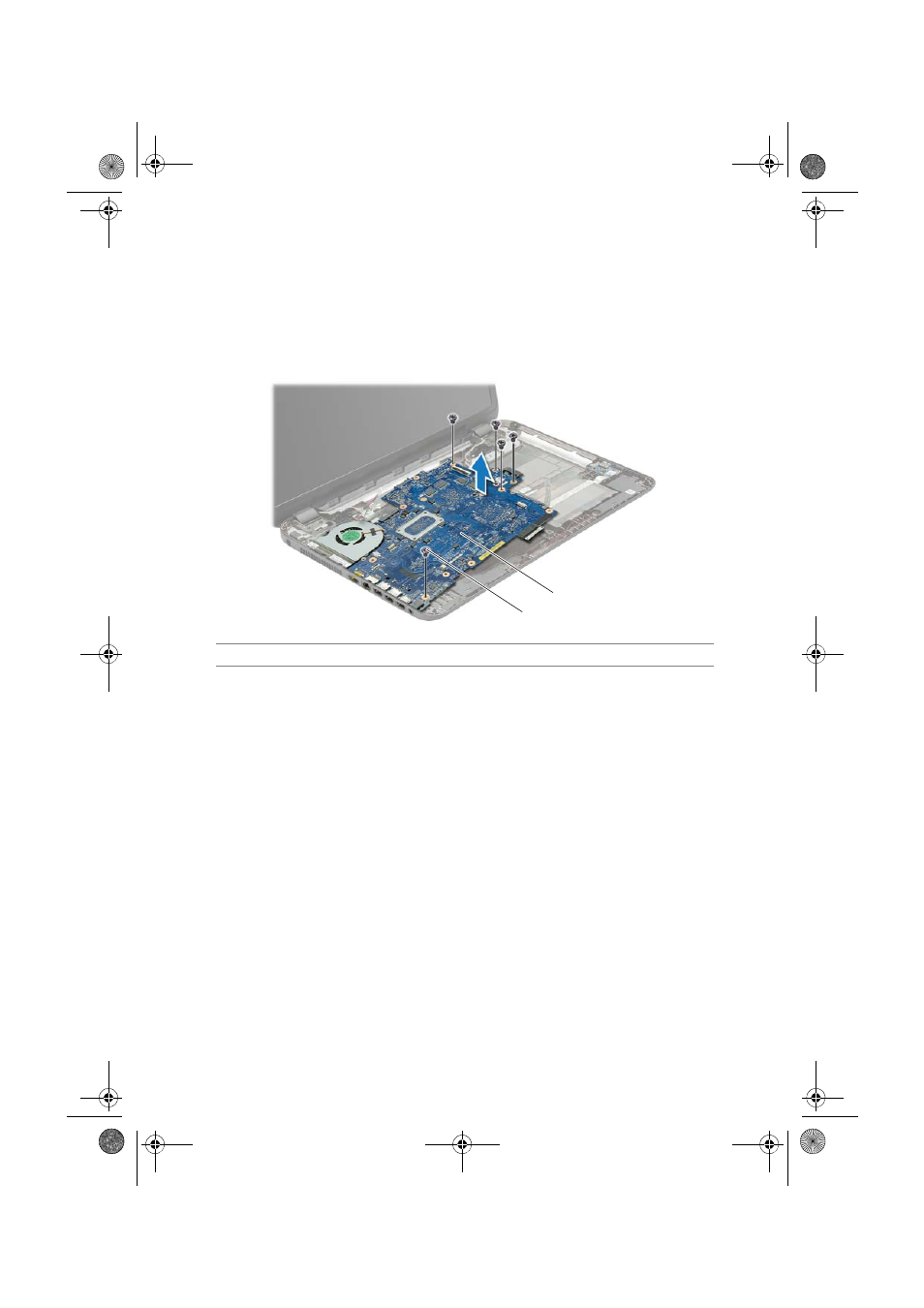

1 screws (5) 2 system board
