is pressed in Active-off mode, the following message will be displayed:

Activate the computer and the monitor to gain access to the OSD.

6

GND-R

7

GND-G

8

GND-B

9

Computer 5V/3.3V

10

GND-sync

11

GND

12

DDC data

13

H-sync

14

V-sync

15

DDC clock

DVI Connector

NOTE: This monitor is ENERGY STAR

®

-compliant.

NOTE: Zero power consumption in OFF mode can only be achieved by

disconnecting the main cable from the monitor.

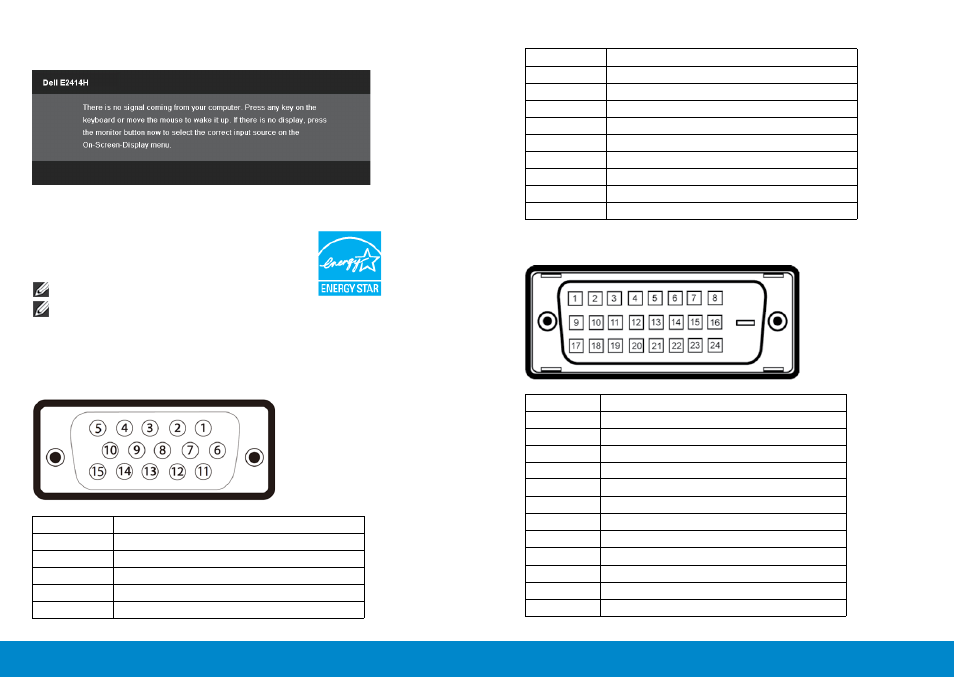

Pin Assignments

VGA Connector

Pin Number

15-pin Side of the Connected Signal Cable

1

Video-Red

2

Video-Green

3

Video-Blue

4

GND

5

Self-test

Pin Number 24-pin Side of the Connected Signal Cable
1

TMDS RX2­

2

TMDS RX2+

3

TMDS Ground

4

Floating

5

Floating

6

DDC Clock

7

DDC Data

8

Floating

9

TMDS RX1­

10

TMDS RX1+

11

TMDS Ground

12

Floating
