8
About Your Monitor
About Your Monitor
9
(comes in the CD attached with the monitor).
Back View
• Security lock slot.
• Stand lock.
• Asset Management Capability.
• Energy Star Compliant.
• EPEAT Gold Compliant.
1
• RoHS compliant.
2
• BFR/PVC- reduced.
5
• Arsenic-Free glass and Mercury Free for Panel only.
3
4
• Energy Gauge shows the energy level being consumed by the monitor in
real time.
• TCO Certified Displays.
Back view
Back view with monitor stand

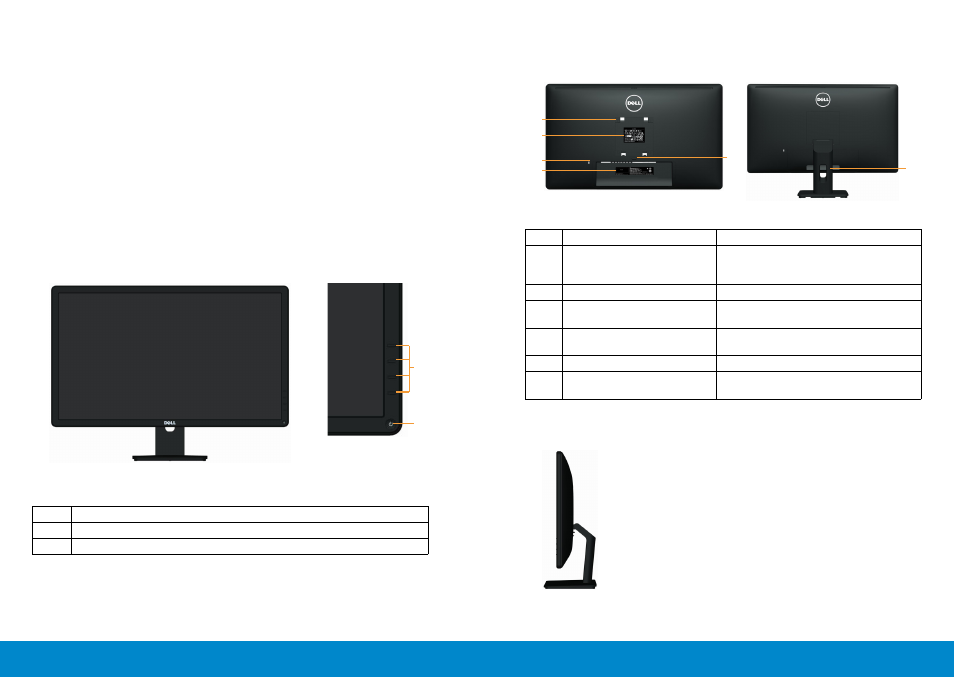

Identifying Parts and Controls
Front View
1
Label Description
Use
1
VESA mounting holes (100
mm x 100 mm - behind at
tached VESA Cover)
Wall mount monitor using VESA-com
patible wall mount kit (100 mm x 100
mm).
2
Regulatory label
Lists the regulatory approvals.
3
Security lock slot
Secures monitor with security lock.
(security lock not included)
4
Barcode serial number label Refer to this label if you need to con
tact Dell for technical support.
5
Stand release button
Release stand from monitor.
6
Cable management slot
Use to organize cables by placing
them through the slot.
2
Side View
Front View
Front panel controls
Label Description
1.
Function buttons (For more information, see Operating the Monitor)
2.
Power On/Off button (with LED indicator)
