10  About Your Monitor About Your Monitor  11

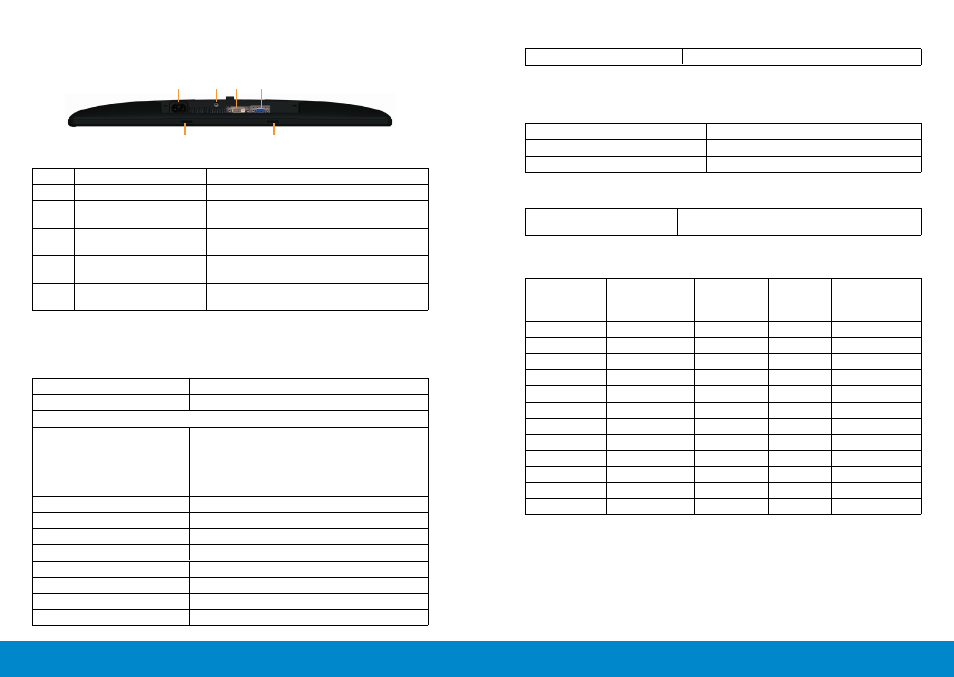

Bottom View
1 2 3 4
5 5
Bottom view
Label Description Use
1. AC power connector To connect the monitor power cable.
2. Stand lock To lock the stand to the monitor using a
M3 x 6mm screw (screw not included).
3 DVI connector To connect your computer to the moni­
tor using a DVI cable.
4 VGA connector To connect your computer to the moni­
tor using a VGA cable.
5 Dell Soundbar mounting
slots
Attaches the optional Dell Soundbar.
Monitor Specifications
Flat Panel Specifications
Screen type Active matrix - TFT LCD
Panel type TN
Viewable image
Diagonal
Horizontal Active Area
Vertical Active Area
Area
60.97 cm (24 inches)
531.36 mm (20.92 inches)
298.89 mm (11.77 inches)
158818.19 mm
2 (246.17 inch 2 )
Pixel pitch 0.277 mm
Viewing angle 160° (vertical) typ, 170° (horizontal) typ
Luminance output 250 cd/m ²(typ)
Contrast ratio 1000:1 (typ)
Faceplate coating Antiglare with hard-coating 3H
Backlight LED edgelight system
Response Time 5 ms typical
Color depth 16.7 million colors
Color gamut (Typical) 83%* (CIE1976)
*[E2414H/E2414Hr] color gamut (typical) is based on CIE1976 (83%) and
CIE1931 (72%) test standards.
Resolution Specifications
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 75 Hz (automatic)
Maximum resolution 1920 x 1080 at 60 Hz
Video Supported Modes
Video display capabilities
(DVI playback)
480p, 576p, 720p, 1080p and 1080i
Preset Display Modes
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz) Pixel
Clock
(MHz) Sync Polarity
(Horizontal/
Vertical)
720 x 400 31.5 70.0 28.3 -/+
640 x 480 31.5 60.0 25.2 -/-
640 x 480 37.5 75.0 31.5 -/­
800 x 600 37.9 60.0 40.0 +/+
800 x 600 46.9 75.0 49.5 +/+
1024 x 768 48.4 60.0 65.0 -/­
1024 x 768 60.0 75.0 78.8 +/+
1152 x 864 67.5 75.0 108.0 +/+
1280 x 1024 64.0 60.0 108.0 +/+
1280 x 1024 80.0 75.0 135.0 +/+
1600 x 900 60.0 60.0 108.0 +/­
1920 x 1080 67.5 60.0 148.5 +/+
