Height-Adjustable Stand (HAS): Dell™ W1700 LCD TV User's Guide

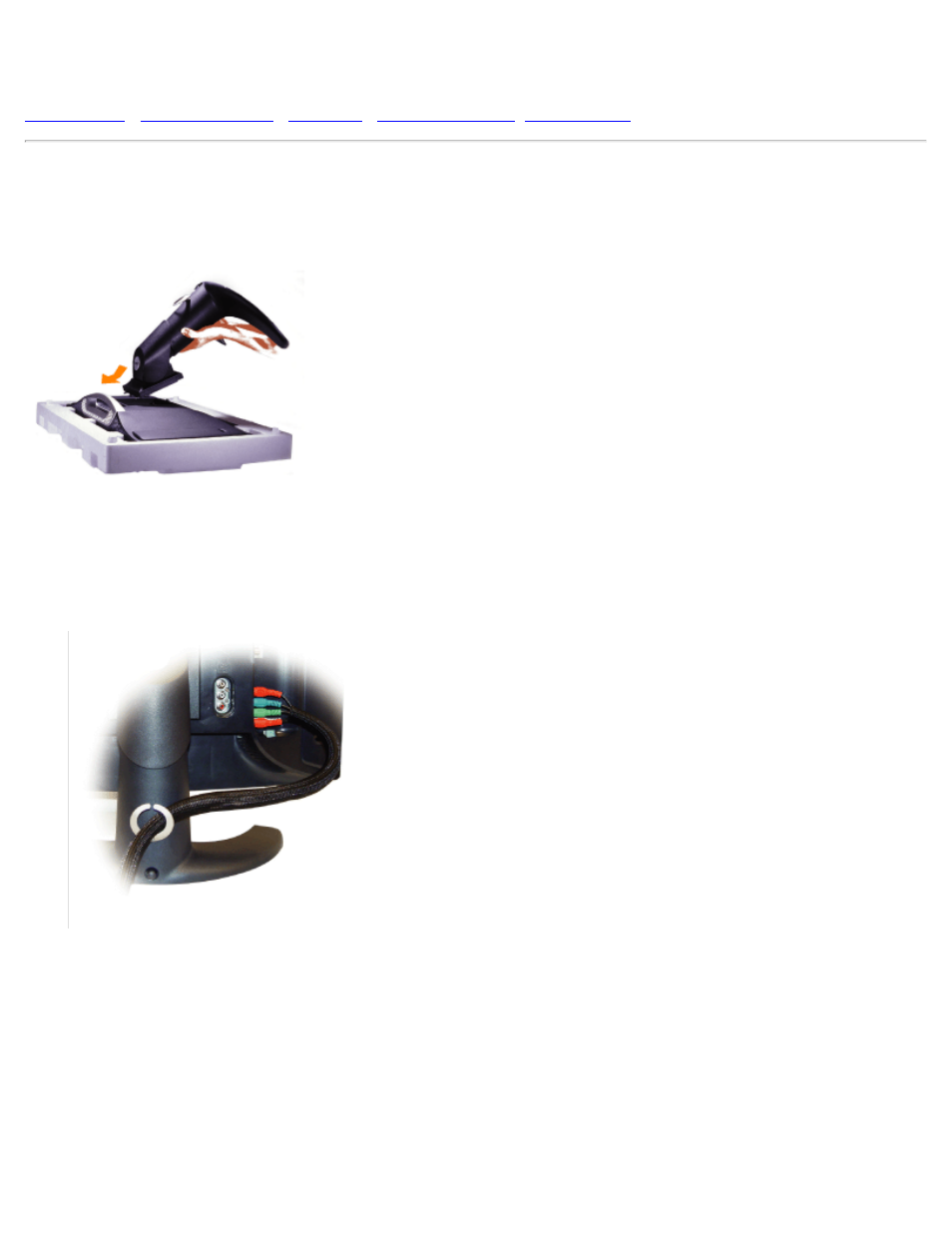

Attaching HAS

Lay LCD TV on a flat, soft, and clean surface or use the foam cushion shipped with your LCD TV. Attach stand to LCD TV by
aligning tabs on stand to the LCD TV.

Cable Management

Run all cables through the provided cable sleeve and then run the sleeve (with cables) through the cable clip in the back of HAS.

Tilt/Swivel

With the attached pedestal, you can tilt and/or swivel the LCD TV for the most comfortable viewing angle.
