Display: Dell Latitude 100L Service Manual
file:///C|/Work%20Area%20-%20A/E%20DOC%20Posting/latc100l/en/Service%20Manual/display.htm[2/4/2013 3:01:03 PM]

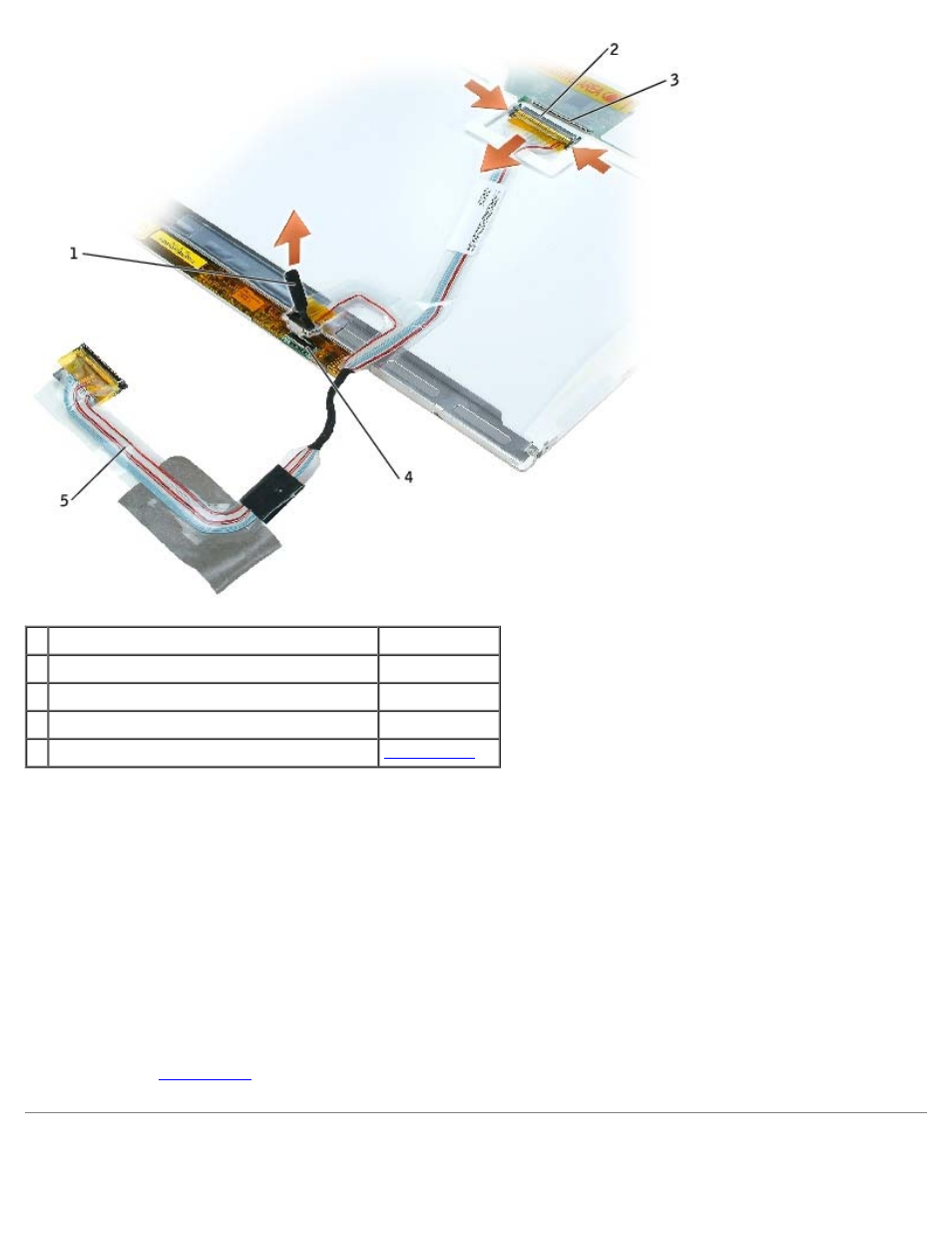

1 pull-tab on bottom flex-cable connector
2 top flex-cable connector
3 display connector
4 inverter connector
5 display cable see Mini RSL
8. Use the pull-tab to disconnect the bottom flex-cable connector from the inverter connector.
Installing the Display Panel
1. Connect the top flex-cable connector to the display panel connector.
2. Connect the bottom flex-cable connector to the inverter connector.
3. Lay the display panel in the top cover.
4. Route the display-feed flex cable so that it rests in the notch located in the bottom edge of the top cover.
5. Replace the four M2 x 3-mm screws that secure the display panel to the top cover.
6. Replace the display bezel .
