Memory, CD or DVD Drive, Modem, and Mini PCI Card: Dell Latitude 100L Service Manual
file:///C|/Work%20Area%20-%20A/E%20DOC%20Posting/latc100l/en/Service%20Manual/upgrades.htm[2/4/2013 3:01:00 PM]

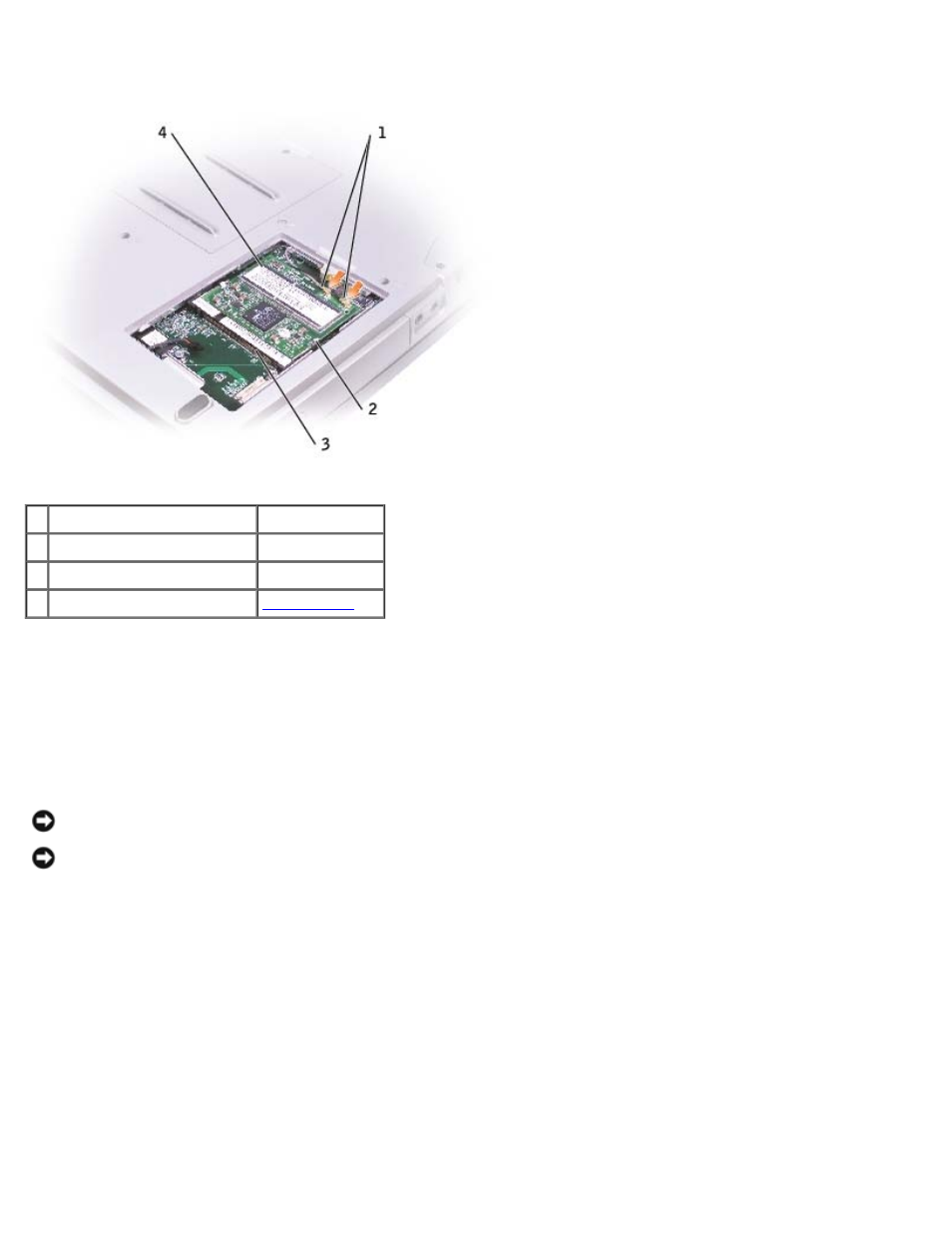

3. Disconnect the Mini PCI card from the attached cables.
1 antenna cables
2 metal securing tabs (2)
3 Mini PCI card connector
4 Mini PCI card see Mini RSL
4. Use your fingertips to carefully spread apart the securing taps on each end of the Mini PCI card connector until the card
pops up.
5. Lift the Mini PCI card out of its connector.
Installing the Mini PCI Card
NOTICE: To avoid damaging the Mini PCI card, never place cables on top of or under the card.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign
the card.
1. Align the Mini PCI card with the connector at a 45-degree angle, and press the Mini PCI card into the connector until it
clicks.
