The vertical plastic baffle in the center of the system improves system cooling by guiding the airflow within the system. You must remove the baffle when
performing certain procedures inside the system to improve access to some internal components.

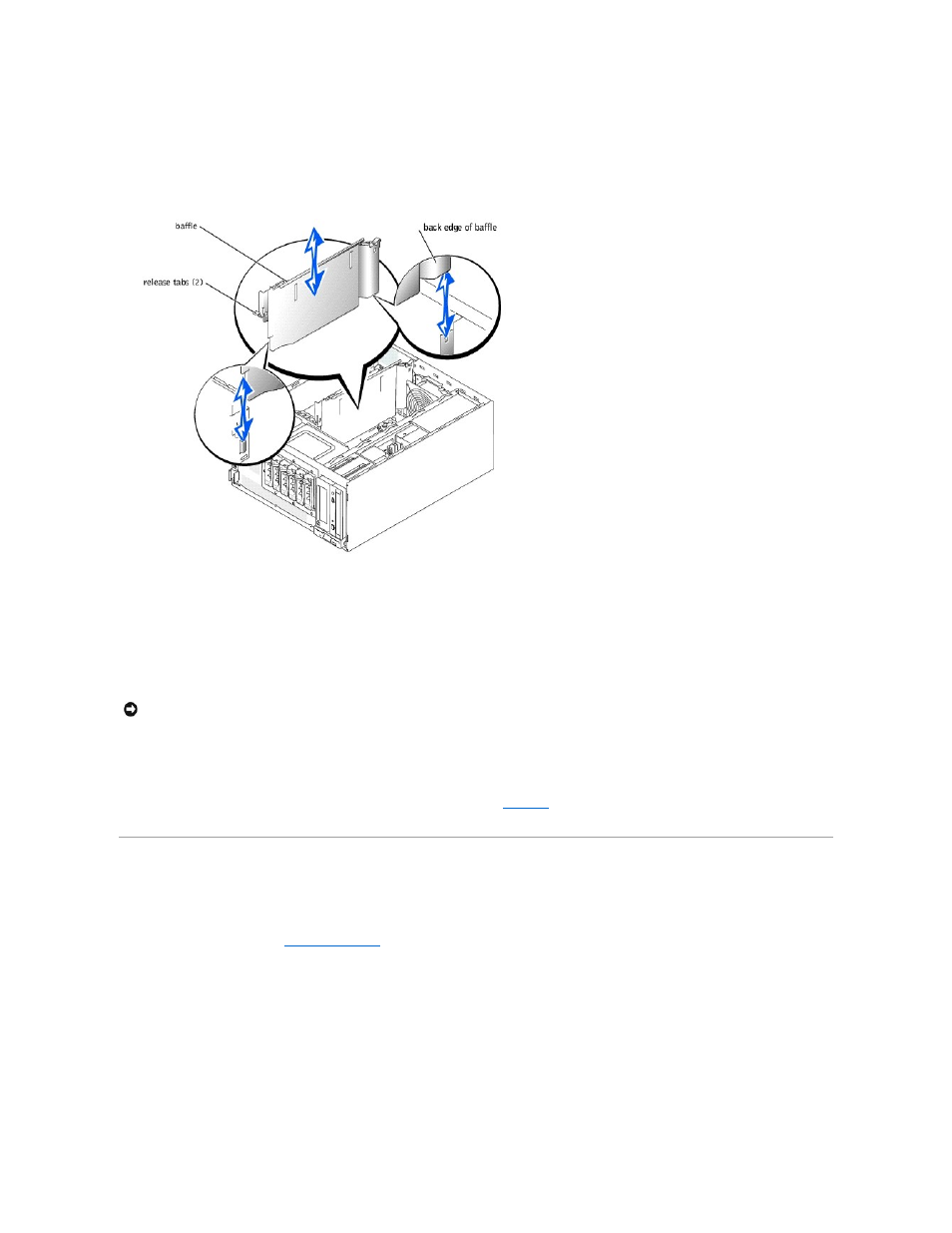

Figure 5-4. Removing the Baffle
Removing the Baffle
To remove the baffle, lift the release tab at the end of the baffle near the front of the system, depress the release tab at the back end of the baffle, and slide
the baffle upward.
Installing the Baffle
When you install the baffle, note the proper position of the back edge of the baffle in Figure 5 -4 . After aligning both ends of the baffle, slide the baffle into the
system until the release tabs lock into place.
Checking the Equipment
This section provides troubleshooting procedures for equipment that connects directly to the system, such as the monitor, keyboard, or mouse. Before you
perform any of the procedures, see "
External Connections ."
Troubleshooting the Video Subsystem
Problem
l Monitor
l Monitor interface cable
l Video memory
NOTICE: You must reinstall the baffle to maintain proper airflow for system cooling.
