Power Button Module
Dell™ Studio XPS™ 8100 Service Manual
Removing the Power Button Module
Replacing the Power Button Module
Removing the Power Button Module
1.
Follow the procedures in
Before You Begin
.
2.
Remove the computer cover (see
Removing the Computer Cover
).
3.
Remove the front bezel (see
Removing the Front Bezel
).
4.
Remove the optical drive (see
Removing the Optical Drive
).
5.
Remove the top cover (see
Removing the Top Cover
).
6.
Disconnect the power button module cable from the system board connector FP1 (see
System Board Components
).
7.
Press the power button module tabs to release them from the top panel and lift the power button module.
8.
Set the power button module aside in a secure location.
Replacing the Power Button Module
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING:
To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.
WARNING:
Do not operate your computer with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)
removed.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.

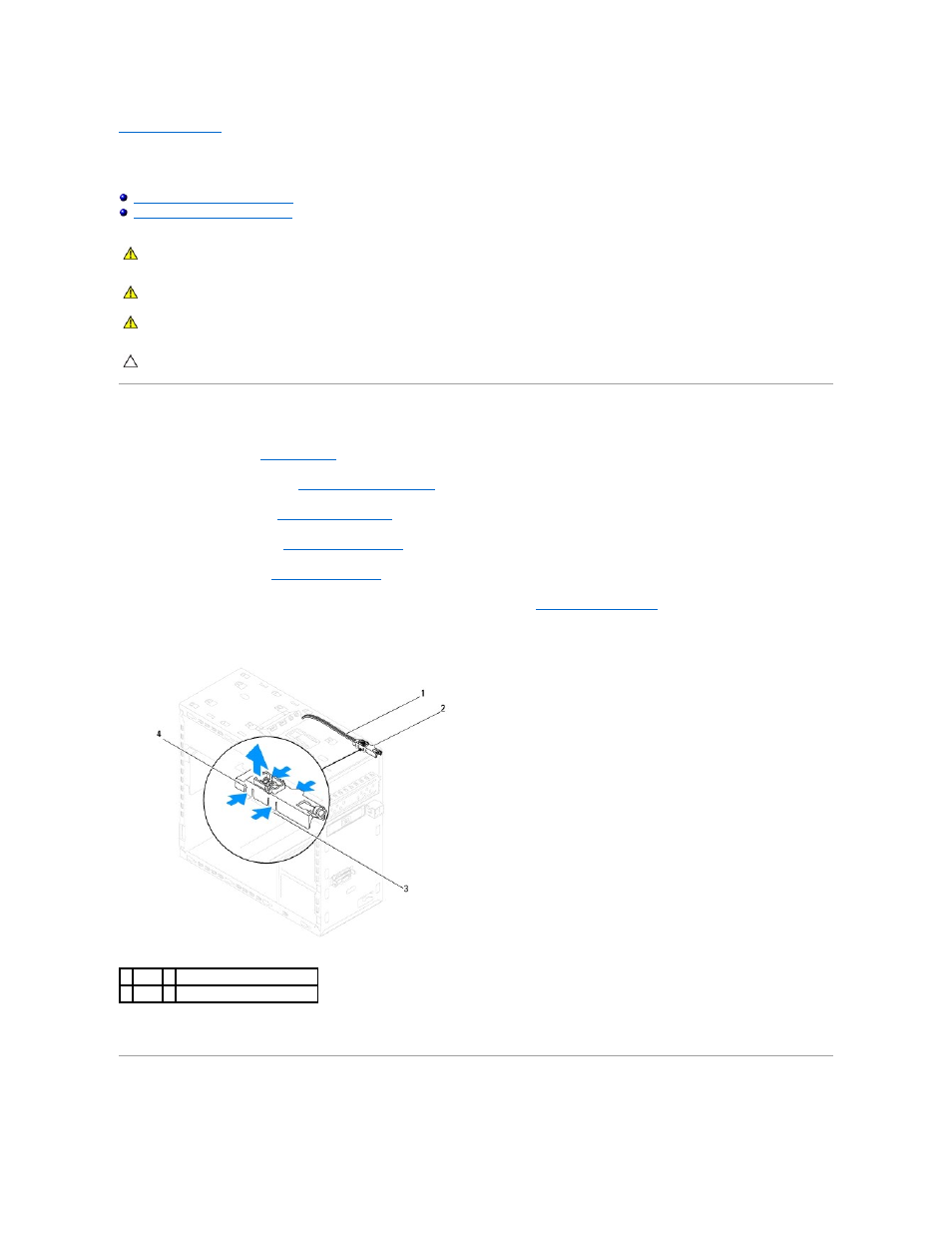

1 cable 2 power button module
3 slot
4 power button module tabs (4)
