39.4 Replacing the HDMI/eSATA Door
1. Insert door hinge onto assembly and align the hinge divots.
2. Replace the two M3 x 3-mm screws.
3. Follow the procedures in After Working on Your Computer.
39.5 Removing the Battery Door
NOTE: Removal of the battery door requires a security screw driver with a triangle head. These are available with the
battery door kit.
1. Follow the procedures in Before Working on Your Computer.
2. Open the door to relieve hinge pressure.

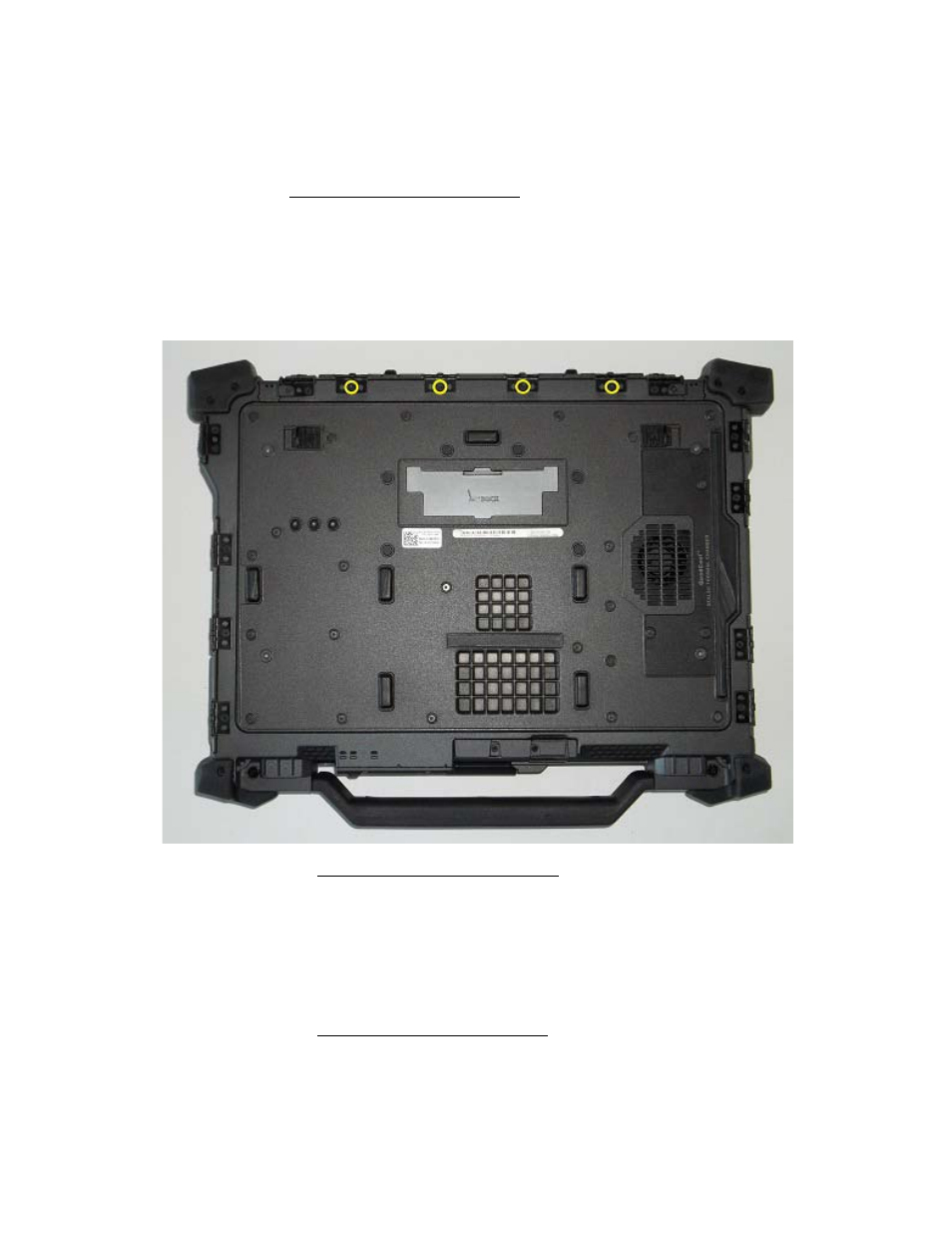

3. Remove the four M3 x 3-mm screws from the bottom of the base assembly.
39.6 Replacing the Battery Door
1. Insert door hinge onto assembly and align the hinge divots.
2. Replace the four M3 x 3-mm triangle security screws.
3. Follow the procedures in After Working on Your Computer.
