Dell ™ Latitude™ E6420 XFR Service Manual
Page 65
34 DC Power Cable
34.1 Removing the DC Power Cable
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
1. Follow the instructions in Before Working on Your Computer.
2. Remove the palm rest(see Removing the Palm Rest).
3. Disconnect the DC power cable from the system board.
4. Unroute the DC power cable from the base assembly. Pry up the DC power connector to release the double-
stick adhesive tape on the bottom of the connector, and then lift the DC power connector out of the base
assembly.

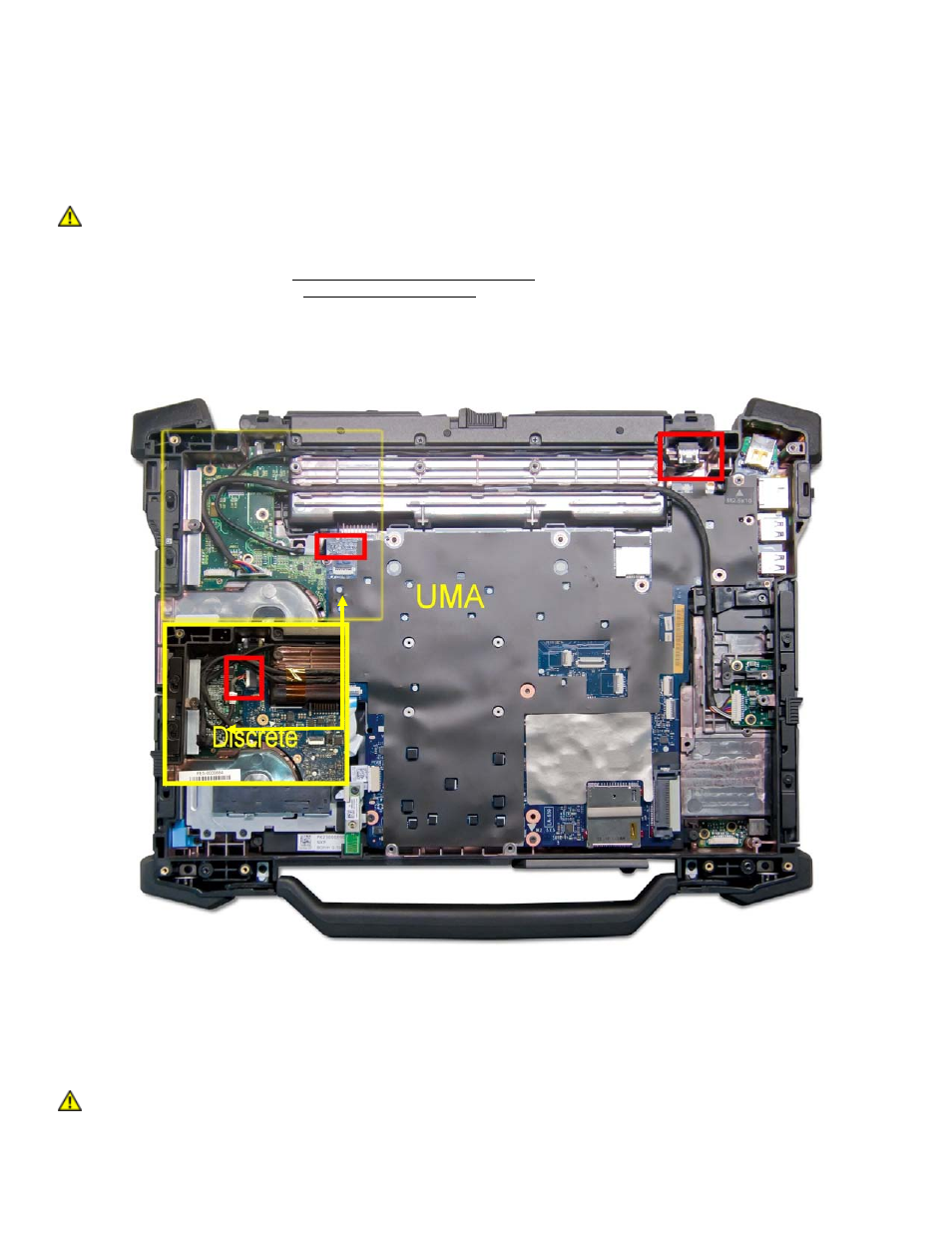

1 DC power connector 2 DC cable connection point to system board
34.2 Replacing the DC Power Cable
CAUTION: Before you begin any of the procedures in this section, follow the safety
instructions that shipped with your computer.
2
1
