CHAPTER 4: HARD DRIVE(S)
Removing the Hard Drive(s)
Follow the instructions in “Before You Begin” on page 1. 6.
Remove the battery pack (see “Removing the Battery Pack” on page 2. 11).
Remove the compartment door (see “Removing the Compartment Door” on 3.
page 14).

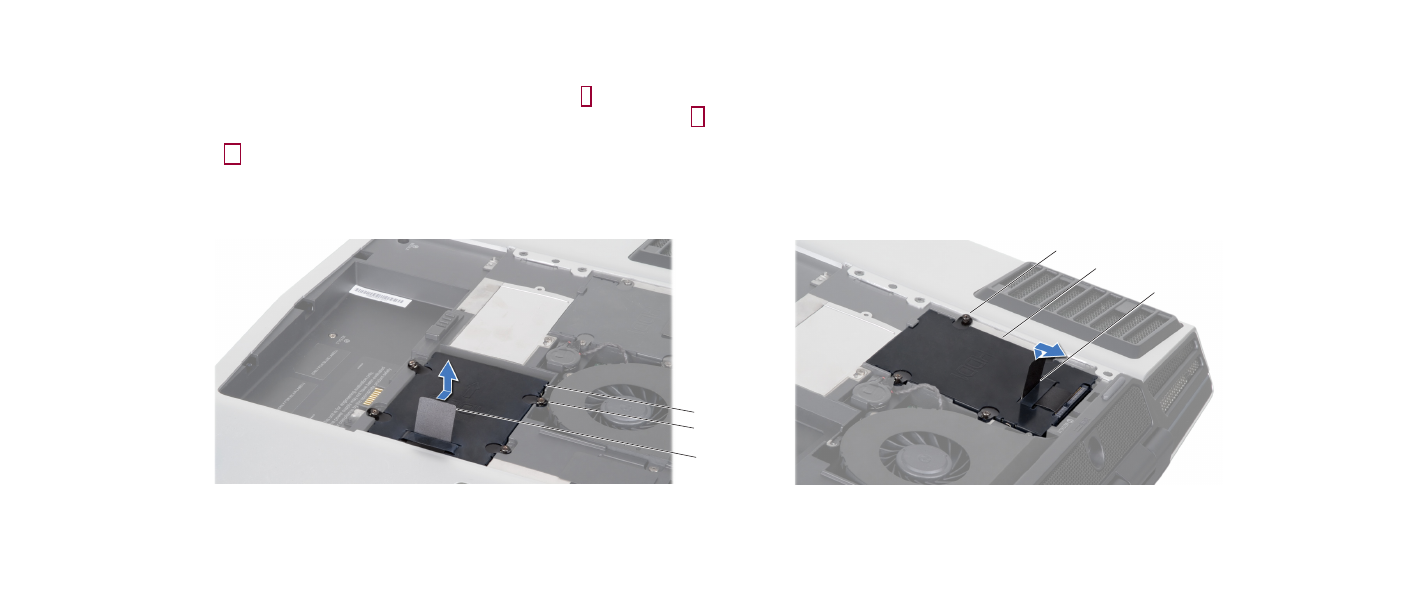

Loosen the four captive screws that secure the primary hard drive (HDD0).
4.
Using the pull tab, slide the primary hard drive (HDD0) towards the back of 5.
the hard drive bay and lift it out.
3
1
2
Primary Hard
Drive (HDD0)
1 pull tab 3 primary hard drive (HDD0)
2 captive screws (4)
If your computer has a secondary hard drive (HDD1): 6.
Loosen the four captive screws on the secondary hard drive (HDD1). a.
Using the pull tab, lift the secondary hard drive (HDD1) out of the hard b.
drive bay.
3
1
2
Secondary Hard Drive
(HDD1)
1 pull tab 3 captive screws (4)
2 secondary hard drive (HDD1)
