12 M5424 SAN I/O Module Hardware Reference Manual
53-1001082-01
Modify the SAN I/O Module IP address
2
• Switch-6 for SAN I/O module installed in bay C2.
3. At the login prompt, enter the user name as admin and password as password.
4. Use the appropriate CLI commands to change the IP address of the selected SAN I/O module.
Refer to your Blade Server Enclosure CLI documentation.
Using the CMC GUI to set the IP address
To change the IP address, use the following steps:
1. Open the CMC application’s Setup tab.
2. Enter the new information in the IP Address, Subnet Mask, and Gateway fields as appropriate
and click Apply.
3. To enable DHCP, select DHCP Enabled and click Apply.

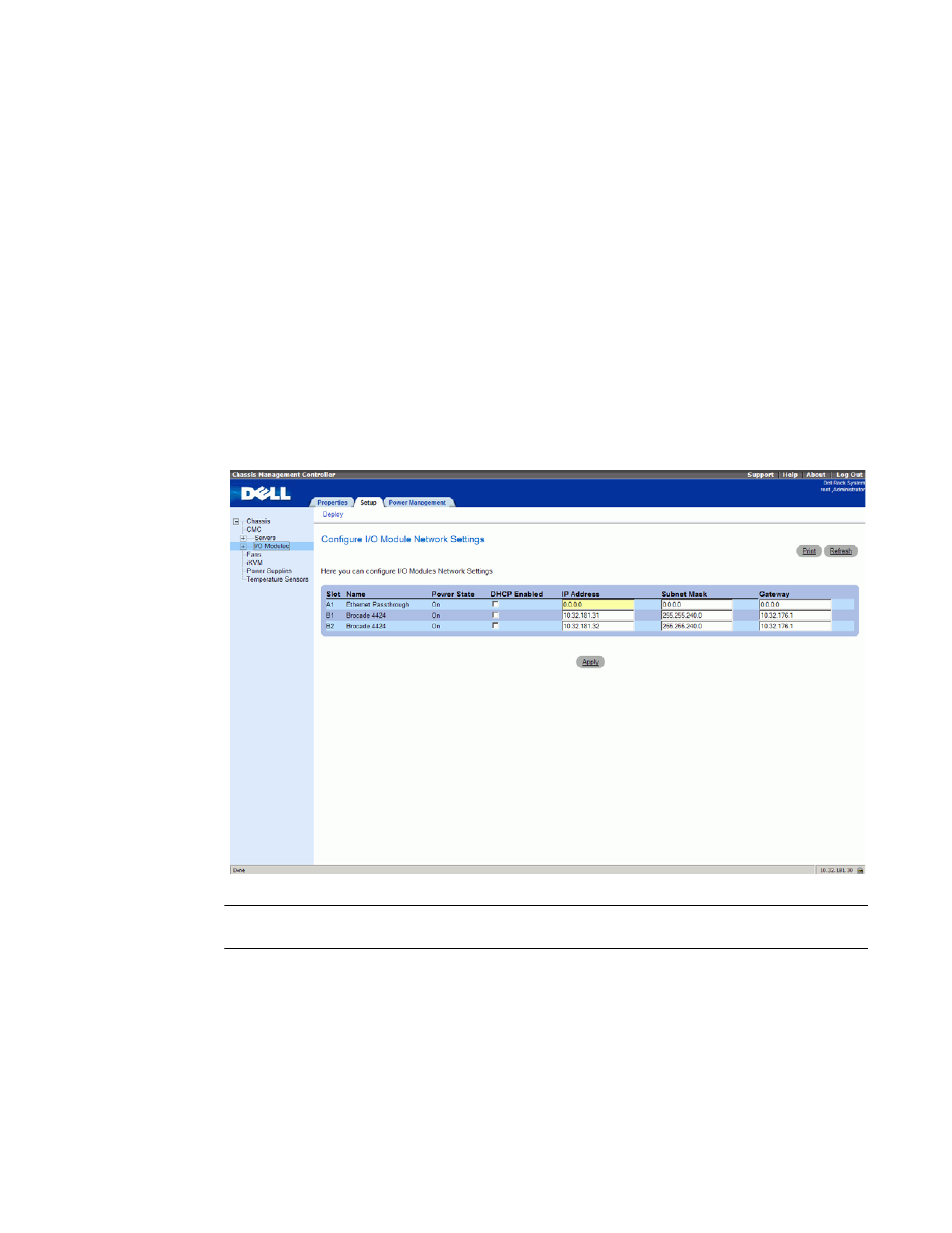

FIGURE 4 CMC Setup tab
NOTE
Refer to the documentation for the CMC GUI application for additional detail.
