M5424 SAN I/O Module Hardware Reference Manual 5
53-1001082-01
Hardware Description
1
1 SAN I/O Module status LED
2 Power status LED
3 Server Management LED
Nonport side
The nonport side of the SAN I/O Module (shown in Figure 3 ) is seated into the enclosure. You do
not need to line up the SAN I/O Module as it will seat correctly when the insertion arm is closed.
When the SAN I/O Module is inserted, the backplane connectors activate a connection port,
allowing the SAN I/O Module to be configured in the Blade Server Enclosure.

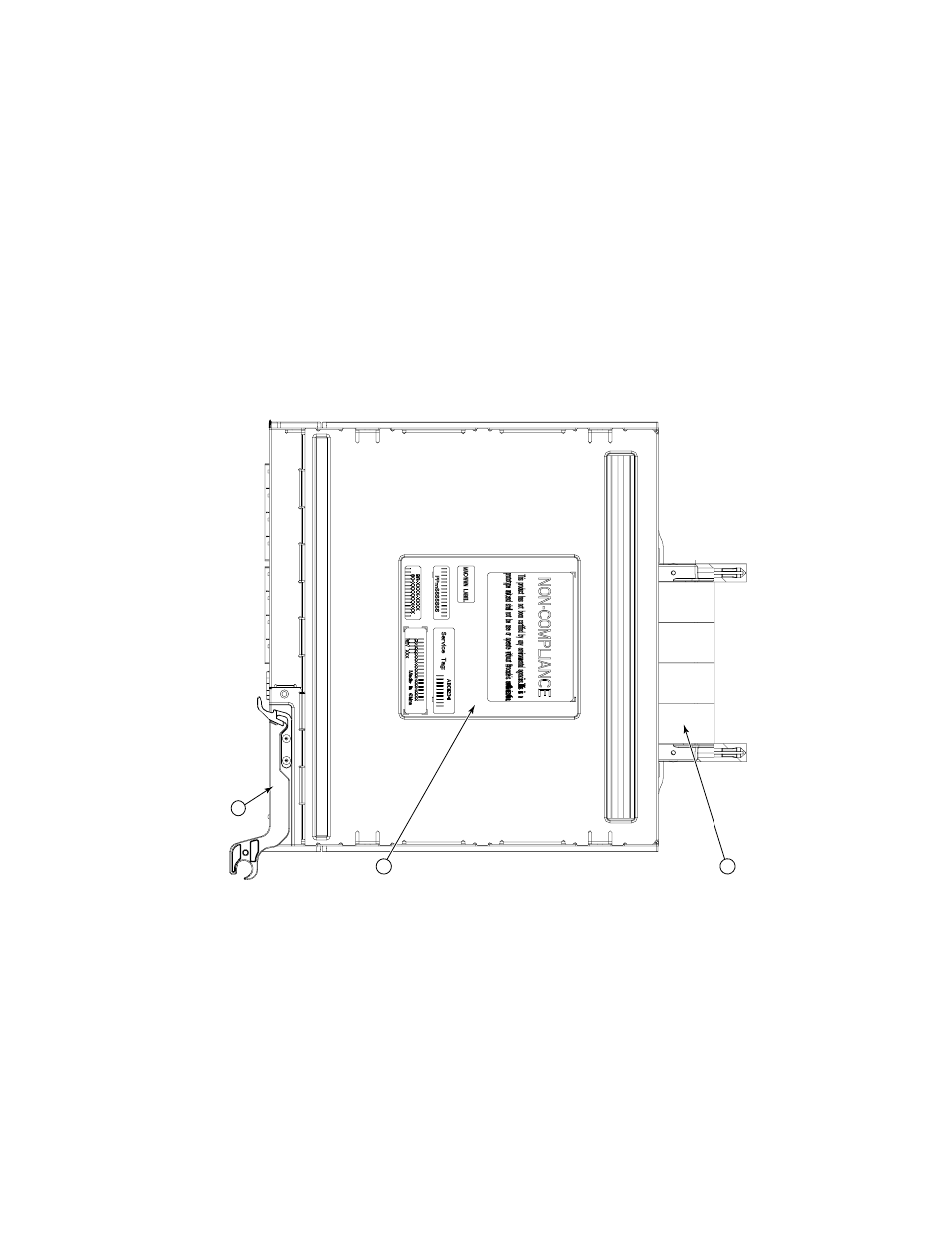

FIGURE 3 Nonport side, viewed from top
1. I/O module handle. Lifting the handle’s release latch opens the handle to install and remove
the module from the Blade Server Enclosure.
2. Product label including serial number.
3. Connectors
Labeling
Figures 3 shows the labels appearing on the SAN I/O Module. A second serial label is located
beneath the insertion arm on the enclosure (visible only when the arm is extended).
To extend the insertion arm, gently squeeze the release tab and pull outward.
1
2 3
