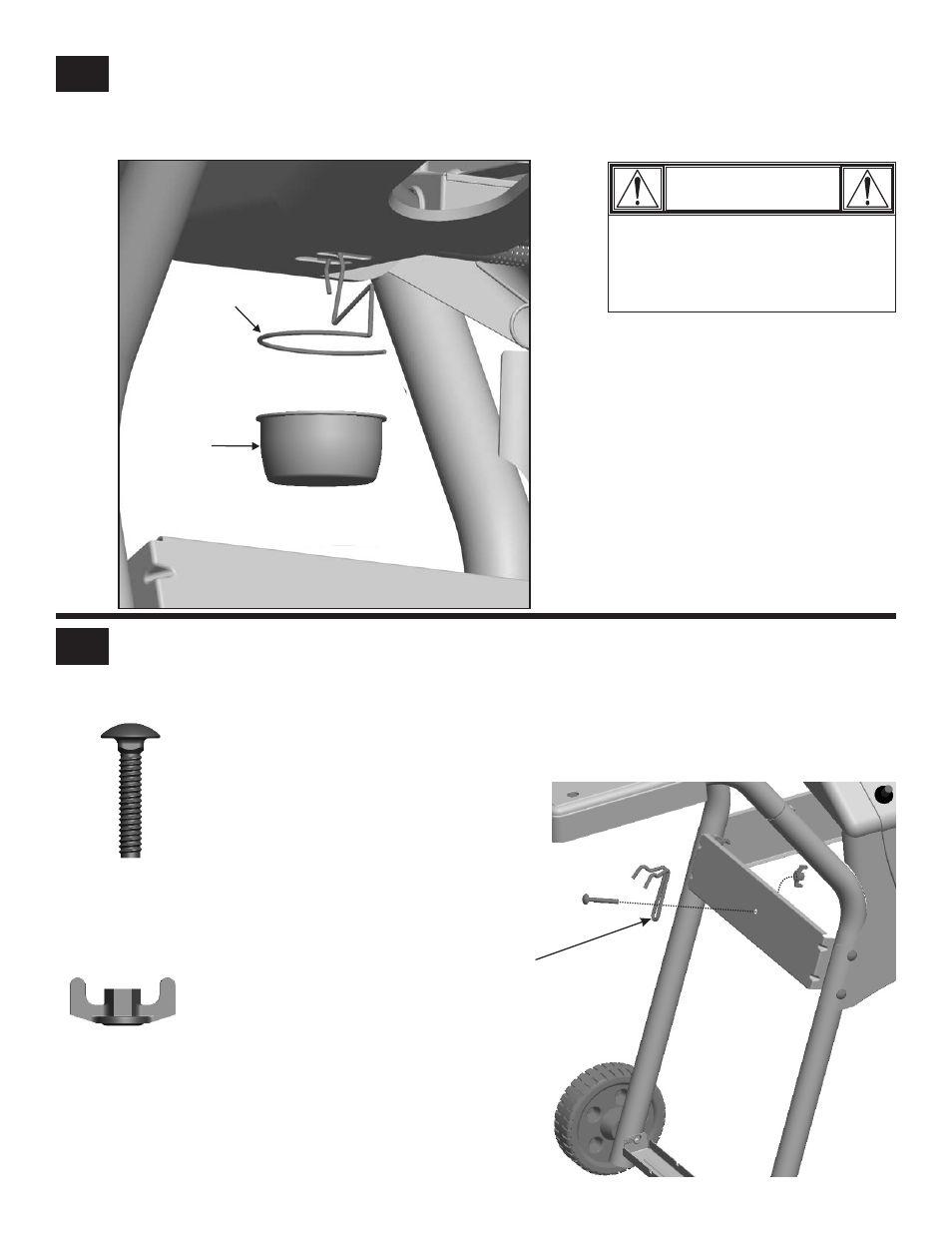

Hang grease clip from bottom of firebox and place grease cup into grease clip.
Grease clip
CAUTION
Failure to install grease clip and cup
will cause hot grease to drip from
bottom of grill with risk of fire or
property damage.
Grease cup
Attach tank retainer wire to left side support brace using one 1/4’’-20x1-1/4” carriage bolt and one 1/4’’-20 tee knob. Do
not fully tighten until LP cylinder is installed.
Tank retainer wire
1/4’’-20x2’’
Carriage Bolt
Qty.1
1/4’’-20x1-1/4’’
Carriage Bolt
Qty.1
22
