Char-Broil QUICKSET 463666510 User Manual
Page 21
9
10

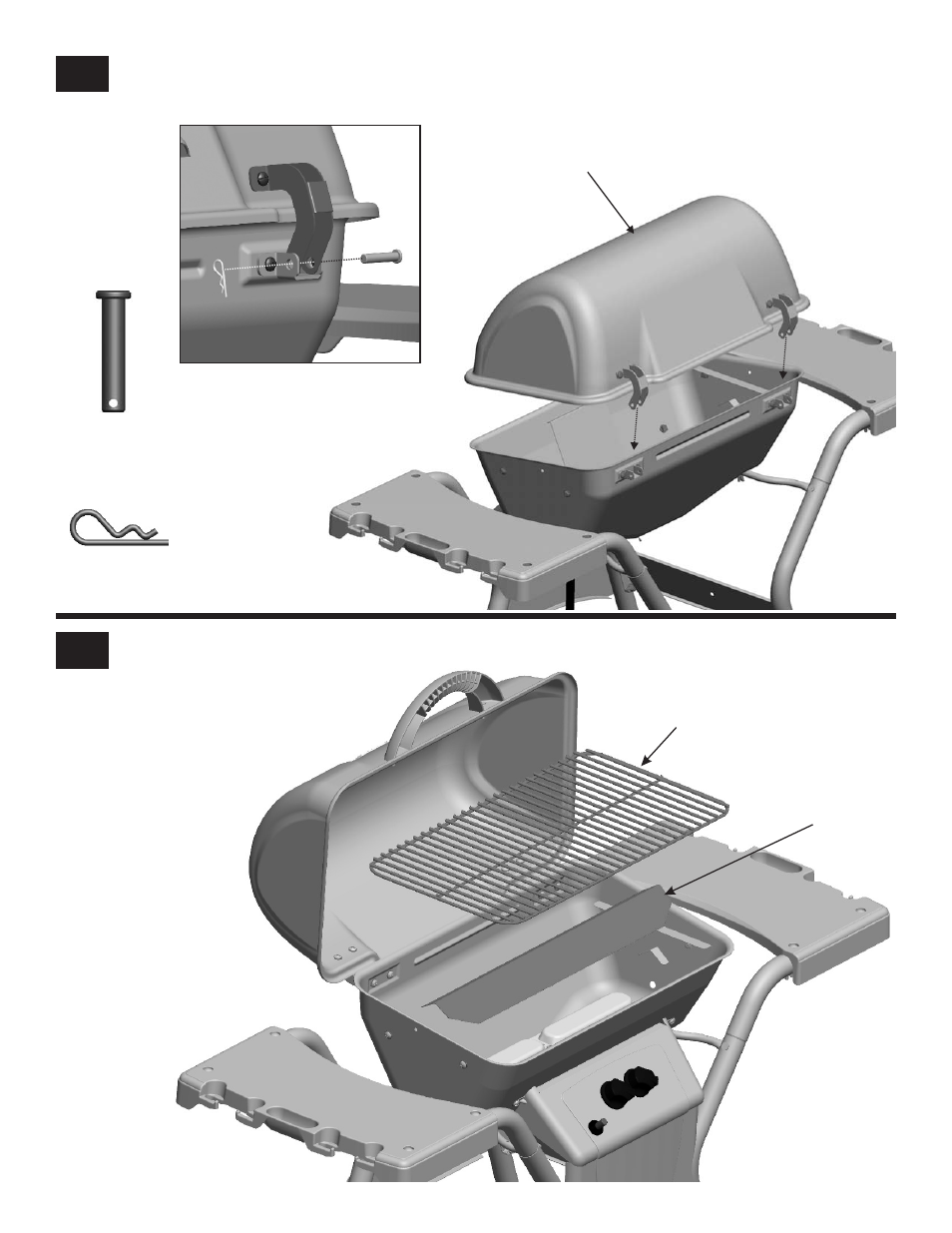

Place lid assembly onto firebox, aligning hinges. Hinges on lid fit inside hinges on firebox. Secure using two hinge pins and
two hitch pins.
Lid assembly
Place vaporiser bar onto V-shaped bar rests inside firebox. Place cooking grate onto firebox.
Cooking grate
Vaporiser bar
NOTE:
The vaporiser
bar must be inserted
into firebox at an angle
in order to fit beneath
cooking grate supports.
Hinge Pin
Qty.2
Hitch Pin
Qty.2
21
