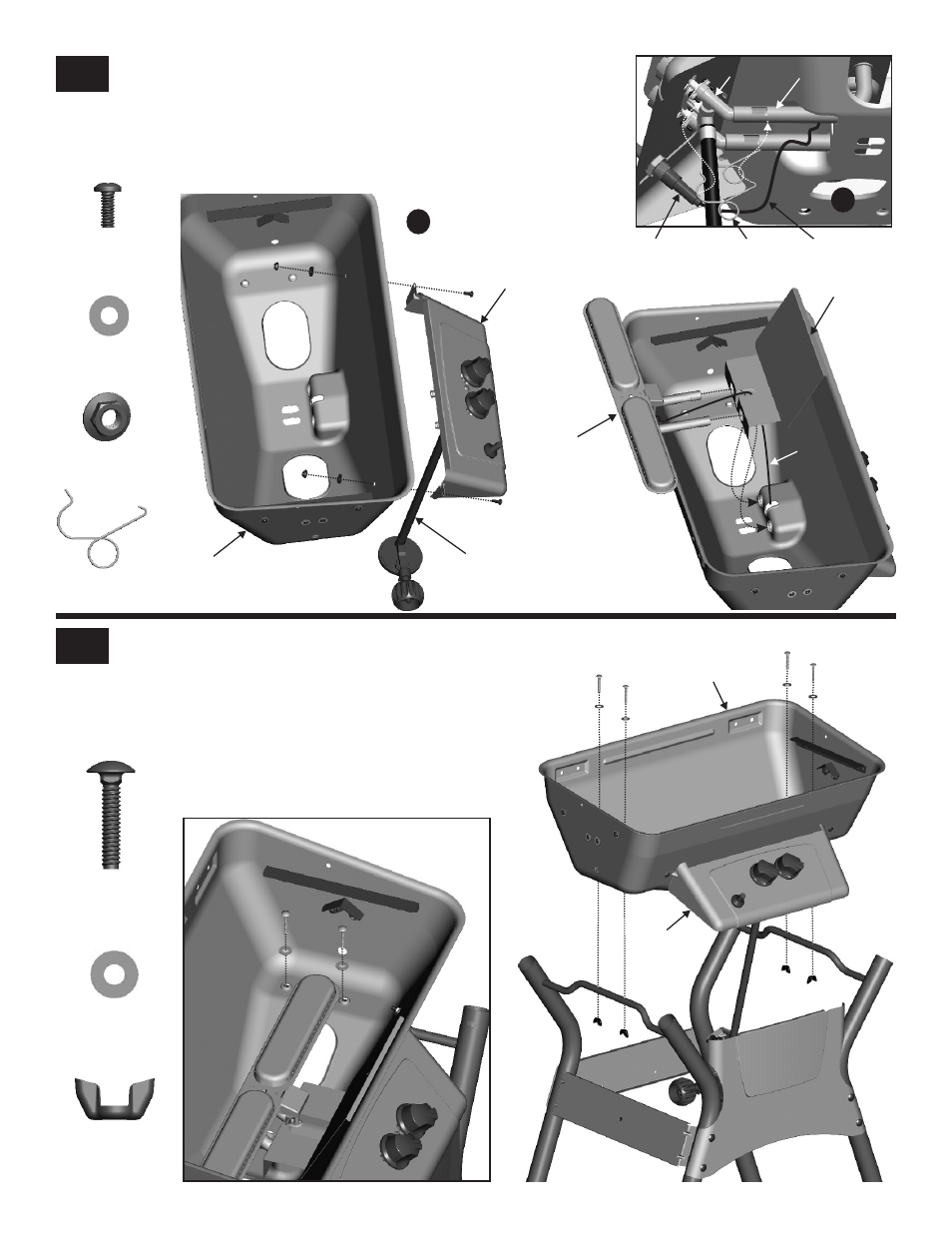

Attach control panel/ HVR assembly to firebox with two #10-24x1/2”
machine screws, 7x15 fiber washers, and #10-24 flange nuts (A). Place
heat shield onto burner venturi tubes, then insert burner/ heat shield through
venturi holes on firebox. Make sure ignitor wire go through the hole on heat
shield and firebox as shown (B). Make sure valve and venturi tube align.
Attach venturi clips. Attach ignitor wire to ignitor (C).
#10-24x1/2”
Machine Screw
Qty. 2
#10-24 Flange Nut
Qty. 2
Venturi clip
Qty. 2
A
C
Firebox
HVR Assembly
Control Panel
Burner
Assembly
Heat Shield
Valve Venturi tube
Ignitor wire Venturi clip Ignitor
Ignitor
wire
Turn cart upright. Place cart in the upright position. Place
firebox assembly onto cart, making sure that regulator hose
hangs inside cart and control panel overlaps front panel.
Secure firebox to cart using four #10-24x1-1/4’’ carriage
bolts, 7x15 fiber washers and #10-24 wing nuts.
Firebox
assembly
Control
panel
Front
panel
7x15 Fiber Washer
Qty. 2
#10-24x1-1/4’’
Carriage Bolt
Qty.4
7x15 Fiber Washer
Qty. 4
#10-24 Wing Nut
Qty.4
