Attaching the Cables: Dell™ W2300 LCD TV User's Guide
Connecting Your PC • Connecting as a TV • Connecting your DVD/VCD/VCR/CATV Box • Connecting A/V outputs

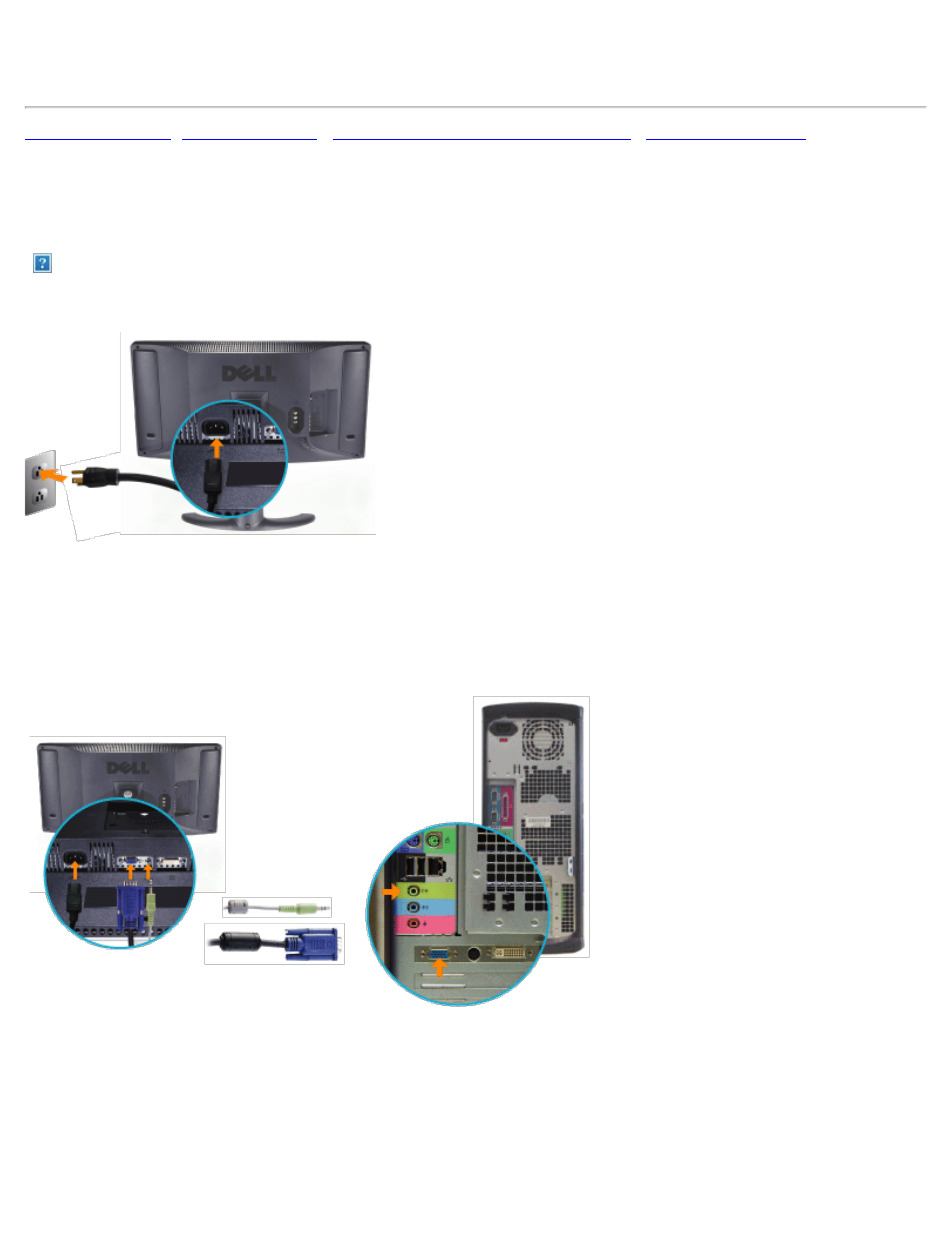

Connecting your PC
CAUTION: Before performing any of the setup procedures listed below, read and follow the safety instructions.
Connect the power cord to an electrical outlet.
A. Connection through blue VGA & lime green audio cable
1. Connect one end of the blue VGA cable to the VGA plug on W2300, and connect the other end to the VGA
plug on your PC.
2. Connect one end of the lime green audio cable to the audio jack by the D-sub plug on W2300, and connect
the other end to the Audio jack on your PC.
OR
B. Connection through white DVI cable & lime green audio cable
1. Connect one end of the white DVI cable to the DVI plug on W2300, and connect the other end to the DVI
plug on your PC.
2. Connect one end of the lime green audio cable to the audio jack by the DVI plug on W2300, and connect the
