7
NVB Series B-Vent Gas Fireplace
7412950
Framing and Finishing
Check appliance to make sure it is levelled
and properly positioned.
The appliance should only be mounted on the following sur-
faces:
• A flat combustible (burnable) surface.
• A raised wooden platform.
• A concrete block or other solid object
placed beneath each of the four corners
of the appliance.
To mount the appliance:
1. Choose unit location.
2. Four (4) nailing flanges are supplied with the fireplace
(found on the fireplace hearth). To level the box and secure
it firmly in place, remove the nailing flanges from the hearth
and install at the sides of the fireplace as shown in Figure 6.
FP549

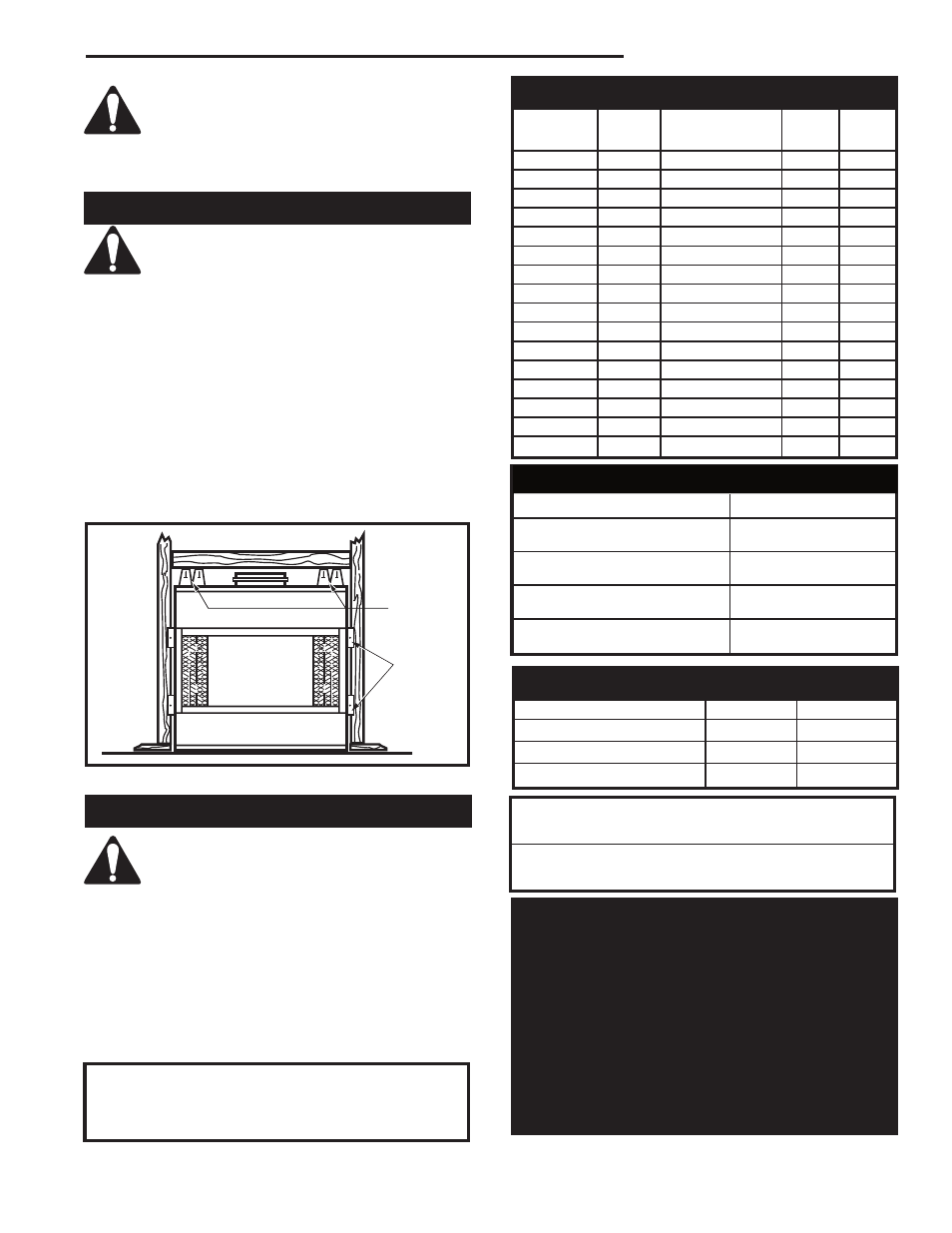

Fig. 6 Adjustable drywall strip (nailing flange).
FP549
9/29/97
BR/BC
Nail Top
Standoffs
Nail Side-
Nailing
Flanges
Finishing
CAUTION: All joints between the finished
wall and the appliance surround (top and
sides) may be sealed only with non-com-
bustible material. Only noncombustible
material can be applied as facing to the ap-
pliance surround (the black painted face).
When finishing the appliance, never obstruct or modify
the air inlet/outlet grilles in any manner.
Finish the wall with the material of your choice. Refer to
Figures 5a and 5b for specific clearances when install-
ing a combustible mantel or other combustible projec-
tion.
Gas Specification
Max. Min.
Model Fuel Gas Control Input Input
NVBR36RN Natural Millivolt Hi/Lo 30,000 21,500
NVBC36RN Natural Millivolt Hi/Lo 30,000 21,500
NVBR36RP Propane Millivolt Hi/Lo 30,000 22,000
NVBC36RP Propane Millivolt Hi/Lo 30,000 22,000
NVBR36EN Natural Electronic Ignition 30,000 21,500
NVBC36EN Natural Electronic Ignition 30,000 21,500
NVBR36EP Propane Electronic Ignition 30,000 22,000
NVBC36EP Propane Electronic Ignition 30,000 22,000
NVBR42RN Natural
Millivolt Hi/Lo 30,000 21,500
NVBC42RN Natural Millivolt Hi/Lo 30,000 21,500
NVBR42RP Propane MIllivolt Hi/Lo 30,000 21,500
NVBC42RP Propane Millivolt Hi/Lo 30,000 21,500
NVBR42EN Natural Electronic Ignition 30,000 21,500
NVBC42EN Natural Electronic Ignition 30,000 21,500
NVBR42EP Propane Electronic Ignition 30,000 22,000
NVBC42EP Propane Electronic Ignition 30,000 22,000
Gas Inlet & Manifold Pressures
Natural LP
Minimum Inlet Pressure 5.5” w.c. 11.0” w.c.
Maximum Inlet Pressure 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5”w.c. 10.0” w.c.
NVBR36 / NVBC36 / NVBC42 / NVBR42
Certified to
ANSI Z21.50b-2002 / CSA 2.22b-2002
Vented Gas Fireplace
High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1/NFPA 54 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
Be sure to always maintain the proper one
(1) inch distance to combustibles around
B-vent pipe sections.
NOTE: Insulating for cold climates is strictly a recom-
mendation and not a requirement.
Units: F34AR0, F34BR0, F34HR0, F34IR0, F34AC0,
F34BC0, F34HC0, F34IC0, G34AR0, G34BR0,
G34HR0, G34IR0, G34AC0, G34BC0, G34HC0,
G34IC0
Air Shutter
Model Gap
NVBR36RN, NVBC36RN, 8 mm
NVBR36EN, NVBC36EN
NVBR42RN, NVBC42RN,
10 mm
NVBR42EN, NVBC42EN
NVBR36RP, NVBC36RP,
2 mm
NVBR36EP, NVBC36EP
NVBR42RP, NVBC42RP,
2 mm
NVBR42EP, NVBC42EP
