20
NVB Series B-Vent Gas Fireplace
7412950
NVB Series
Ref. Description NVB36 NVB42
1. Logs - Complete Set 20003868 20003910
1a. Log - Left Rear 20003862 20003904
1b. Log - Right Rear 20003863 20003905
1c. Log - Right Cross 20003864 20003906
1d. Log - Left Cross 20003865 20003865
1e. Log - Center Cross -- 20003907
1f. Log - Left Ember (Long) 20003866 20003908
1g. Log - Right Ember (Short) 20003867 20003909
2. Lava Rock Package 20000376 20000376
3. Bag of Embers 7060109 7060109
4. Burner Housing w/Tile 20003791 20003953
5. Ceramic Tile (single) 57803 57803
6a. Burner Orifice - Natural (Manifold & Orifice) 20003532 20003547
6b. Burner Orifice - LP (Manifold & Orifice) 20003541 20003552
7. Thermodisk 20001558 20001558
8. Remote Switch Kit 53875 53875
9. Fan ZA1110 ZA1110
10. Door Track - Black 3061102 3062102
950
NVB/C

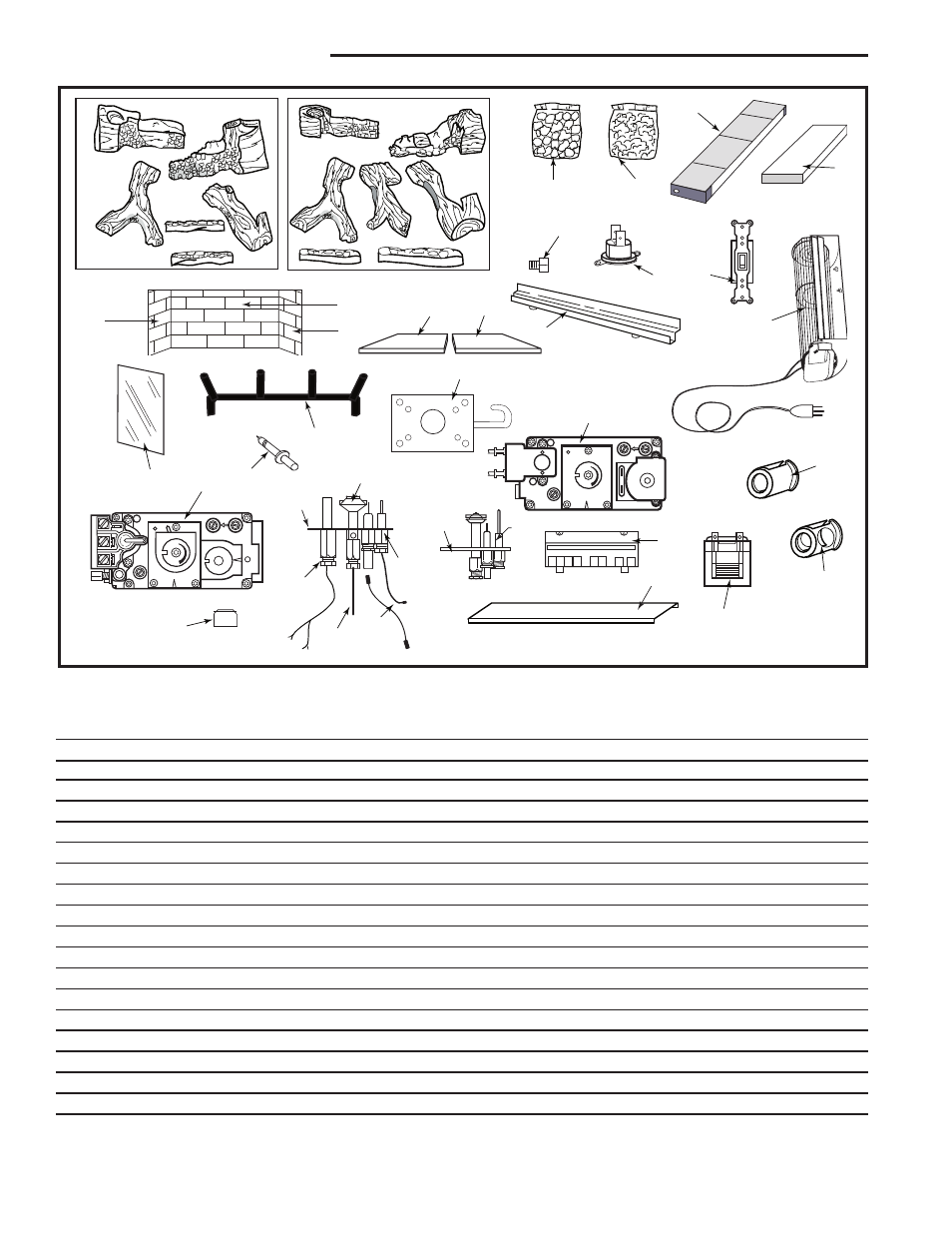

replacement parts
16
6a/b
9
20
24
19a/b
�� ��� ��� �� �� �� ��� ����
������� ����� ���� �
�� �� ��� ���
�� �� ���
�������
� �
�����
���
THTP
TP
TH
22
25
21a/b
27
26 23a/b
8
11
14 15
10
3
28a/b
32
31
�� � ���
����
��� ��� ���
� � ���� ���� ���� �
�� ��� ��� �� �� �� ��� ����
������� ����� ��
� �
�����
���
��
MV MVPV PV GND (BURNER) 24V 24V SENSE SPARK
7
18
2
a
b
1. NVB36 Logs
d
c
f
g
1. NVB42 Logs
c
d
g
a
b
f
e
4
5
12
13
17
29a/b
30
33
34 37
950
