Replacing the system board – Dell Inspiron 14 (M4010, Mid 2010) User Manual
Page 52
15.
Lift the system board assembly to disconnect the connector on the system board from the connector on the daughter board.
16.
Turn the system board assembly over.
17.
Follow the instructions from
step 3
to
step 5
in
Removing the Hard Drive
.
18.
Remove the thermal cooling assembly (see
Removing the Thermal Cooling Assembly
).
19.
Remove the processor module (see
Removing the Processor Module
).
Replacing the System Board
1.
Follow the instructions in
Before You Begin
.
2.
Replace the processor module (see
Replacing the Processor Module
).
3.
Replace the thermal cooling assembly (see
Replacing the Thermal Cooling Assembly
).
4.
Follow the instructions from
step 4
to
step 5
in
Replacing the Hard Drive
.
5.
Turn the system board assembly over.
6.
Align the connectors on the system board with the slots on the computer base.
7.
Gently press the system board to connect the connector on the system board to the connector on the daughter board.

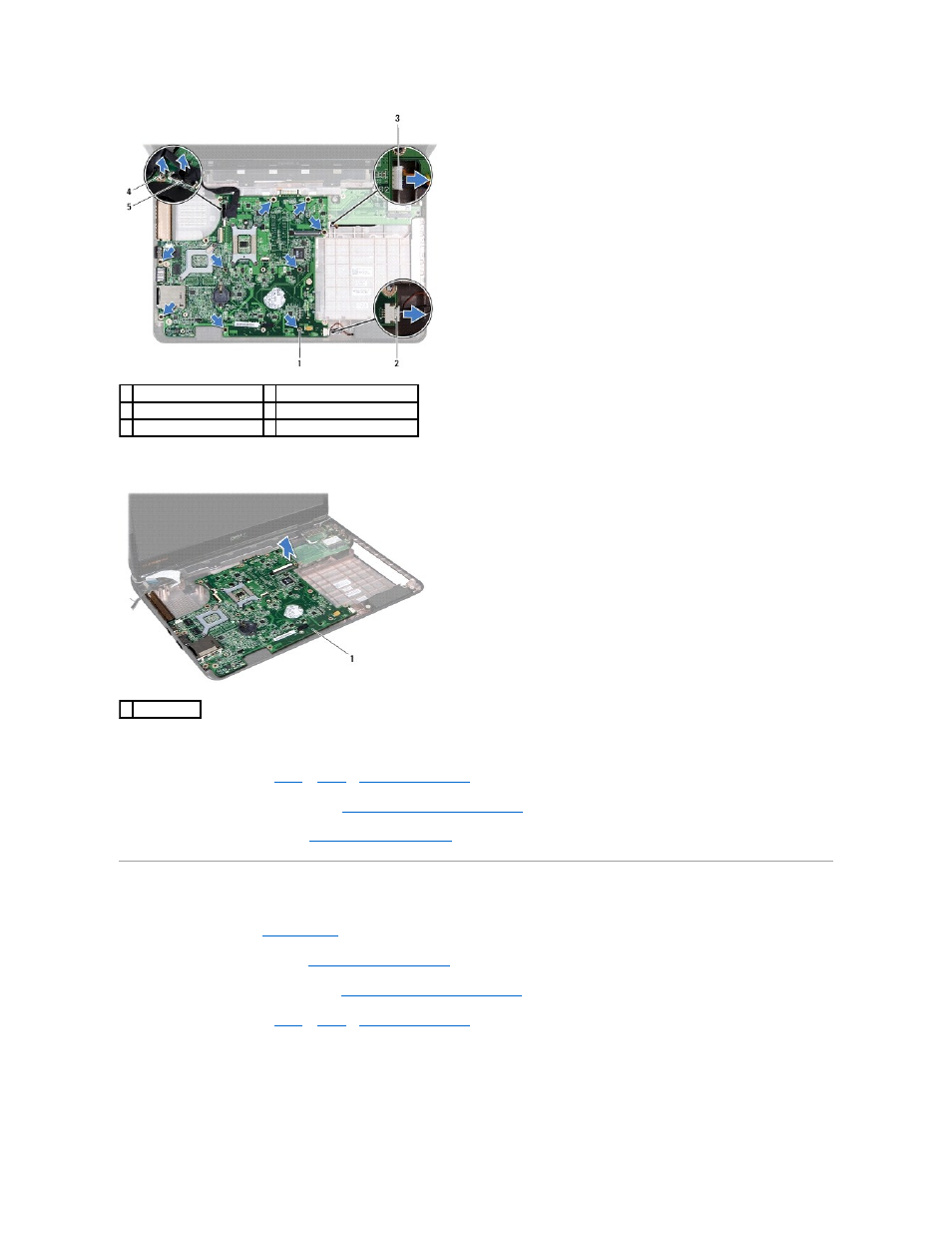

1 screws (9)
2 speakers cable connector
3 AC adapter cable connector 4 display cable grounding screw
5 display cable
1 system board
