MXM Assembly (Optional)
Dell™ Inspiron™ One 2305/2310 Service Manual
Removing the MXM Assembly
Replacing the MXM Assembly
Removing the MXM Assembly
1. Follow the instructions in Before You Begin .
2. Remove the back cover (see Removing the Back Cover ).
3. Follow the instructions from step 2 to step 5 in Removing the Front Stand .
4. Remove the system-board shield (see Removing the System-Board Shield ).
5. Remove the MXM-assembly fan (see Removing the MXM-Assembly Fan ).
6. Remove the three screws that secure the MXM-assembly to the chassis.
7. Remove the MXM assembly from the MXM-assembly connector.
Replacing the MXM Assembly
1. Follow the instructions in Before You Begin .
2. Align the notch on the MXM assembly with the tab in the MXM-assembly connector.
3. Insert the MXM assembly at a 45-degree angle into the MXM-assembly connector.
4. Replace the three screws that secure the MXM assembly to the chassis.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
WARNING: The MXM assembly may be very hot during normal operation. Ensure that it has had sufficient time to cool before you touch it.
CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
NOTE: The appearance of the system board may vary based on your computer model.

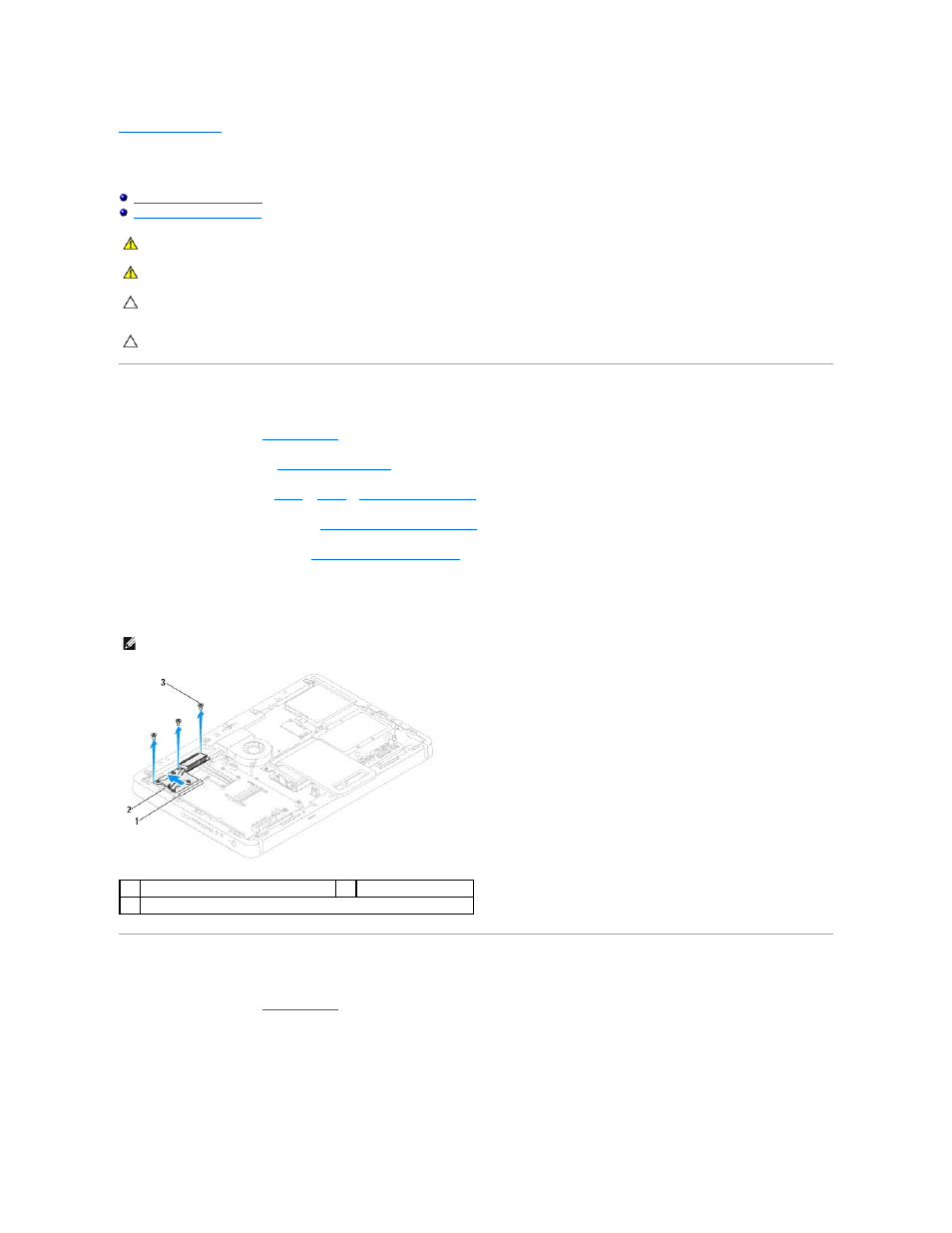

1 MXM assembly connector 2 MXM assembly
3 screws (3)
