104 Adding and Replacing Parts
www
.dell.com | support.dell.com
2 Connect the modem cable to the modem.
NOTICE: The cable connectors are keyed for correct insertion; do not force the connections.
3 Align the modem with the screw holes, and press the modem into the connector on
the system board.
4 Install the screws to secure the modem to the system board.
5 Replace the cover.
Adding a Mini PCI Card
CAUTION: FCC rules strictly prohibit users from installing 5 GHz (802.11a,
802.11a/b, 802.11a/b/g) Wireless LAN Mini PCI cards. Under no circumstances
should the user install such a device. Only trained Dell service personnel are
authorized to install a 5 GHz Wireless LAN Mini PCI card.
If you are removing and/or installing a 2.4 GHz (802.11b, 802.11b/g) Mini PCI
Card, please follow the instructions noted below. Only products approved for use
in your portable computer may be installed. Approved Mini PCI Cards may be
purchased only from Dell.
NOTE: 2.4 GHz Wireless LAN PC Cards may be removed and installed by the user.

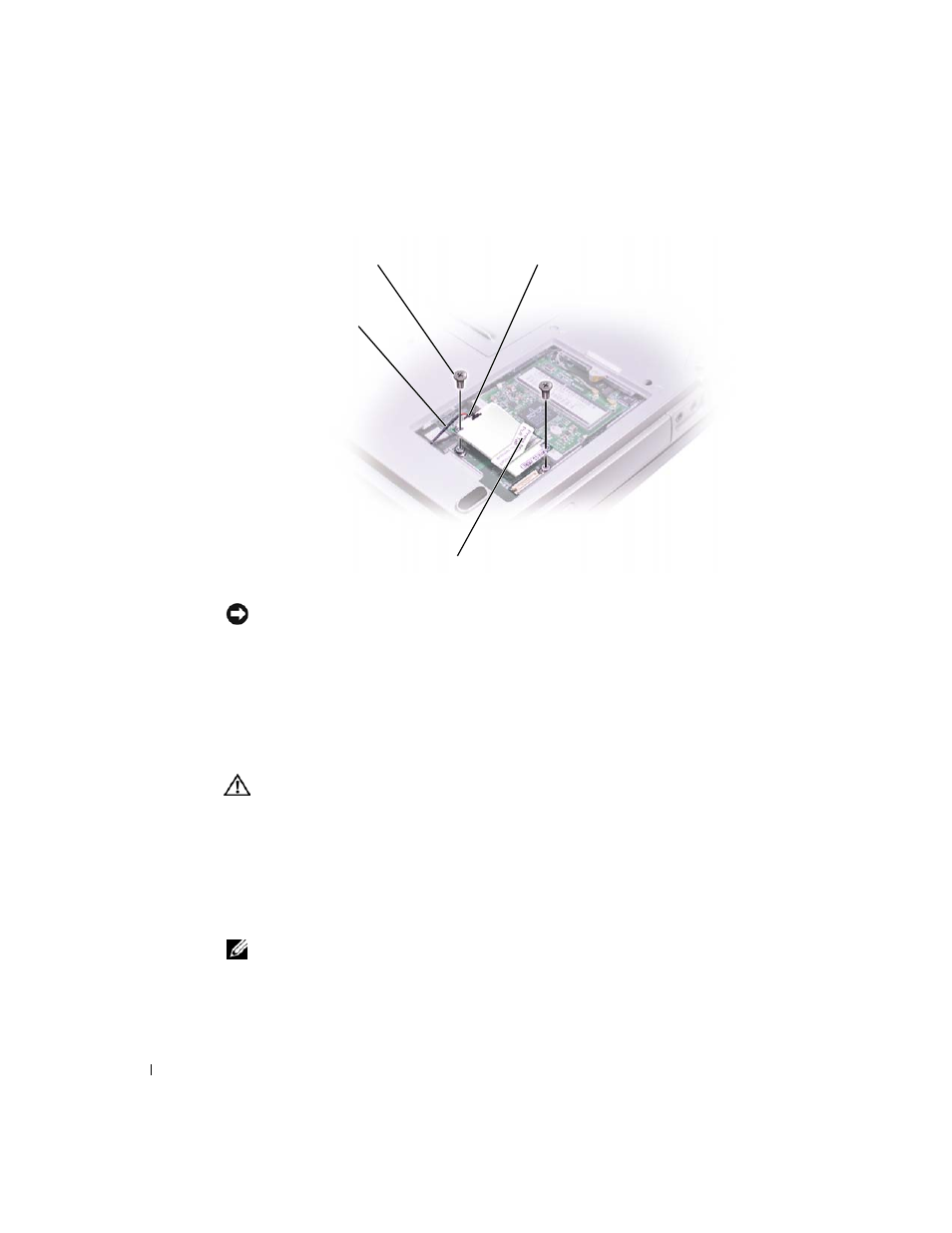

modem cable connector
modem cable
pull-tab
screws (2)
