,QFK'LVSOD\$VVHPEO\%H]HODQG/&'3DQHO

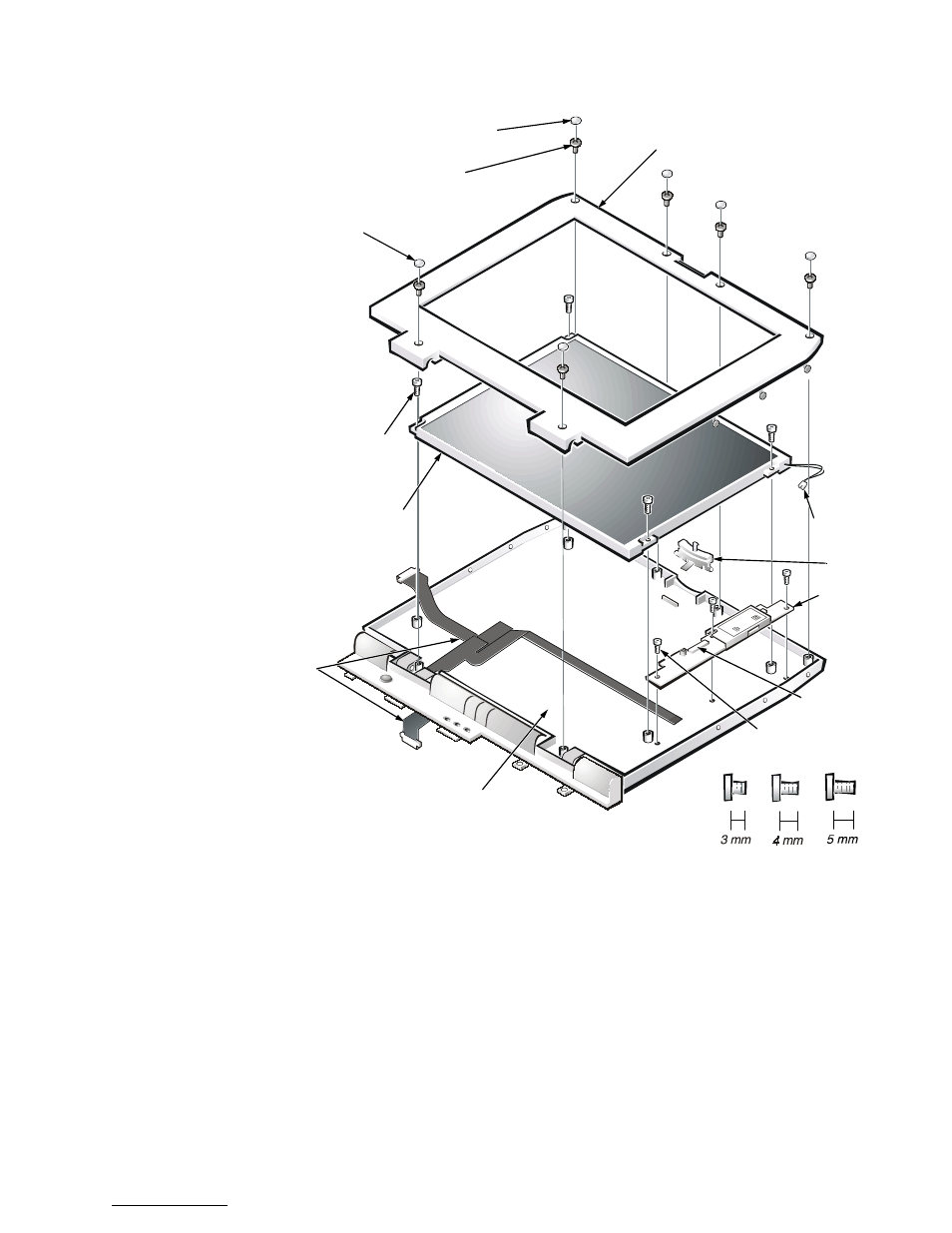

)LJXUH,QFK'LVSOD\$VVHPEO\

5HPRYLQJWKH,QFK'LVSOD\$VVHPEO\%H]HO

1.

Remove the four 5-mm screws securing the LCD panel to the top cover.

2. Disconnect the two-wire back-light plug from the connector on the inverter.

3. Lift the LCD panel and carefully disconnect the flex cable from the

connector on the left edge of the LCD panel.

4. Remove the LCD panel from the top cover.

4-mm screws (6)

rubber screw covers (4)

plastic screw
covers (2)

latch

LCD panel

display-assembly top cover

LCD flex
cable

inverter

back-light
plug

5-mm screws (4)

3-mm screws (3)

display assembly bezel

M3.0x3 M2.5x4 M3.0x5

ZIF
connector
