support.dell.com Dell Latitude CPt V/CPt S Series and CPx H/CPx J Series Service Manual 21
,QFK'LVSOD\$VVHPEO\%H]HODQG/&'3DQHO
O

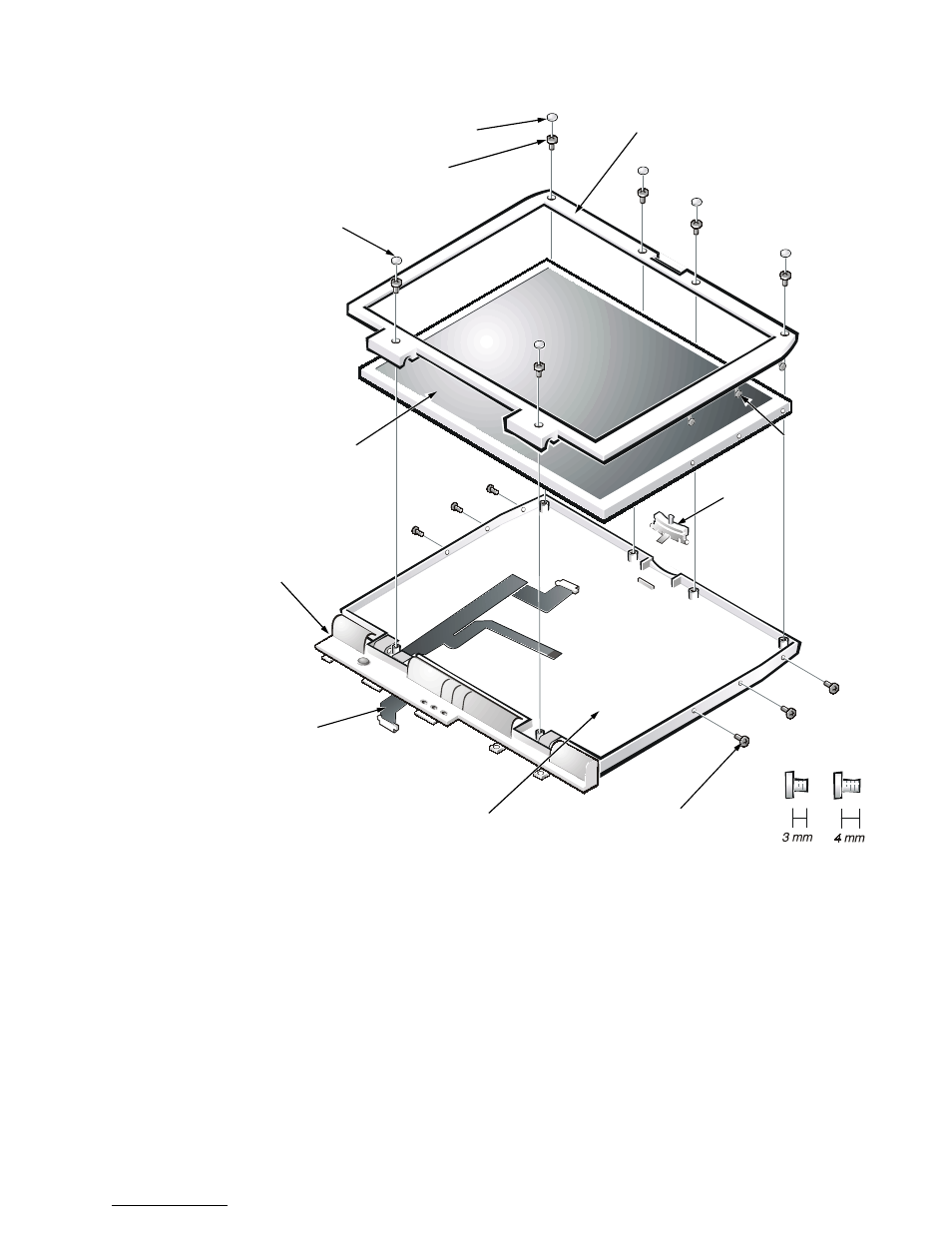

)LJXUH,QFK'LVSOD\$VVHPEO\%H]HO
5HPRYLQJWKH,QFK'LVSOD\$VVHPEO\%H]HO
1. Use a scribe to carefully pry the four rubber screw covers out of the four
screw holes located at the top of the bezel on the front of the display
assembly.
2. Remove the four 4-mm screws located at the top of the bezel on the front
of the display assembly (see Figure 14).
LCD panel
display-assembly top cover
LCD flex
cable
4-mm screws (6)
bezel
latch
rubber screw covers (4)
plastic screw
covers (2)
3-mm screws (6)
display assembly bezel
hinge cover
M2.0x3 M2.5x4
plastic tabs (6)
