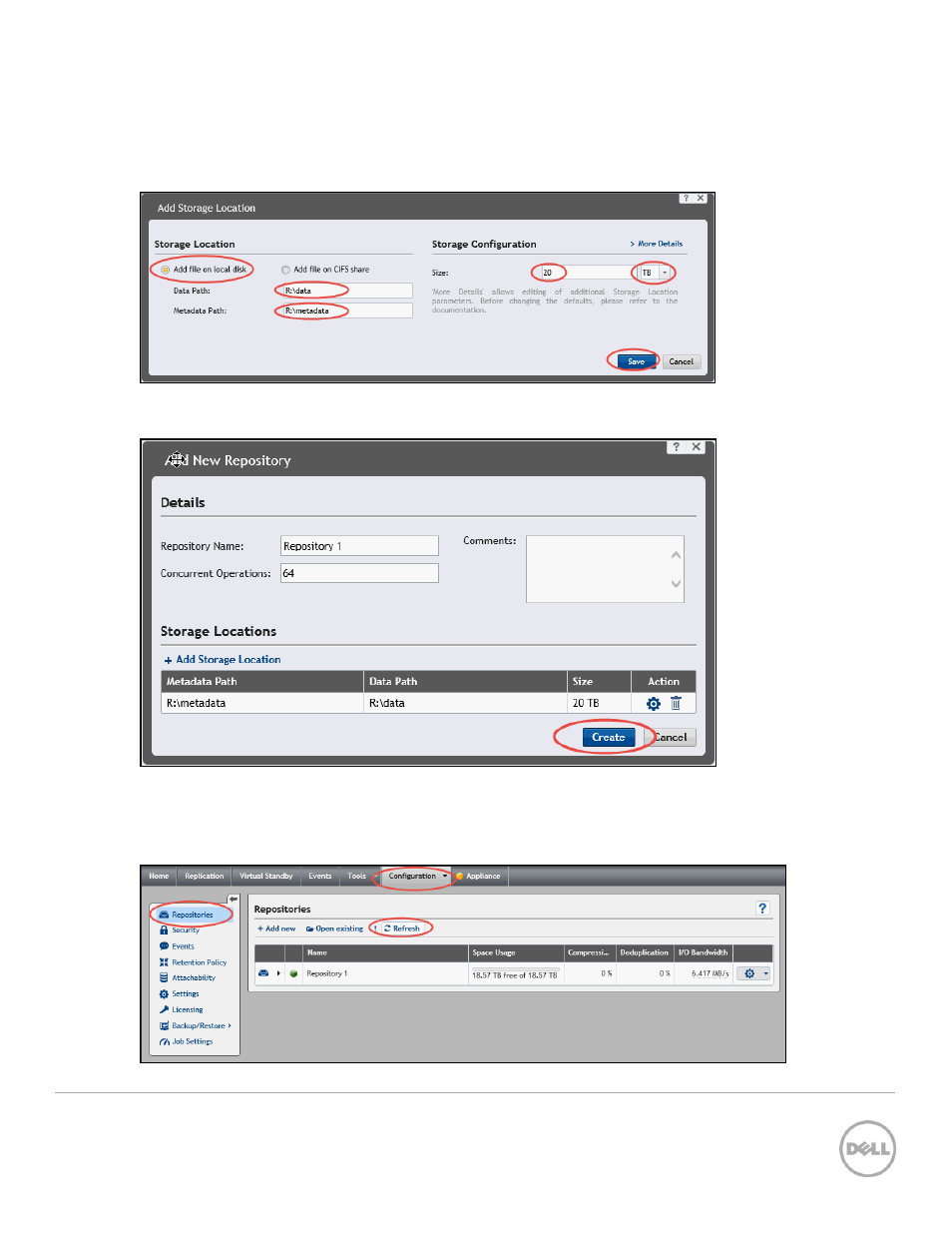

3. Select ‘Add file on local disk’. In this example, the DL4000 \Data and \Metadata folders are configured to
use the fibre channel storage identified by drive letter R: Select how much of the SAN LUN will be
consumed by the repository (20, 40, 60 or 80TB capacities). Save the configuration.
4. Select Create to add the new repository.
5. To confirm the repository has been created, select the Repository option within the Configuration tab,
and then select Refresh. When the newly added fibre channel storage repository is displayed in the
DL4000 repository list, the process of adding fibre channel storage to the DL4000 is finished.
