16

Document Classification (for non-Titus systems) | DL4XXX - Fibre Channel Implementation | Document numbers,
revision numbers, and other document identifiers can be placed in the footer.

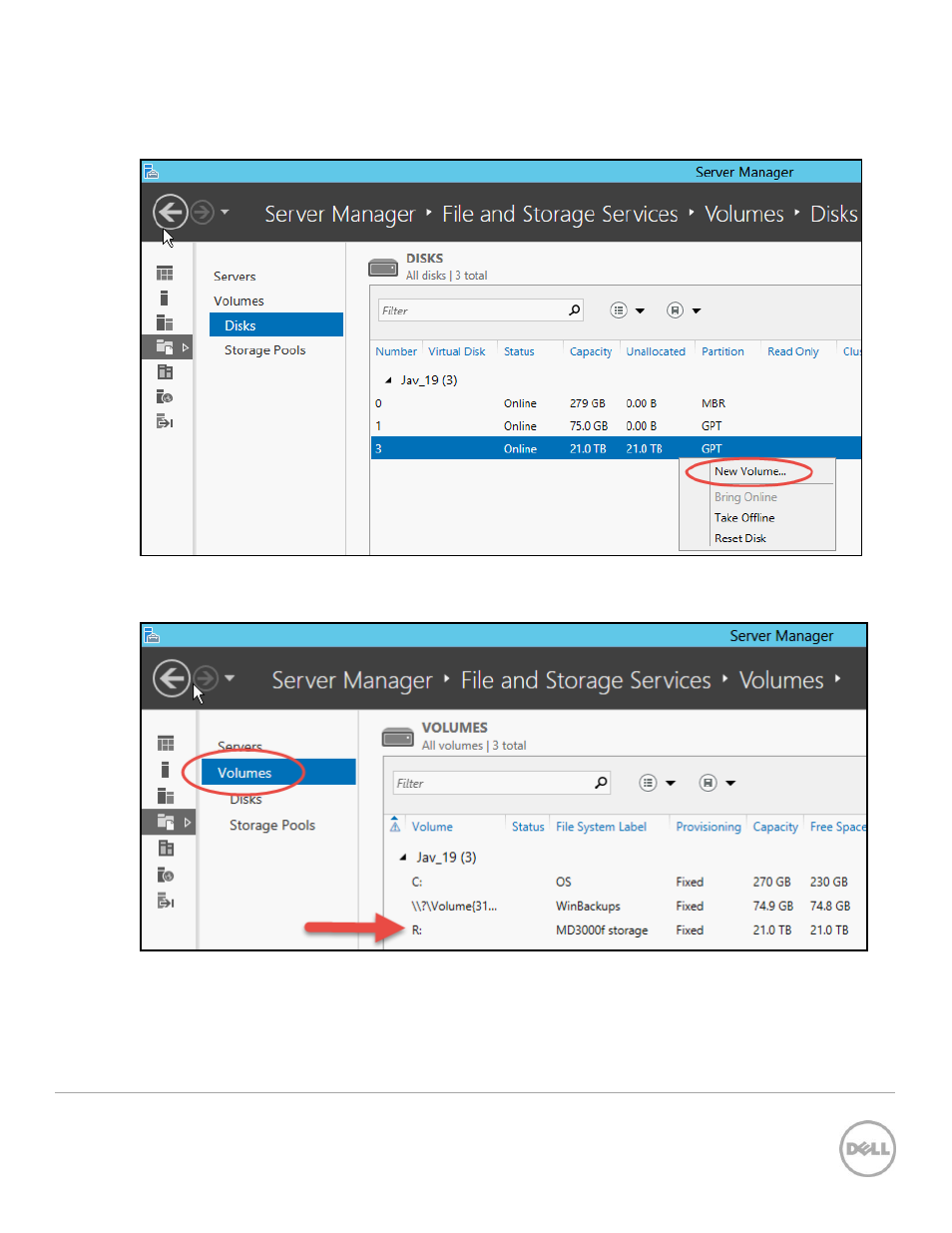

4. Right-click New Volume to launch the New Volume Wizard, and then define a drive letter for newly

assigned LUN while using the default wizard settings.

5. When the New Simple Volume Wizard has been completed, the Volumes display should look similar to the

following diagram. The mounted fibre channel volume is ready to be configured for a DL4000 repository.
