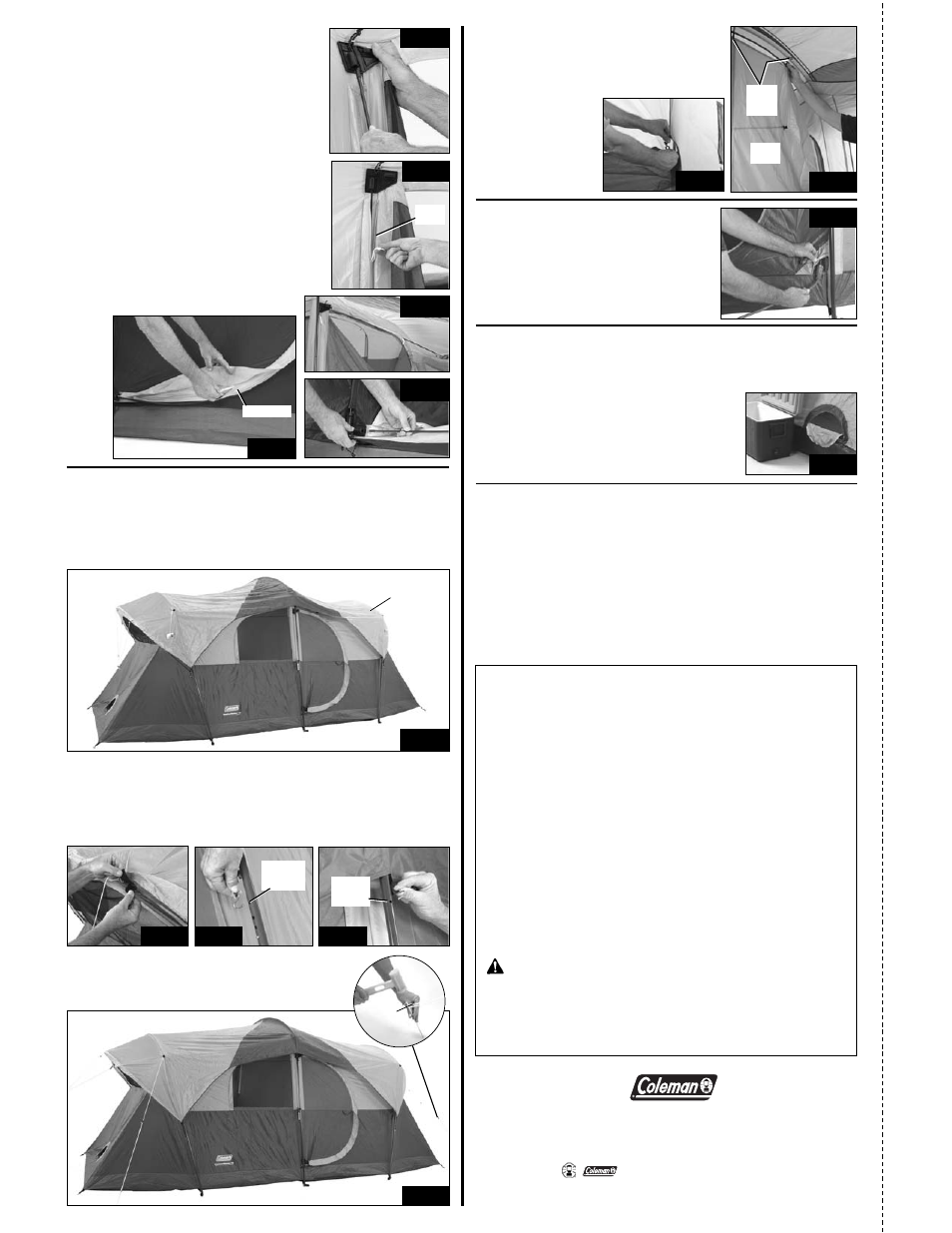

STITCH LINE
Fig. 20 Fig. 21 Fig. 19
Fig. 22
To Attach Rainfly
1. Drape Rainfly over tent. Make sure seams on Rainfly are
facing down and centered over poles of the tent. (Fig. 18)
NOTE: Hook and loop fasteners, located on seams of under -
side of rainfly, should be centered over black and gray poles.
Fig. 18
Rainfly
2. Locate all hook & loop fasteners on underside of Rainfly and
wrap around each Leg Pole and Window Vent Pole locations.
(Fig. 19)
3. Insert metal hook on elastic straps on Rainfly into the hole
on each Leg Pole. (Fig 20 & 21)
Center Leg
Pole
Location End Leg
Pole
Location
4. Loop ends of guylines over stakes, stretch
tight, then hammer into ground at an angle
as shown. (Fig. 22 & 22A)
Hinged, Rigid Door
(continued)
2. Insert end of Vertical Door Pole into
bottom hinge plate, apply pressure to
form a slight bow, then insert other tip
of pole into top hinge. Zip up vertical
sleeve. (Fig. 13 & 14)
3. Assemble Door Pole (longer black pole
with plastic cap tips); then insert into
zippered sleeve at top of door. (Fig. 15)
4. Insert end of Door Pole into top hinge
plate, apply pressure to form a bow,
then insert other tip of pole into the
bottom hinge. (Fig. 16)
5. Zip up sleeve to enclose Door Pole.
(Fig. 17)
Fig. 13
Fig. 14
Fig. 15
Fig. 16
Fig. 17
Cooler Access
The smaller zippered opening at the side of tent is designed for
added ventilation and easy access to your beverage cooler.
1. To use as a vent, unzip flap to
expose screen.
2. To use as a cooler access, unzip
other flap to make an avenue to bring
beverages into tent. (Fig. 26)
Attaching Room Divider
1. Divider Panel can be installed through
center of the tent by inserting toggles
through the
top and bottom
fabric loops as
shown.
(Fig. 23 & 24)
To Store
1. All poles and stakes must be placed in the storage bag to
prevent damage to the fabric items placed in the carry case.
2. Make sure tent is clean and dry before placing in carry case.
3. Remove rainfly, spread out on floor of tent, then unzip
door & vents before taking tent down for storage.
4. Neatly fold tent to width of pole storage bag, place on tent,
roll tightly, and place in carry case.
5. Store in a clean, dry area.
Electrical Cord Access
1. Unzip access panel in the lower
left corner of tent and bring in
electrical cord.
NOTE: Use only UL approved cords
rated for outdoor usage. (Fig. 25)
Fig. 23
Fig. 26
Fig. 25
Fig. 24
Divider
Panel
Top
Fabric
Loops
22A
Guyline
Pole Sleeve
Pole
Sleeve
Things You Should Know:
• Under certain conditions (cold weather, high humidity, etc.) condensa-
tion will form on the inside of your tent. Condensation is caused by water
vapor from your breath, perspiration, or any wet clothing inside the tent.
It is NOT LEAKAGE through the tent fabric. It can be minimized by
removing wet clothing from your tent and by providing good ventila-
tion through the tent.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off
tree limbs can cause damage to the tent fabric and its coating resulting
in leaks or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles
inside your tent. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER PULL ON
THE TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
• Tent poles should not be left telescoped together during storage.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure
to ultraviolet rays from the sun can seriously damage material and/or
cause it to become discolored.
WARNING: Keep all flame and heat sources away
from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The
fabric may burn if left in continuous contact with any flame source.
The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2008 The Coleman Company, Inc.
Coleman ® , , , and Weathermaster ® are registered trademarks of
The Coleman Company, Inc.
