Graphics Card Heatsink
22
Removing The Graphics Card Heatsink
1. Follow the procedures in Before Working On Your Computer
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical drive .
7. Remove the hard drive .
8. Remove the CPU fan .
9. Remove the palm rest .
10. Remove the CPU heatsink .
11. Disconnect any antennas connected to installed wireless solutions.

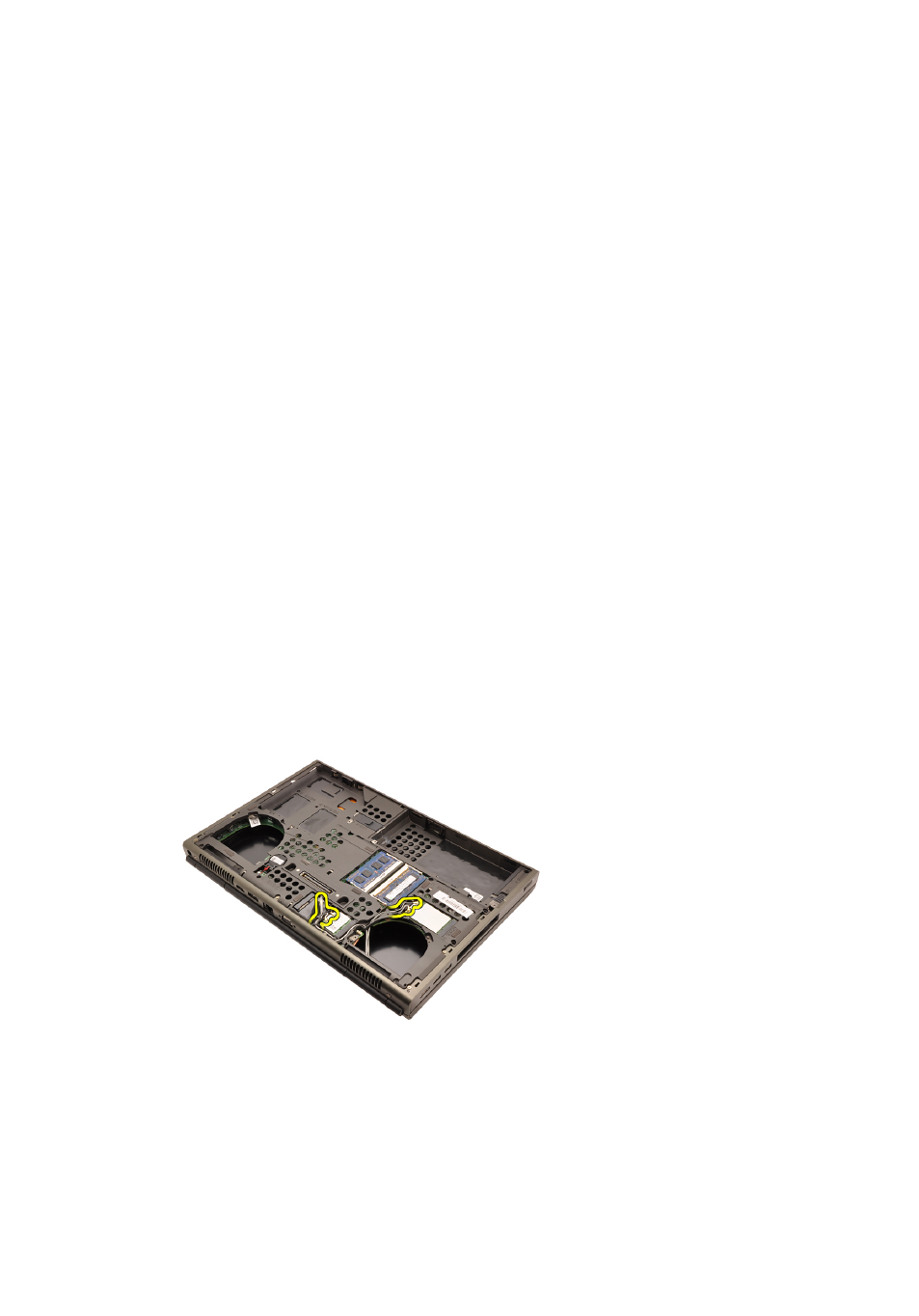

12. Remove the antennas from the routing channels.
