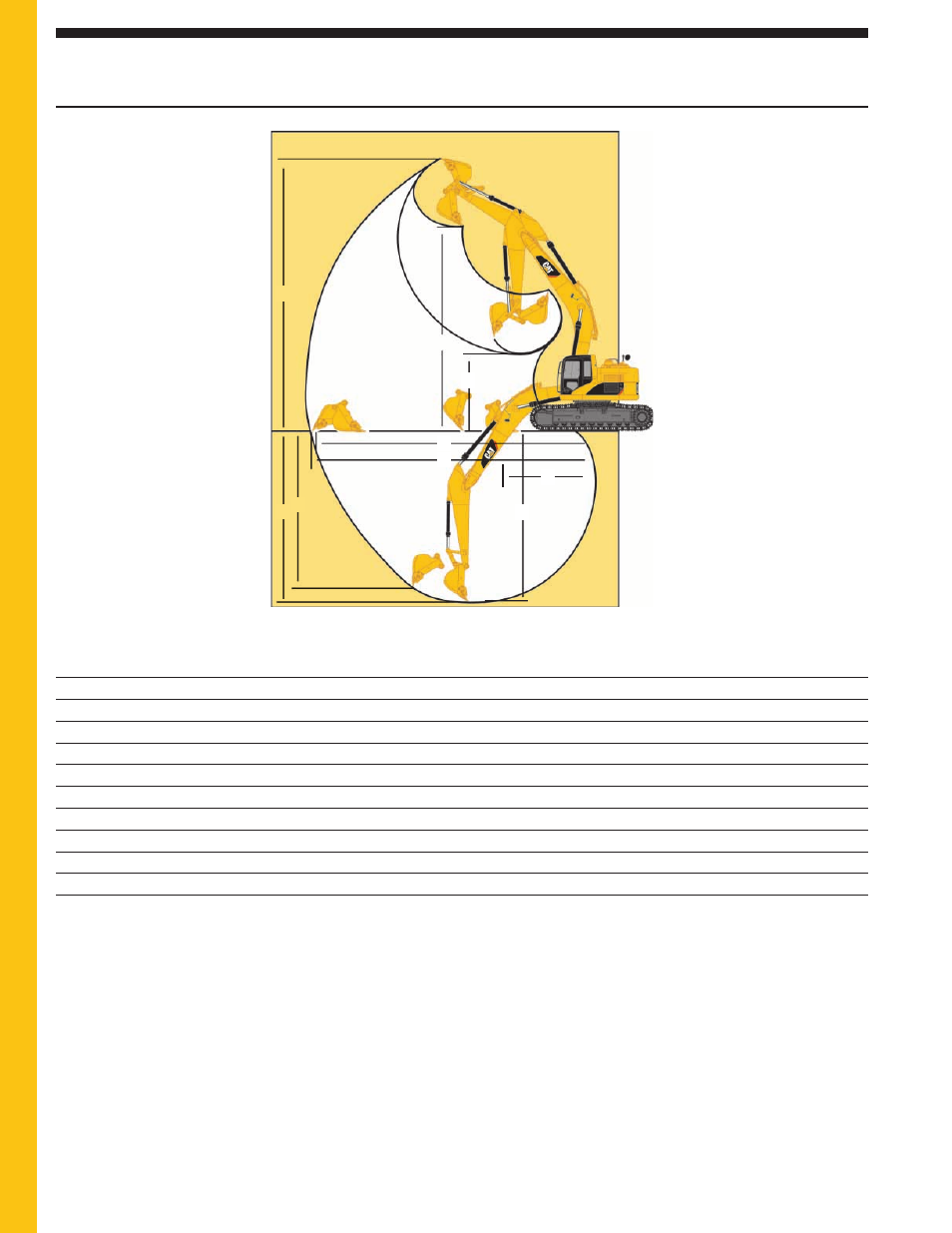

Working Ranges
Boom Reach Reach
6.15 m (20'2") 6.15 m (20'2")
Stick Length R3.2CB2 m (10'6") R2.65CB2 m (8'8")
Bucket HD 1.2 m 3 (1.57 yd 3 ) HD 1.2 m 3 (1.57 yd 3 )
1 Maximum Digging Depth 6920 mm (22'8") 6370 mm (20'11")
2 Maximum Reach at Ground Level 10 560 mm (34'8") 10 080 mm (33'1")
3 Maximum Loading Height 8040 mm (26'5") 7820 mm (25'8")
4 Minimum Loading Height 2990 mm (9'10") 3560 mm (11'8")
5 Maximum Vertical Wall Digging Depth 6260 mm (20'6") 5730 mm (18'10")
6 Minimum Front Swing Radius 3400 mm (11'2") 3380 mm (11'1")
7 Maximum Reach 10 770 mm (35'4") 10 310 mm (33'10")
8 Maximum Cutting Height 11 110 mm (36'5") 10 910 mm (35'10")
9 Maximum Depth Cut for 2440 mm (8') Level Bottom 6760 mm (22'2") 6190 mm (20'4")
16 328D LCR Hydraulic Excavator specifications
