15 328D LCR Hydraulic Excavator specifications

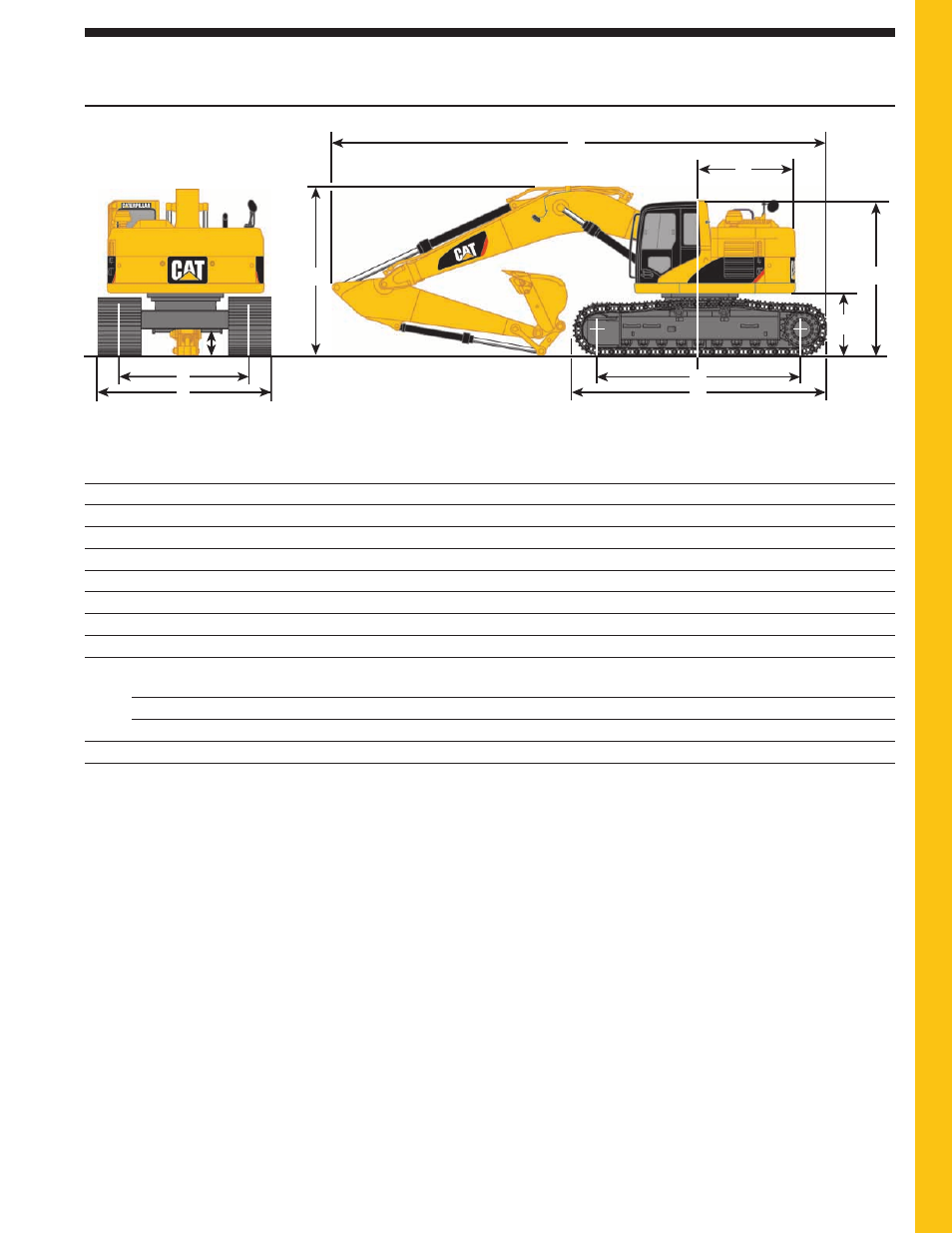

Dimensions
All dimensions are approximate.
Boom Options Reach Reach
6.15 m (20'2") 6.15 m (20'2")
Stick Options R3.2CB2 m (10'6") R2.65CB2 m (8'8")
1 Shipping Height 3370 mm (11'1") 3400 mm (11'2")
2 Shipping Length 9820 mm (32'3") 9830 mm (32'3")
3 Tail Swing Radius 1900 mm (6'3") 1900 mm (6'3")
4 Length to Center of Idler and Sprocket 4040 mm (13'3") 4040 mm (13'3")
5 Track Length 5020 mm (16'6") 4860 mm (16'6")
6 Ground Clearance 510 mm (1'8") 510 mm (1'8")
7 Track Gauge 2590 mm (8'6") 2590 mm (8'6")
8 Transport Width
850 mm (34") shoes 3440 mm (11'3") 3440 mm (11'3")
700 mm (28") shoes 3290 mm (10'10") 3290 mm (10'10")
600 mm (24") shoes 3190 mm (10'6") 3190 mm (10'6")
9 Cab Height 3190 mm (10'0") 3190 mm (10'0")
10 Counterweight Clearance 1200 mm (3'11") 1200 mm (3'11")
Note: All numbers are approximate.
6
3
7
1
2
5
4
8
9
10
