System Components
Dell™ Latitude™ X1 Service Manual
Back to Contents Page
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: Unless otherwise noted, each procedure in this document assumes that a part can be replaced or, if purchased separately, installed by
performing the removal procedure in reverse order.

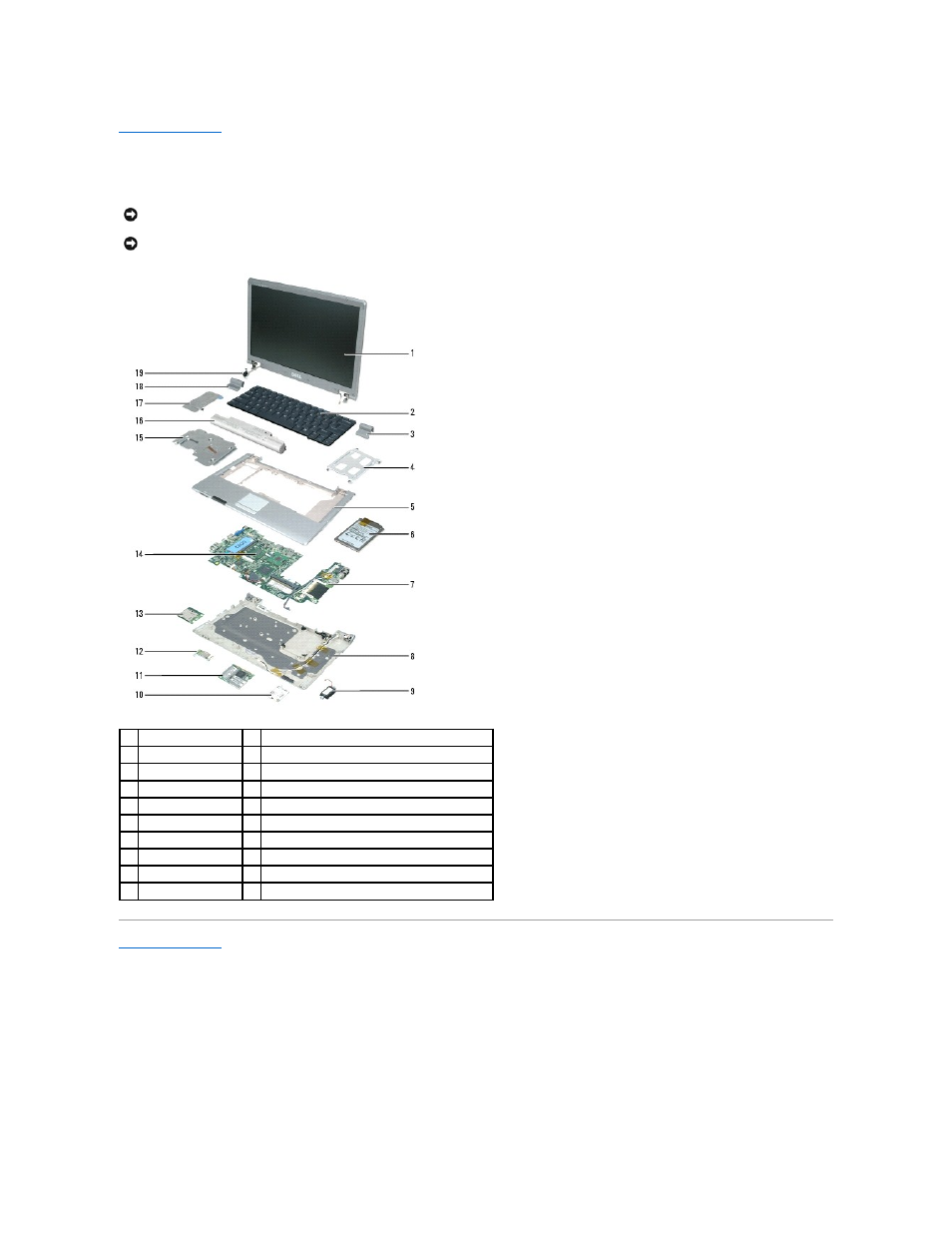

1 display assembly 11 Mini PCI card
2 keyboard 12 internal card with Bluetooth® wireless technology
3 right-side hinge cover 13 Secure Digital card reader
4 hard drive cage 14 microprocessor
5 palm rest 15 thermal-cooling assembly
6 hard drive 16 battery
7 system board 17 DIMM memory shield
8 computer base 18 left-side hinge cover
9 speaker 19 display cable
10 modem
