Display Assembly
Dell™ Latitude™ X1 Service Manual
Display Assembly
1.
Follow the instructions in "
Preparing to Work Inside the Computer
."
2.
Remove the
keyboard
.
3.
Remove the
hinge covers
.
4.
Close the display and turn the computer upside down.
5.

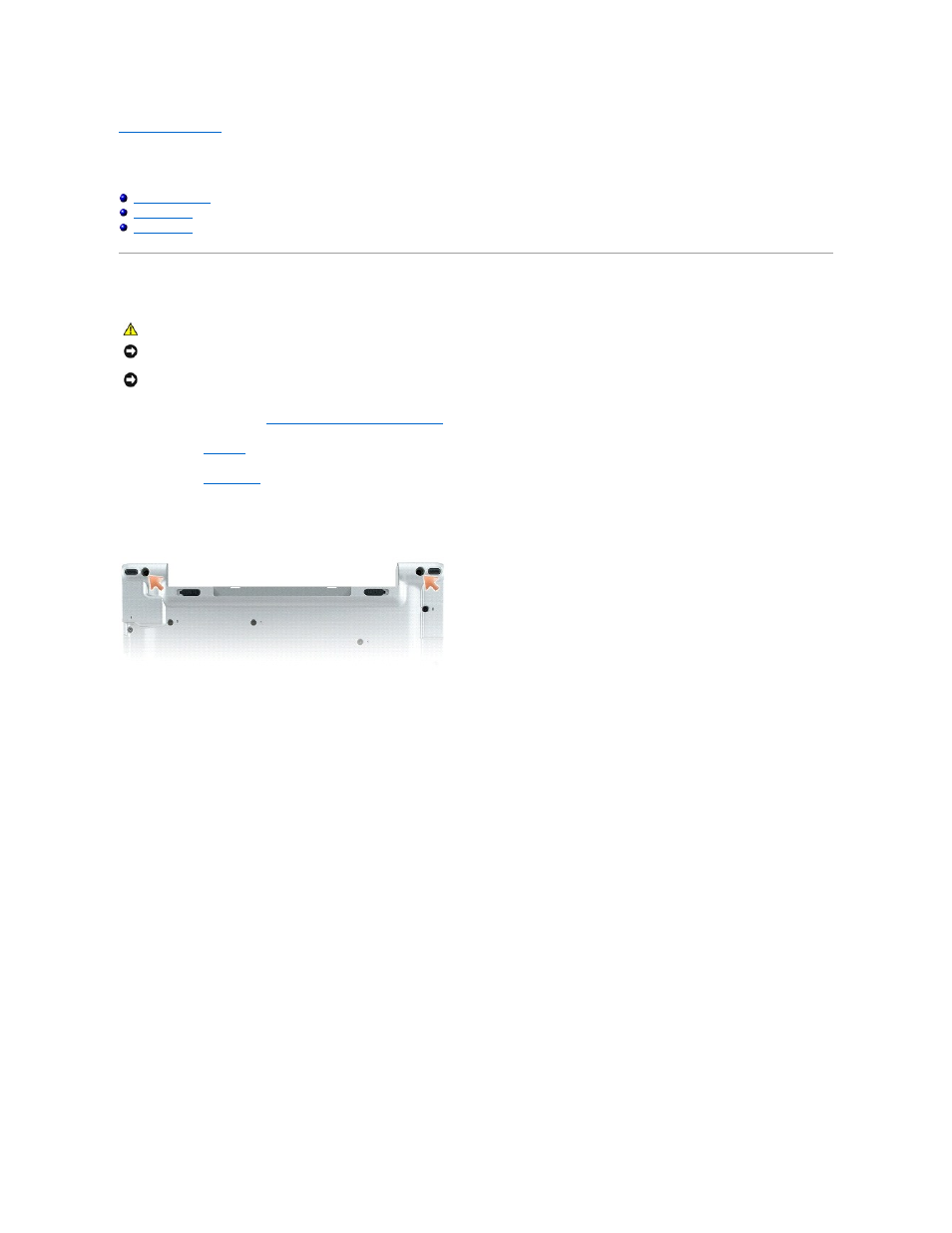

Remove the two screws labeled "D" from the bottom of the computer.
6.
Turn the computer top-side up and open the display.
7.
Remove the two M2 x 5.5-mm screws from the hinges.
8.
Remove the captive display-cable ground screw (if present).
9.
Disconnect the display cable using the pull-tab, and release the cable from the cable-routing guides.
10.
Disconnect the two antenna-cable connectors.
11.
Lift the display straight out of the computer base.
CAUTION:
Before performing the following procedures, read the safety instructions in your Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE:
You must remove the display assembly before you remove the palm rest.
