Hinge Covers
Dell™ Latitude™ E6500 Service Manual
Removing the Hinge Covers
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the
Regulatory Compliance Homepage at: www.dell.com/regulatory_compliance.
The hinge covers are not interchangeable; the left one covers the Multimode DisplayPort, and the right one covers the RJ-45 network connector.
1.
Follow the procedures in
Before Working on Your Computer
.
2.
Close the display and turn the computer over.
3.
Remove the two M2.5 x 5-mm screws from the hinge covers.
4.
Slide each hinge cover off the computer and lift to remove it.
Replacing the Hinge Covers
1.
Slide the left hinge cover over the Multimode DisplayPort and slide the right hinge cover over the RJ-45 network connector.
2.
Replace the two M2.5x5-mm screws in each hinge cover.
Back to Contents Page

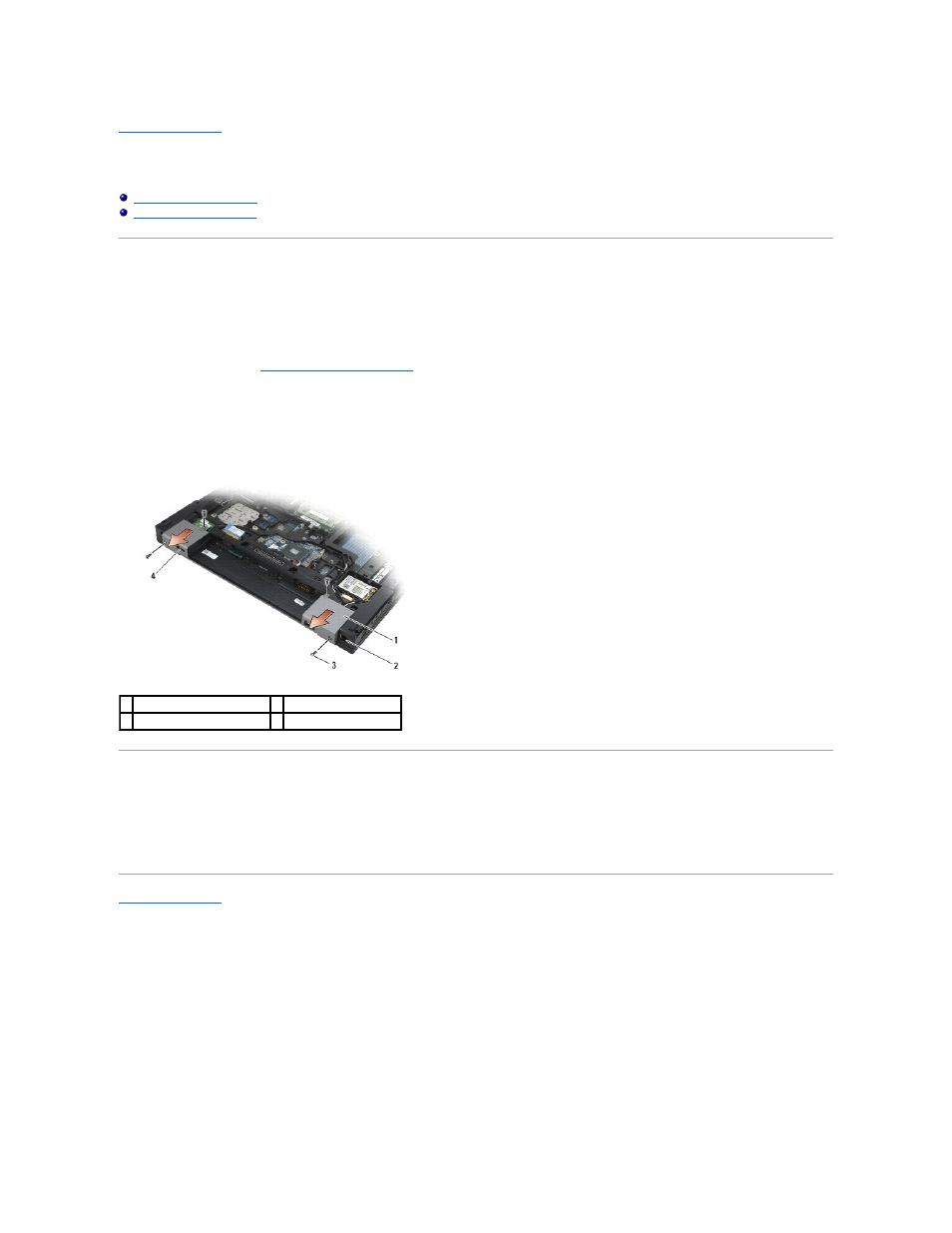

1 hinge covers
2 RJ-11 network connector
3 M2.5 x 5-mm screws (2 each) 4 Multimode DisplayPort
