Replacing the palm rest – Dell Latitude C840 User Manual
Page 23
8.
Turn the computer over.
9.
Use the pull loop to disconnect the palm-rest flex cable from the touch-pad connector on the system board.
10.
On the left and right sides of the palm rest, use a flat-blade scribe between the palm rest and the bottom case of the computer to separate the snaps
that secure the palm rest to the bottom case.
11.
Lift out the palm rest.
Replacing the Palm Rest
When replacing the palm rest screws, install the two screws at the back corners of the computer first to help align the palm rest correctly.
Back to Contents Page

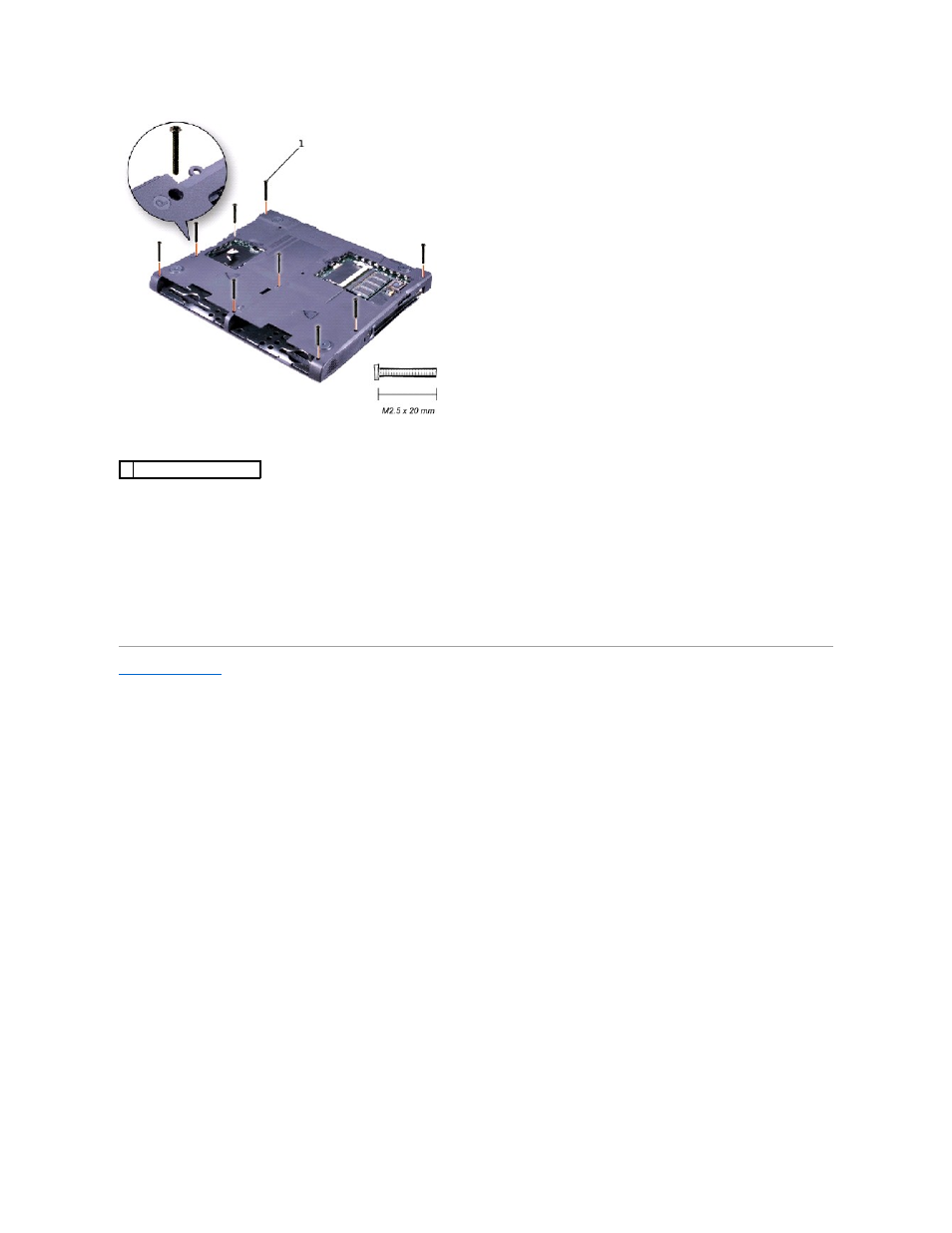

1 M2.5 x 20-mm screws (9)
