Replacing the Display Panel
1. Connect the flex cable to the two connectors on the back of the display panel.
2. Place the display panel in the top cover, taking care that the flex cable is in place and is not crushed or crimped.
3. Reinstall the M2.5 x 4-mm screw that secures the flex-cable mounting bracket to the top cover.
4. Starting on the left side, use a magnetic screwdriver to reinstall the six M2 x 3-mm screws that secure the display panel in the top cover.
5. Reinstall the M2.5 x 6-mm flex-cable strain relief screw, and reconnect the flex cable to the graphics card.
6. Reinstall the display bezel.

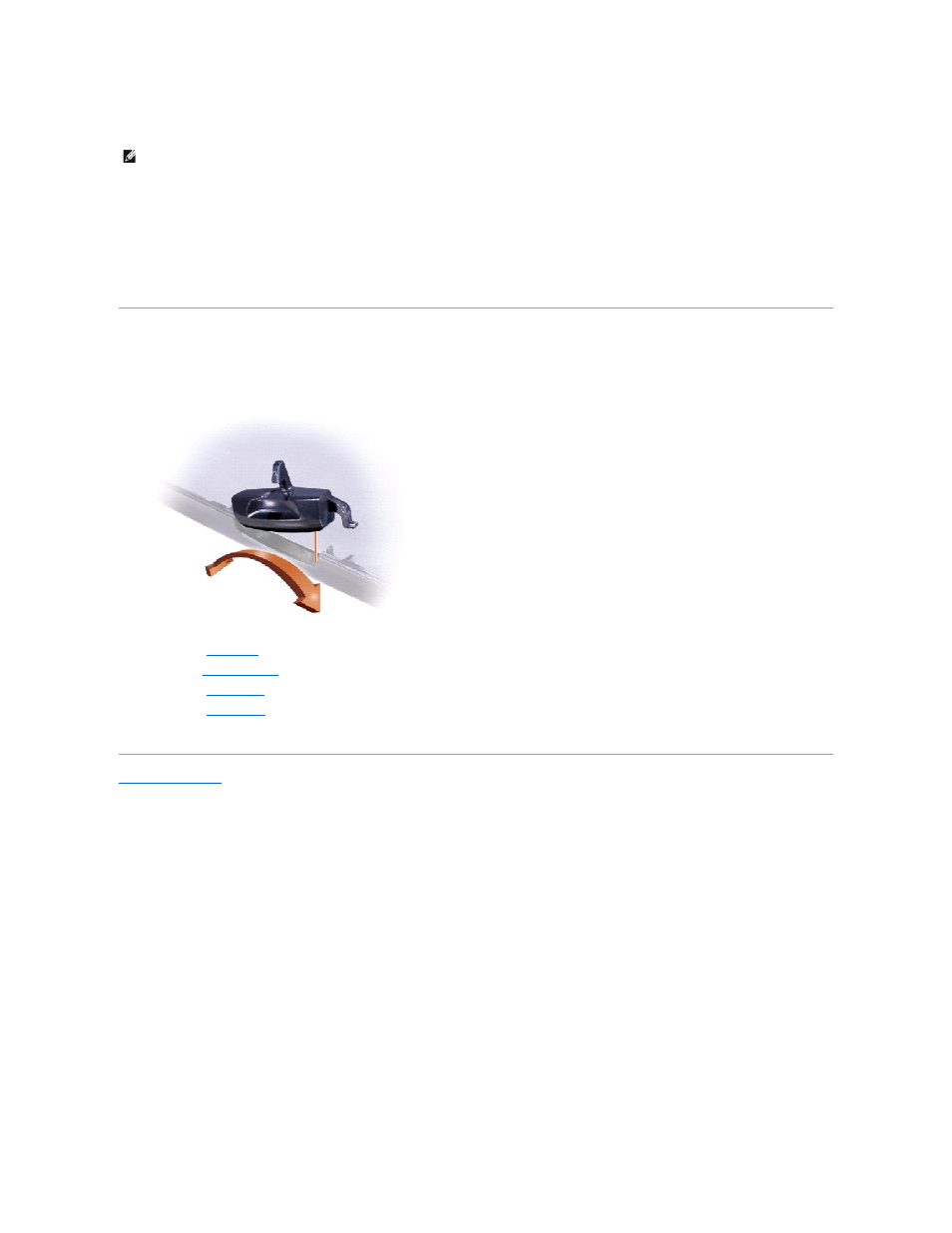

Display Latch
1. Remove the hinge cover .
2. Detach the display flex cable from the strain relief and the graphics card.
3. Remove the display bezel .
4. Remove the display panel from the top cover.
5. Remove the display latch by disengaging the latch and captive spring.
Back to Contents Page
NOTE: Use a magnetic screwdriver to reassemble the display panel in the display.
