18

Operating System Reinstallation

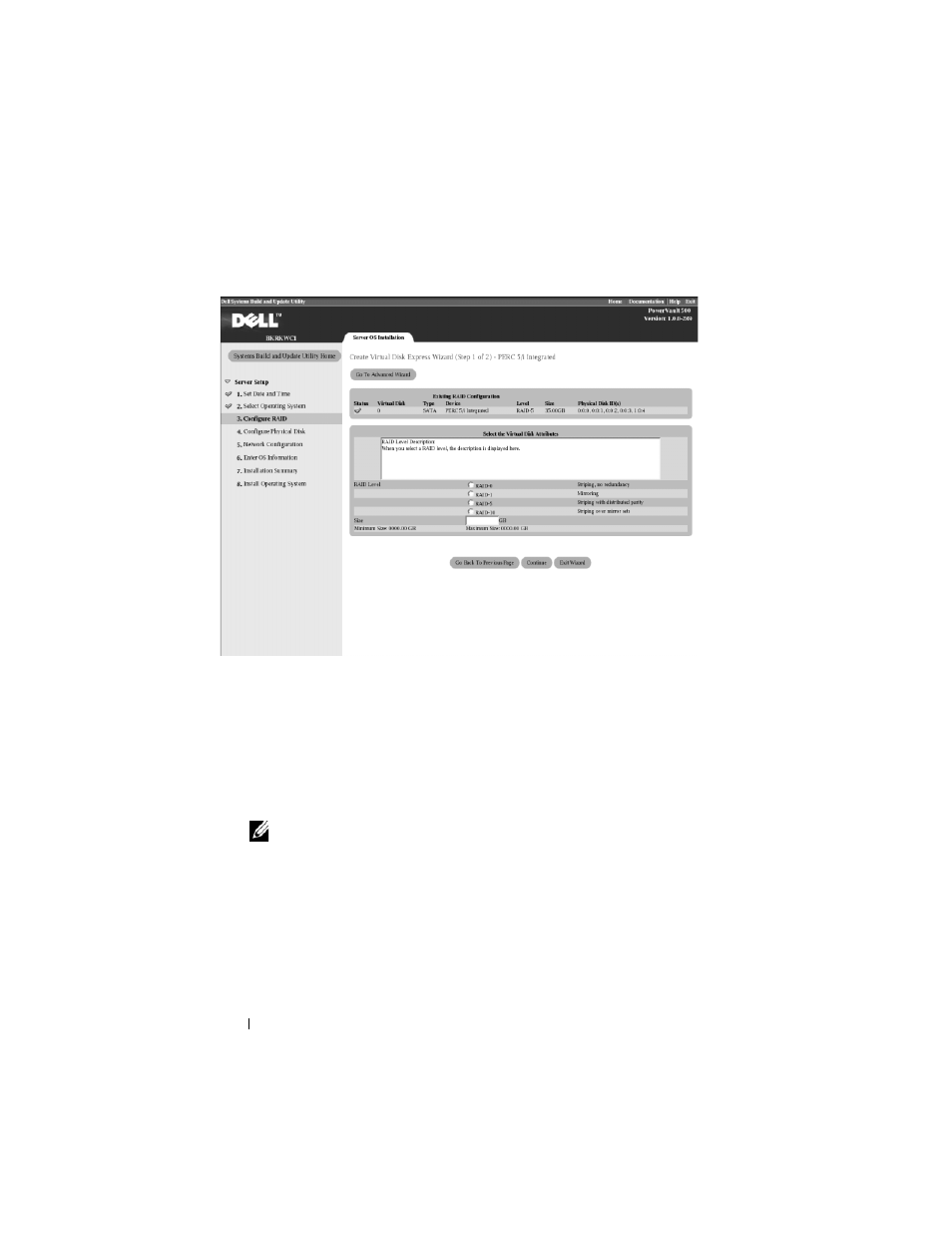

Figure 4-3.

Create Virtual Disk Express Wizard (Step 1 of 2)

c

When the Create Virtual Disk Advanced Wizard (Step 1 of 4) screen
appears, select the RAID-5 option and click Continue.

d

In the Create Virtual Disk Advanced Wizard (Step 2 of 4) screen (see
Figure 4-4), select all the physical disks displayed for Connector 0 by
the internal PERC adapter. Click Continue.

e

Select the Connector 1 button and select all the physical disks
displayed by the PERC adapter. Click Continue.

NOTE:

If you plan to allocate a global hot spare, leave one disk de-selected

for that purpose.
