Replacing the camera and microphone assembly – Dell Inspiron 1720 (Mid 2007) User Manual
Page 31

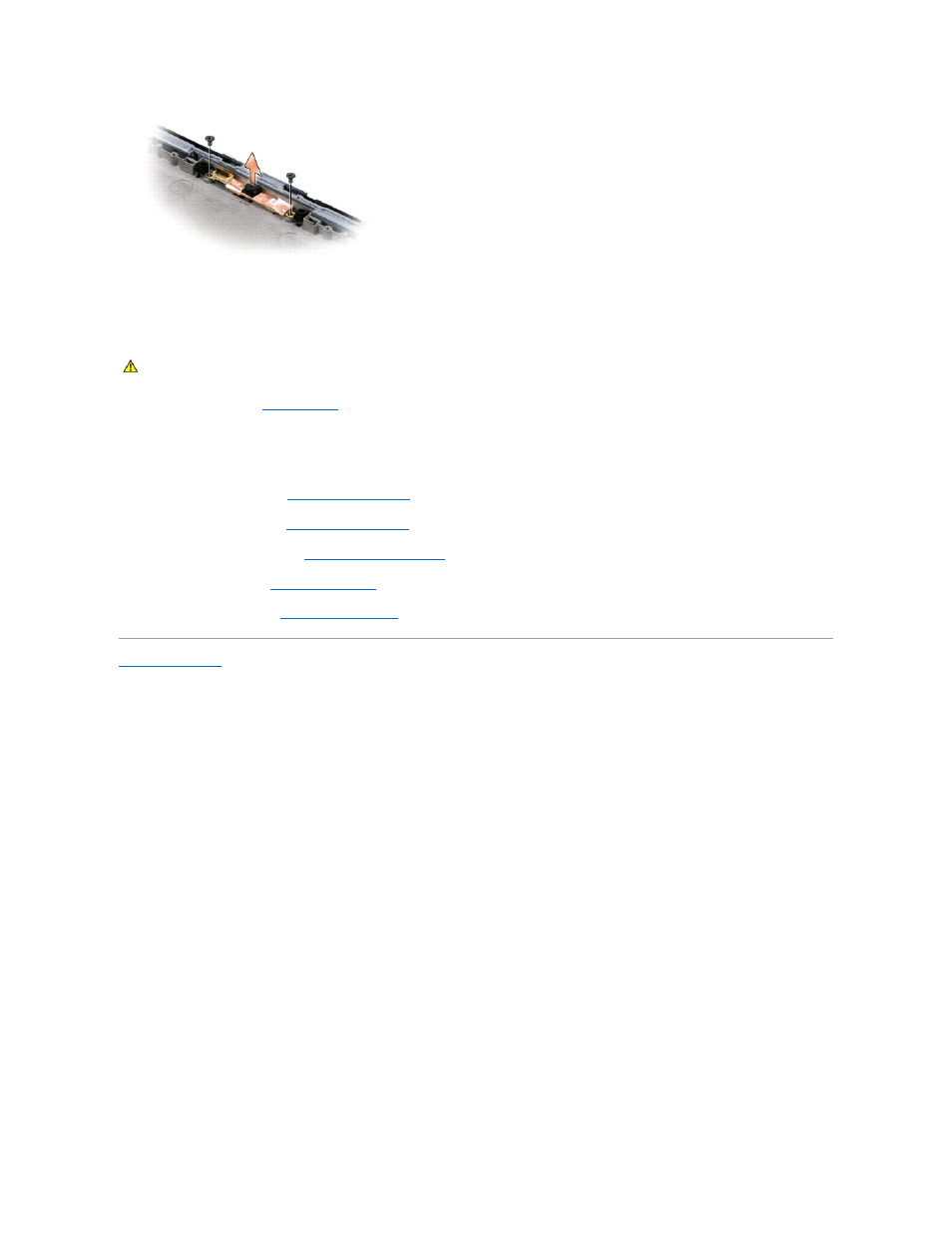

Replacing the Camera and Microphone Assembly
1.
Follow the instructions in
Before You Begin
.
2.
Align the screw holes in the camera and microphone assembly with the screw holes in the display cover, then lower the assembly into place.
3.
Replace the two M2 x 3-mm screws and secure the camera and microphone assembly to the display cover.
4.
Replace the display panel (see
).
5.
Replace the display bezel (see
).
6.
Replace the display assembly (see
Replacing the Display Assembly
7.
Replace the keyboard (see
Replacing the Keyboard
).
8.
Replace the hinge cover (see
Replacing the Hinge Cover
).
Back to Contents Page
CAUTION:
Before you begin the following procedure, follow the safety instructions in the Product Information Guide.
