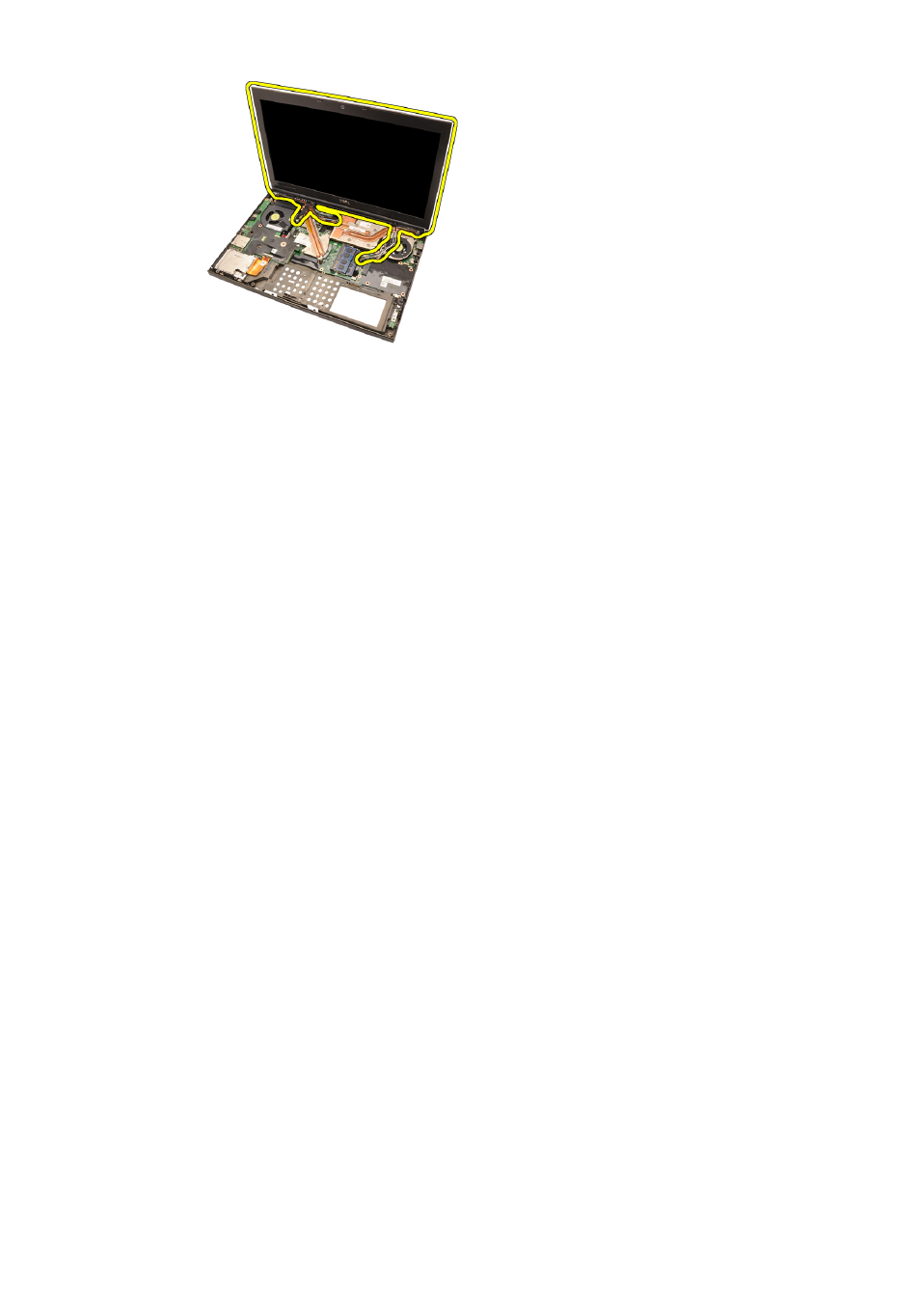

Installing The Display Assembly
1. Attach the display assembly to the base of the computer.
2. Tighten the screws on the display assembly securing it in place.
3. Tighten the screws on the rear of the system securing the display assembly
in place.
4. Tighten the screws on the bottom of the system securing the display
assembly in place.
5. Connect the camera cable to the system board.
6. Connect the low-voltage differential signaling LVDS cable to the system
board and tighten the captive screws securing the LVDS cable in place.
7. Push the antennas through the opening to the bottom of the computer.
8. Secure the antennas to the routing channels.
9. Connect antennas to installed wireless solutions.
10. Install the
palm rest .
11. Install the secondary hard drive .
12. Install the primary hard drive .
13. Install the optical drive; .
14. Install the keyboard .
15. Install the keyboard trim .
16. Install the base cover .
17. Install the battery .
18. Follow the procedures in After Working Inside Your Computer .
