Dell Precision M6600 (Mid 2011) - Manual (Page 60)

Installing The Processor

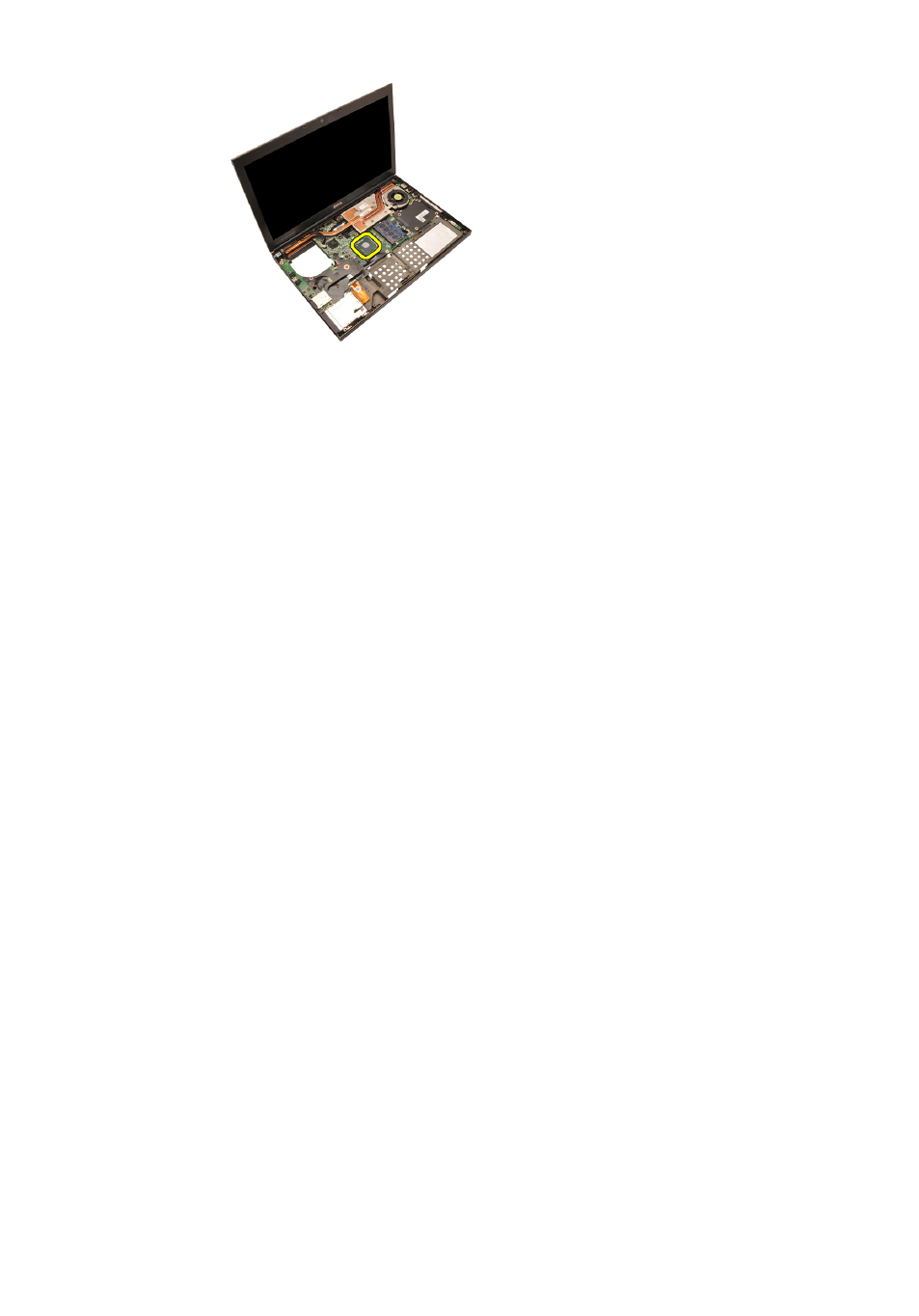

1. Insert the processor into the processor socket. Ensure that the processor is
properly seated.
2. Tighten the cam lock in a clockwise direction to the locked position.
3. Install the
CPU heatsink .
4. Install the palm rest .
5. Install the CPU fan .
6. Install the secondary hard drive .
7. Install the primary hard drive .
8. Install the optical drive; .
9. Install the keyboard .
10. Install the keyboard trim .
11. Install the base cover .
12. Install the battery .
13. Follow the procedures in After Working Inside Your Computer .
60
