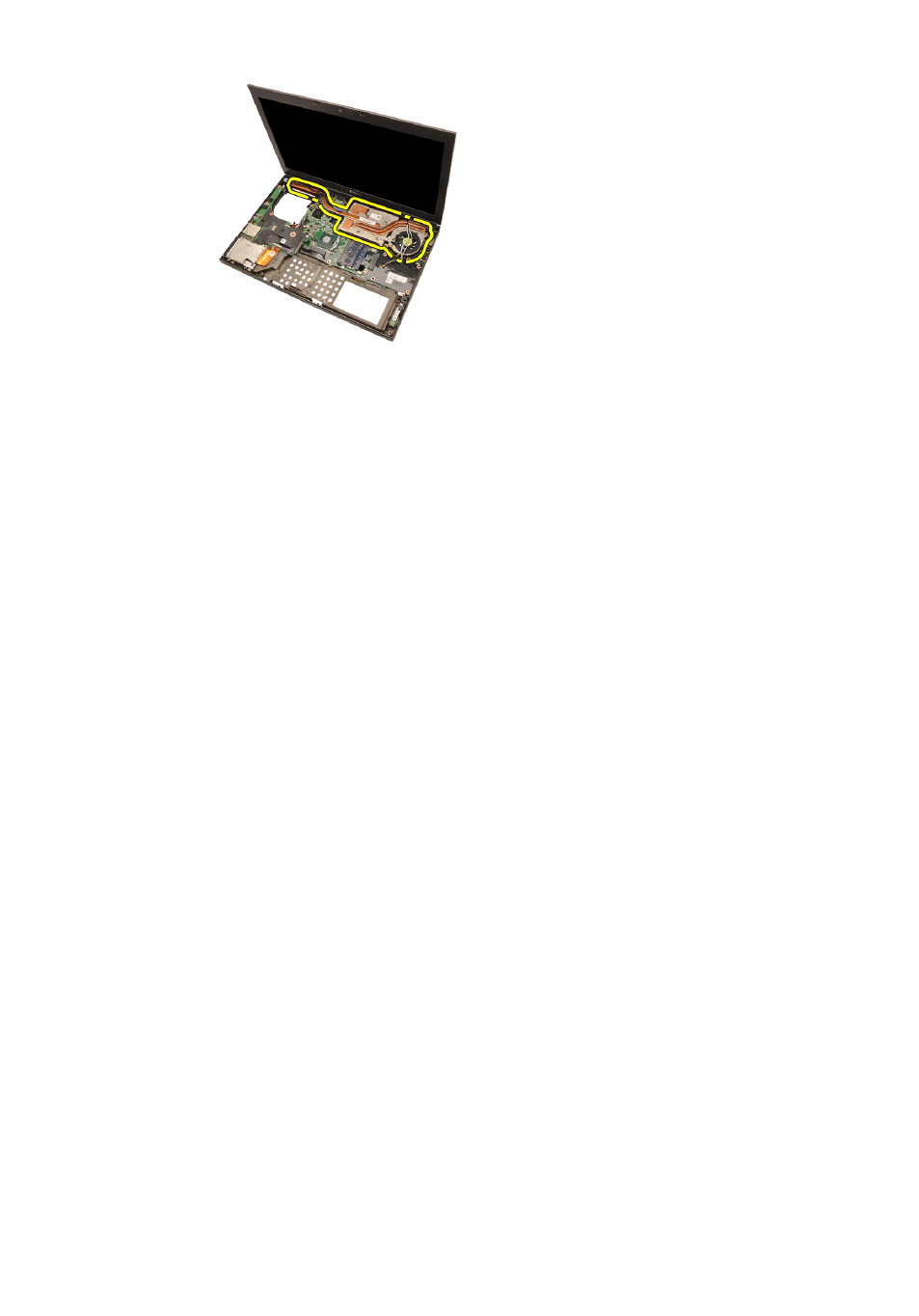

Installing The Graphics Card Heatsink
1. Locate the heatsink compartment on the computer.
2. Tighten the captive screws (1 > 2 > 3). Ensure the heatsink is properly
aligned and seated over the graphics processor.
3. Tighten the screw securing the graphics card heatsink in place.
4. Connect the graphics card fan cable.
5. Push the antennas through the opening to the bottom of the computer.
6. Secure the antennas to the routing channels.
7. Connect the antennas to the installed wireless slots.
8. Install the CPU heatsink .
9. Install the palm rest .
10. Install the CPU fan .
11. Install the secondary hard drive .
12. Install the primary hard drive .
13. Install the optical drive .
14. Install the keyboard .
15. Install the keyboard trim .
16. Install the base cover .
17. Install the battery .
18. Follow the procedures in After Working Inside Your Computer .
64
