Dell Precision M6600 (Mid 2011) - Manual (Page 77)

Display Assembly
27

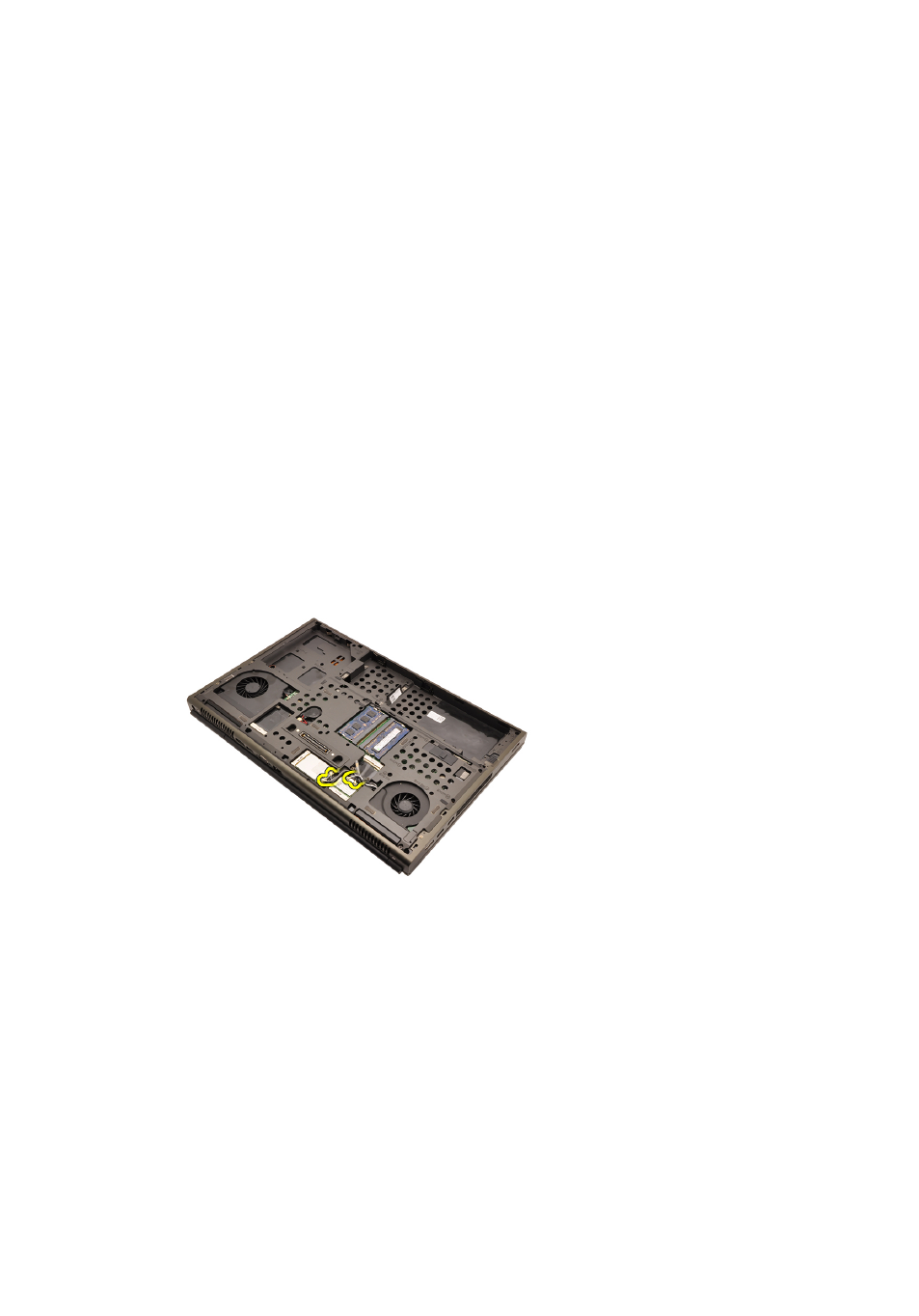

Removing The Display Assembly
1. Follow the procedures in Before Working On Your Computer
2. Remove the battery .
3. Remove the base cover .
4. Remove the keyboard trim .
5. Remove the keyboard .
6. Remove the optical drive .
7. Remove the primary hard drive .
8. Remove the secondary hard drive .
9. Remove the palm rest .
10. Disconnect any antennas connected to installed wireless solutions.
11. Remove the antennas from the routing channels.
77
