6.3.1.7 Scenario 5: Backup to different IP’s on a single DR appliance
Michelle is in Los Angeles and has a Netbackup media server that she wishes to have backed up to her DR appliance via
different IP addresses. Her appliance is running an older firmware and needs to be upgrade to the 2.1.
Michelle will need to do the following to accomplish her goals:
• Upgrade the DR to firmware to 2.1.
• Set the media server to use the two interfaces of the DR appliance.
The DR4100 will be configured as follows:
• 1G interfaces are not exposed pre 2.1 firmware upgrade
• Bond0 will contain 2x10G interfaces
• 2x1G interfaces not bonded

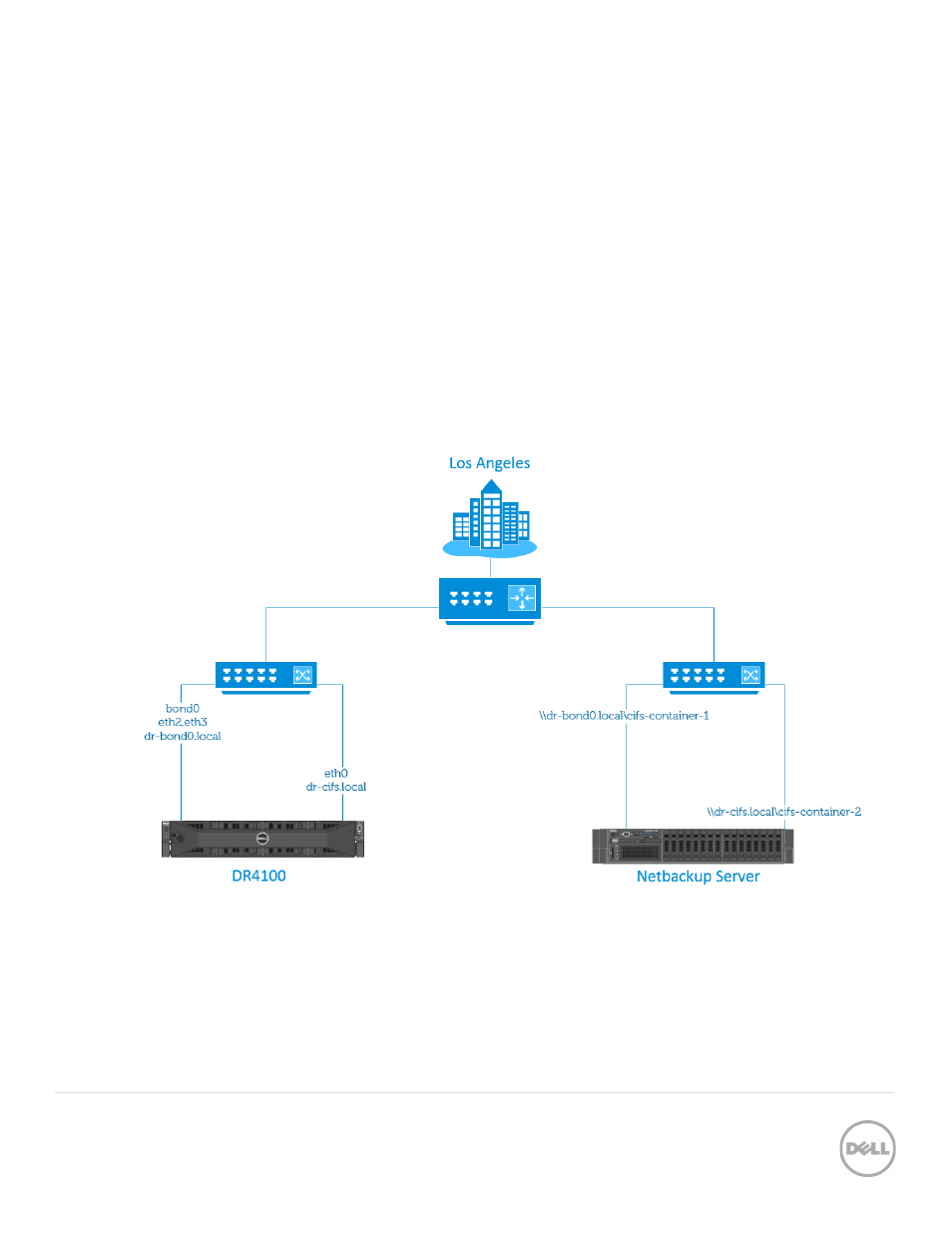

Figure 7 Scenario 5 topology
